Maximizing availability has never been this easy
Simplify and centralize your data management infrastructure with Synology SA3200D. Storage controller redundancy powered by Synology High Availability automatically minimizes downtime to under a minute, delivering outstanding cost effectiveness in just a 2U footprint.
- NAS Storage System is the single answer to all your desired storage needs
- Robust scalability up to 12 drives to let you expand limitlessly
- Through RAID levels (0, 1, 5, 6, 10, basic, jbod, raid f1), RAID provides data reliability, fault tolerance and improves overall performance
- DDR4 SDRAM memory technology for dependable data storage with maximum usability
- Holds 12 HDDs for up to 192 tb of storage
- 192 TB total solid state drive capacity support for spacious storage with much faster data transfer speed than standard hard drives
- Experience unmatched performance, built-in security and remote management capabilities with Intel Xeon 2.40 ghz processor
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable nas storage system allows easy and convenient usage without any trouble
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
| Brand | |
|---|---|
| Brand | Synology |
| CPU / Processor | |
|---|---|
| Processor Type | Xeon |
| Processor Model | D-1521 |
| Number of Processors Installed | 1 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 2.40 GHz |
| Memory / RAM | |
|---|---|
| Standard Memory | 8 GB |
| Memory Technology | DDR4 SDRAM |
| Storage | |
|---|---|
| RAID Levels | 0 , 1 , 5 , 6 , 10 , JBOD , Basic , RAID F1 |
| Number of Solid State Drive I | 0 |
| Number of Hard Drives Install | 0 |
| Number of Hard Drives Support | 12 |
| Total Solid State Drive Capacity | 192 TB |
| RAID Supported | Yes |
| Total Hard Drive Capacity Supported | 192 TB |
| Power & Battery | |
|---|---|
| Number of Power Supplies Inst | 2 |
| Redundant Power Supply | Yes |
| Maximum Power Supply Wattage | 500 W |
| Networking & Connectivity | |
|---|---|
| Protocols | NFSv3 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 3 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| General Features | |
|---|---|
| Number of Controllers | 2 |
| Controller Type | Serial Attached SCSI (SAS) |
| Manufacturer | Synology, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | PCI Express 3.0 x8 |
| Drive Bays | |
|---|---|
| Number of Solid State Drive S | 12 |
| Number of Total Expansion Bays | 12 |
| Number of 2.5"/3.5" Bays | 12 |
| Miscellaneous | |
|---|---|

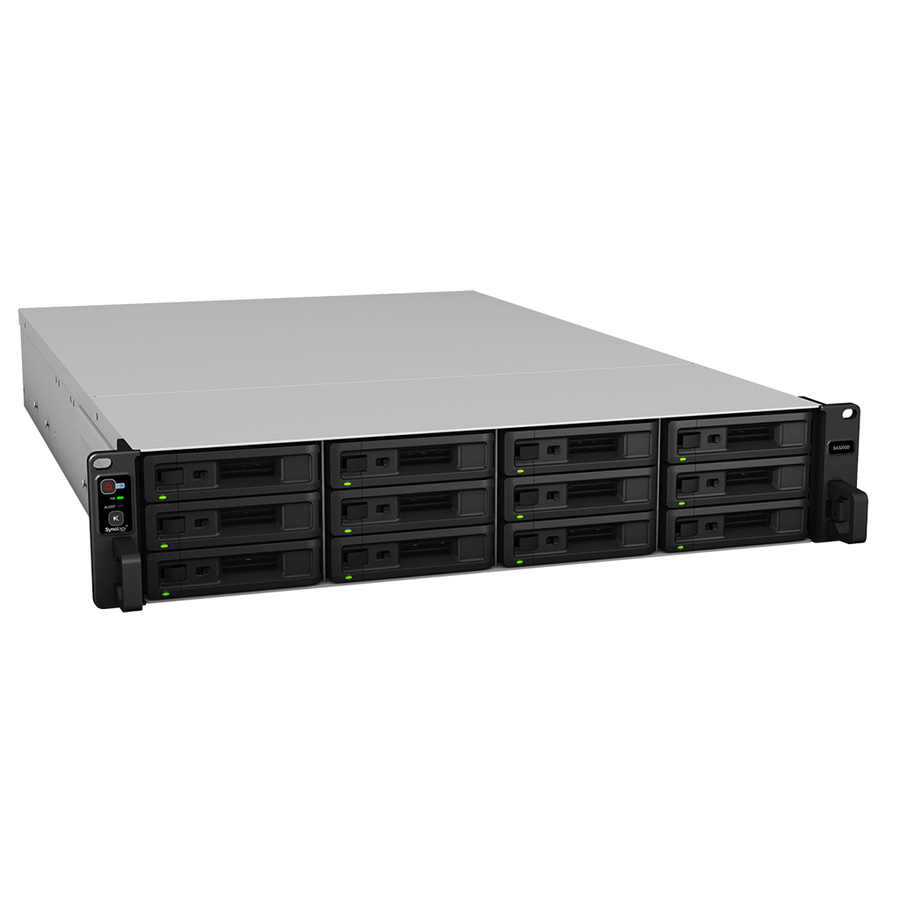

| Product Name | SA3200D SAN/NAS Storage System |
