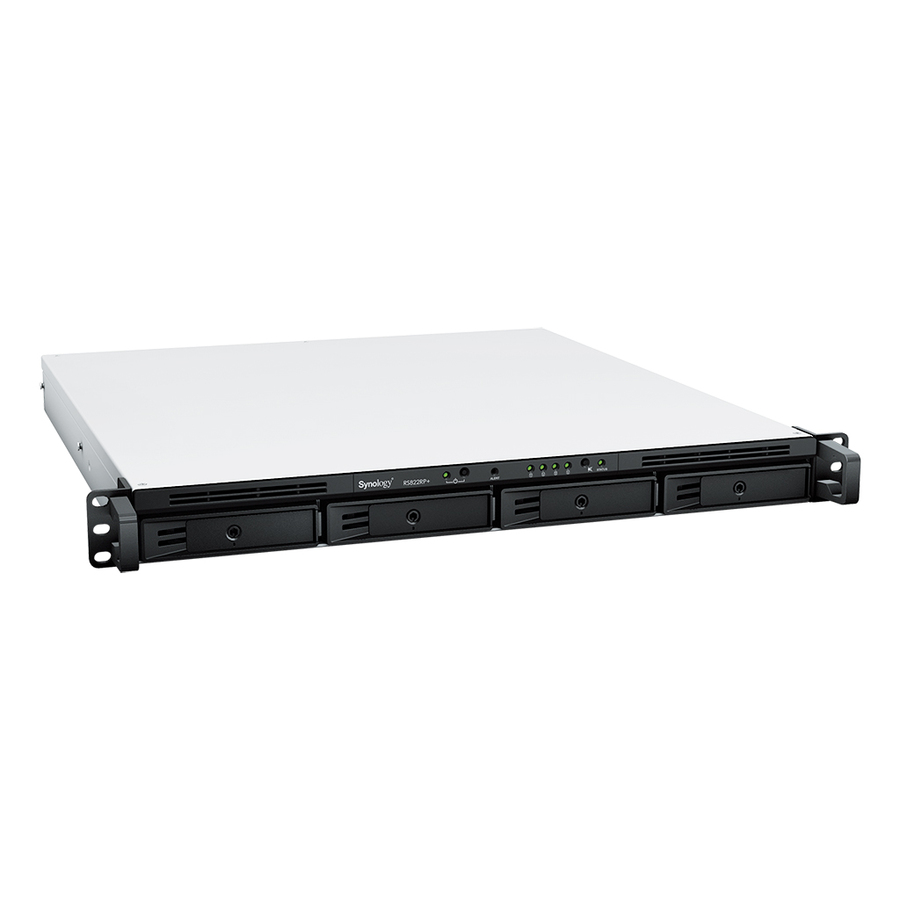

RackStation RS822+/RS822RP+
Reliable data management for remote and branch offices
An all-in-one edge storage solution
The compact 1U 4-bay Synology RackStation RS822+/RS822RP+ with its storage and connectivity expandability coupled with the powerful Synology DiskStation Manager (DSM) operating system is an ideal edge storage solution for branch offices and small and medium-sized businesses.
Performance
2103/1074 MB/s sequential read/write throughput
Scalability
Scale up to 8 drives with Synology Expansion Unit RX418
Connectivity
Built-in 4 x 1GbE ports with 10/25 GbE expansion option
Memory
Up to 32 GB DDR4 ECC
Built for reliability
RS822+/RS822RP+ comes with four Gigabit RJ-45 ports which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Two RS822+/RS822RP+ units can be paired using Synology High Availability to form a reliable active/passive server cluster, maximizing service uptime.
Furthermore, the RS822RP+ features a redundant power supply for an extra edge in service continuity.
Room for expansion
Easily adjust the RS822+/RS822RP+ to match your usage environment, whether it needs performance, faster networking, or higher storage capacity.
Storage expansion
Expand to 8 drive bays with one RX418 expansion unit.
SSD cache
Boost read/write IOPS over HDD-only arrays by 16 times or more with NVMe or SATA SSD Cache.
10/25GbE ready
Improve I/O with faster SFP+/SFP28 or RJ-45 networking.
All-in-one data management platform
The RS822+/RS822RP+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance.
Edge storage for distributed teams
Provide secure and convenient multi-platform file access, sharing, and synchronization across different locations.
Private file cloud | Enable effective collaboration with Synology Drive
Synology Drive provides remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications.
Multi-platform support
Access personal and shared data from mobile app, desktop client, web browser, or another Synology system: Any changes you make are automatically synced to other devices as soon as they are connected.
Collaborate in real time
Integrate with Synology Office to enable concurrent editing on documents, spreadsheets, and slides, with support for conversion to and from Microsoft Word, Excel, PowerPoint, and OpenDocument files.
Multi-endpoint data protection
Design an effective backup strategy to maximize system availability with a host of native and license-free solutions.
Consolidated backup server | Endpoint, VM, and NAS/SAN protection
Securely back up Windows and Linux endpoints, Synology servers, and VMware® and Hyper-V® virtual machines with Active Backup for Business.
Microsoft 365 and Google Workspace
Centralize backups of Microsoft 365 and Google Workspace data to protect it from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and savings in terms of storage and bandwidth consumption.
- SAN/NAS Storage System offers maximum storage productivity with added dependability
- Connect an expansion unit, and expand up to 4 drives for additional storage on the go
- Through RAID levels (0, 1, 5, 6, 10, basic, hybrid raid, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- DDR4 SDRAM memory technology for dependable data storage with maximum usability
- Ryzen processor offers maximum productivity in a timely efficient manner
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable san/nas storage system allows maximum space utilization with easy and convenient access and retrieval of the data
- Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network
- DiskStation Manager OS with all the creative and productive tools you need
| Brand | |
|---|---|
| Brand | Synology |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | AMD |
| Processor Type | Ryzen |
| Processor Model | V1500B |
| Number of Processors Installed | 1 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 2.20 GHz |
| Memory / RAM | |
|---|---|
| Standard Memory | 2 GB |
| Memory Technology | DDR4 SDRAM |
| Storage | |
|---|---|
| RAID Levels | 0 , 1 , 5 , 6 , 10 , JBOD , Hybrid RAID , Basic |
| Number of Solid State Drive I | 0 |
| Number of Hard Drives Install | 0 |
| Number of Hard Drives Support | 4 |
| RAID Supported | Yes |
| Drive Interface | Serial ATA |
| Power & Battery | |
|---|---|
| Redundant Power Supply | Yes |
| Maximum Power Supply Wattage | 150 W |
| Networking & Connectivity | |
|---|---|
| Protocols | SFTP |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Controller Type | Serial ATA |
| Manufacturer | Synology, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | PCI Express |
| Drive Bays | |
|---|---|
| Number of Solid State Drive S | 4 |
| Number of Total Expansion Bays | 4 |
| Number of 2.5"/3.5" Bays | 4 |
| Miscellaneous | |
|---|---|
| Product Name | RackStation RS822RP+ SAN/NAS Storage System |
