Safeguard your business assets
Synology RS3621RPxs is a powerful 12-bay storage server. Its 6-core processor enables compute-intensive services while its redundant power, ECC memory, and Btrfs file system safeguard mission-critical data. Capable of delivering 189,098 4K random read IOPS and 4,718 MB/s sequential read throughput, it is ideal for small businesses.
Compute
Intel® Xeon® D-1531 6-core 2.2 GHz
Throughput
4,718 MB/s seq. read 189,098 4K random read IOPS1
Expandability
Dual PCIe slots for 10GbE or NVMe cache
Scalability
Up to 36 drive bays with RX1217(RP)
Reliability first
Service continuity is at the core of the RS3621RPxs design.
Redundant power
Dual PSUs provide protection against a PSU failure or accidental cord removal while hot-swappable fans can be replaced without powering down the system.
Near-zero downtime
Synology High Availability (SHA) pairs two identical units together creating an active-passive cluster with minute-level failover.
Next-generation file system
Btrfs prevents data corruption and reduces maintenance overheads with advanced storage technologies and optimized snapshots.
Customize to suit
The two built-in PCIe slots allow users to customize the RS3621RPxs to satisfy unique performance, networking, and storage requirements.
-
10GbE ready
Support for 10GbE NICs expands the throughput of the unit by up to 5x times using link aggregation.
-
SSD cache
Boost read/write IOPS by up to 16 times by enabling SSD cache via our Synology M.2 NVMe adapter cards and SNV3000 Series SSDs or by installing one or more 2.5" SAT5200 SSDs.
-
On-demand drive bays
Expand to 36 drive bays using two RX1217(RP) expansion units with minimal intervention.
License-free backup solutions
Keep disaster at bay
Hyper Backup
A comprehensive backup and recovery solution for securing data stored on Synology servers. Backup data locally, to another Synology device, rsync server, or cloud-based storage such as Google Drive, Dropbox, S3-compatible destinations, and Synology C2. Deduplication, integrity checks, and incremental transfer technology reduce bandwidth and storage used.
Snapshot Replication
Easily schedule flexible point-in-time backups of shared folders and iSCSI LUNs with an RPO as low as 5 minutes and recovery in seconds. Set up replication and failover to other Synology storage systems for fast RTOs and minimal service disruption.
Active Backup Suite
Enables administrators to easily backup the entire IT infrastructure to their NAS, including Windows & Linux workstations and servers, file servers, VMware and Hyper-V virtual machines, and Microsoft 365 and Google Workspace accounts. Backups benefit from deduplication, multiversioning, and optimizations to reduce bandwidth and storage used.
- SAN/NAS Storage System offers maximum storage productivity with added dependability
- Holds up to 12 HDDs to let you expand limitlessly
- Through RAID levels (0, 1, 5, 6, 10, basic, jbod, raid f1), RAID provides data reliability, fault tolerance and improves overall performance
- DDR4 SDRAM memory technology for dependable data storage with maximum usability
- Experience unmatched performance, built-in security and remote management capabilities with Intel Xeon 2.20 ghz processor
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable san/nas storage system allows easy and convenient usage without any trouble
- Gigabit Ethernet enables higher aggregate data transfer capacity which results in a better overall performance
- DiskStation Manager OS makes you more productive and creative
| Brand | |
|---|---|
| Brand | Synology |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | Intel |
| Processor Type | Xeon |
| Processor Model | D-1531 |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 2.20 GHz |
| Memory / RAM | |
|---|---|
| Standard Memory | 8 GB |
| Memory Technology | DDR4 SDRAM |
| Storage | |
|---|---|
| RAID Levels | 0 , 1 , 5 , 6 , 10 , JBOD , Basic , RAID F1 |
| Number of Solid State Drive I | 0 |
| Number of Hard Drives Install | 0 |
| Number of Hard Drives Support | 12 |
| RAID Supported | Yes |
| Power & Battery | |
|---|---|
| Number of Power Supplies Inst | 2 |
| Redundant Power Supply | Yes |
| Maximum Power Supply Wattage | 500 W |
| Networking & Connectivity | |
|---|---|
| Protocols | DLNA |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| General Features | |
|---|---|
| Controller Type | Serial ATA |
| Manufacturer | Synology, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | PCI Express 3.0 x8 |
| Drive Bays | |
|---|---|
| Number of Solid State Drive S | 12 |
| Number of Total Expansion Bays | 12 |
| Number of 2.5"/3.5" Bays | 12 |
| Miscellaneous | |
|---|---|

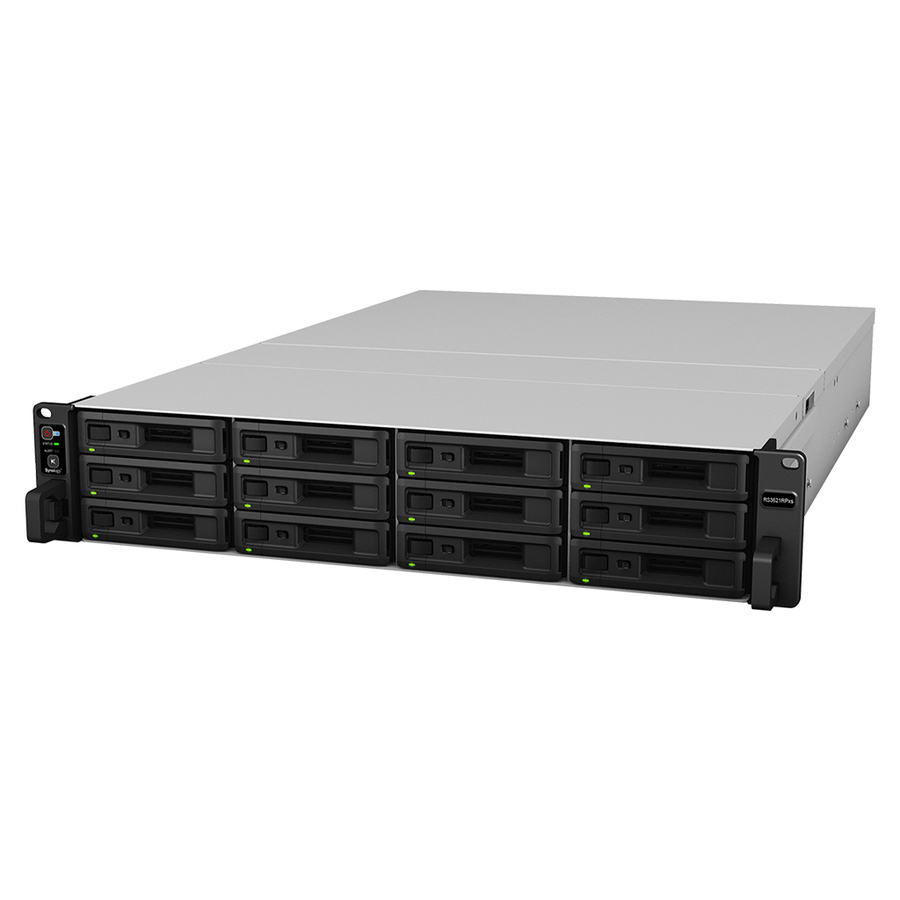

| Product Name | RackStation RS3621RPxs SAN/NAS Storage System |
