Uncompromising performance

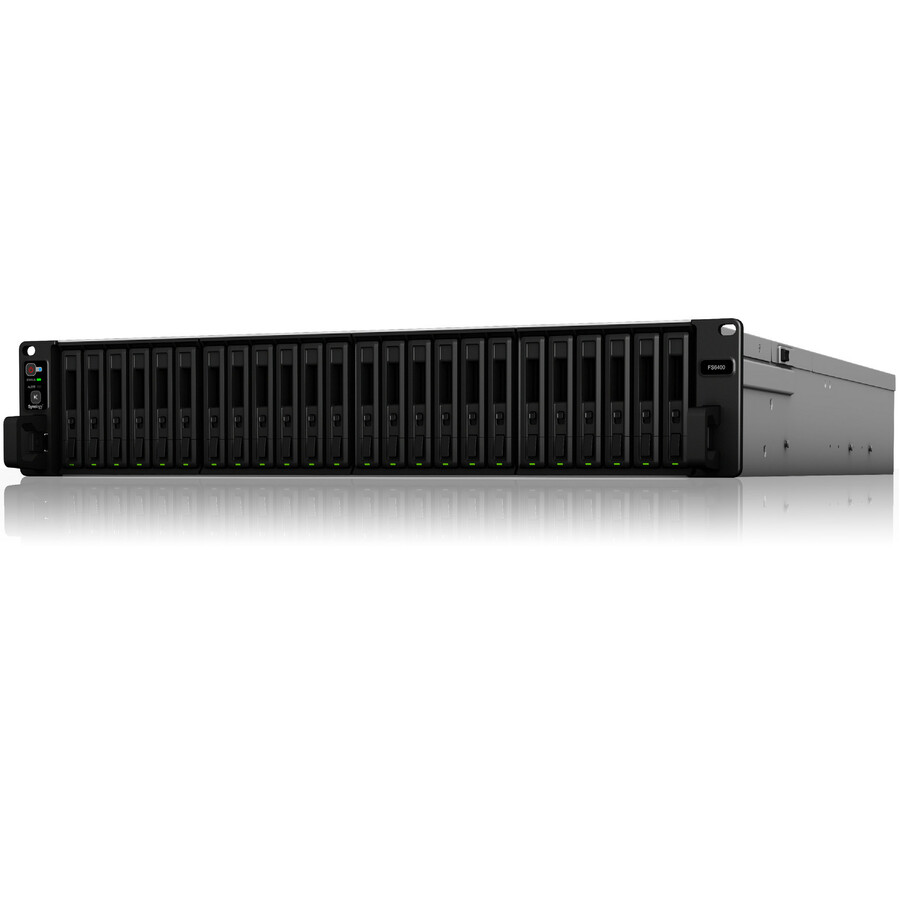

Synology FlashStation FS6400 is a 2U rackmount server designed for I/O-intensive and latency-sensitive tasks, ideal for multimedia post-production, virtual machines, online transaction processing, or database applications.
Fast and reliable networking
With multi-LAN design, FS6400 is capable of performing Link Aggregation and failover. For environments requiring a higher speed, two optional Ethernet add-in cards can be installed on PCIe 3.0 slots to provide fast data transmission.
Complete iSCSI and virtualization solutions
Synology iSCSI storage supports most virtualization solutions such as VMware vSphere, Microsoft Hyper-V, Citrix Xen Server, and OpenStack Cinder to enhance work efficiency. You can run and manage multiple virtual machines on Windows, Linux, or DSM using Virtual Machine Manager.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overheads. It offers flexible, efficient data protection and recovery tools while ensuring high-level data integrity.
Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
File- or folder-level data restoration accelerates data recovery and provides more flexibility for businesses
Automatic file self-healing detects and recovers corrupted files without user intervention
RAID F1
Due to the peculiarities of SSD and RAID technology, a common challenge lies in how to prevent all of the drives from failing at the same time because of the evenly distributed workload. RAID F1 alleviates this problem with a specially designed algorithm to unevenly distribute workload to drives, enhancing the resilience of the storage pool and ensuring your data remains safe.
Digital asset protection
Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes. Learn more
Security Advisor
Analyze system settings, password strength and network preferences, and remove any possible malware.
AppArmor
A kernel-level enhancement that blocks malicious programs from accessing unauthorized system resources.
AES 256-bit encryption
Encrypt shared folders and network data transmission to avoid unauthorized data access.
2-step verification
Prevent others from logging in to your DSM by generating a six-digit one-time password (OTP) on your mobile device.
Trust level
Customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered package files.
5-year warranty
As we're committed to improving product innovation and quality, Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.
- SAN/NAS Storage System offers maximum storage productivity with added dependability
- Holds up to 24 HDDs to let you expand limitlessly
- Through RAID levels (0, 1, 5, 6, 10, basic, jbod, raid f1), RAID provides data reliability, fault tolerance and improves overall performance
- DDR4 SDRAM memory technology for dependable data storage with maximum usability
- Holds 24 HDDs for up to 184.32 tb of storage
- 184.32 TB total solid state drive capacity support for spacious storage with much faster data transfer speed than standard hard drives
- Perform computational tasks effectively accrediting the intel xeon silver 2.10 ghz processor
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable san/nas storage system allows a clutter-free, convenient usage with increased efficiency
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
| Brand | |
|---|---|
| Brand | Synology |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | Intel |
| Processor Type | Xeon Silver |
| Processor Model | 4110 |
| Number of Processors Installed | 2 |
| Processor Core | Octa-core (8 Core) |
| Processor Speed | 2.10 GHz |
| Memory / RAM | |
|---|---|
| Standard Memory | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Storage | |
|---|---|
| RAID Levels | 0 , 1 , 5 , 6 , 10 , JBOD , Basic , RAID F1 |
| Number of Solid State Drive I | 0 |
| Number of Hard Drives Install | 0 |
| Number of Hard Drives Support | 24 |
| Total Solid State Drive Capacity | 184.32 TB |
| RAID Supported | Yes |
| Total Hard Drive Capacity Supported | 184.32 TB |
| Power & Battery | |
|---|---|
| Number of Power Supplies Inst | 2 |
| Redundant Power Supply | Yes |
| Maximum Power Supply Wattage | 800 W |
| Networking & Connectivity | |
|---|---|
| Protocols | CalDAV |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| General Features | |
|---|---|
| Controller Type | Serial Attached SCSI (SAS) |
| Manufacturer | Synology, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | PCI Express 3.0 x8 |
| Drive Bays | |
|---|---|
| Number of Solid State Drive S | 24 |
| Number of Total Expansion Bays | 24 |
| Number of 2.5" Bays | 24 |
| Misc Ports | |
|---|---|
| Number of SAS Ports (External) | 1 |
| Miscellaneous | |
|---|---|
| Product Name | FlashStation FS6400 SAN/NAS Storage System |
