High-performance mass storage

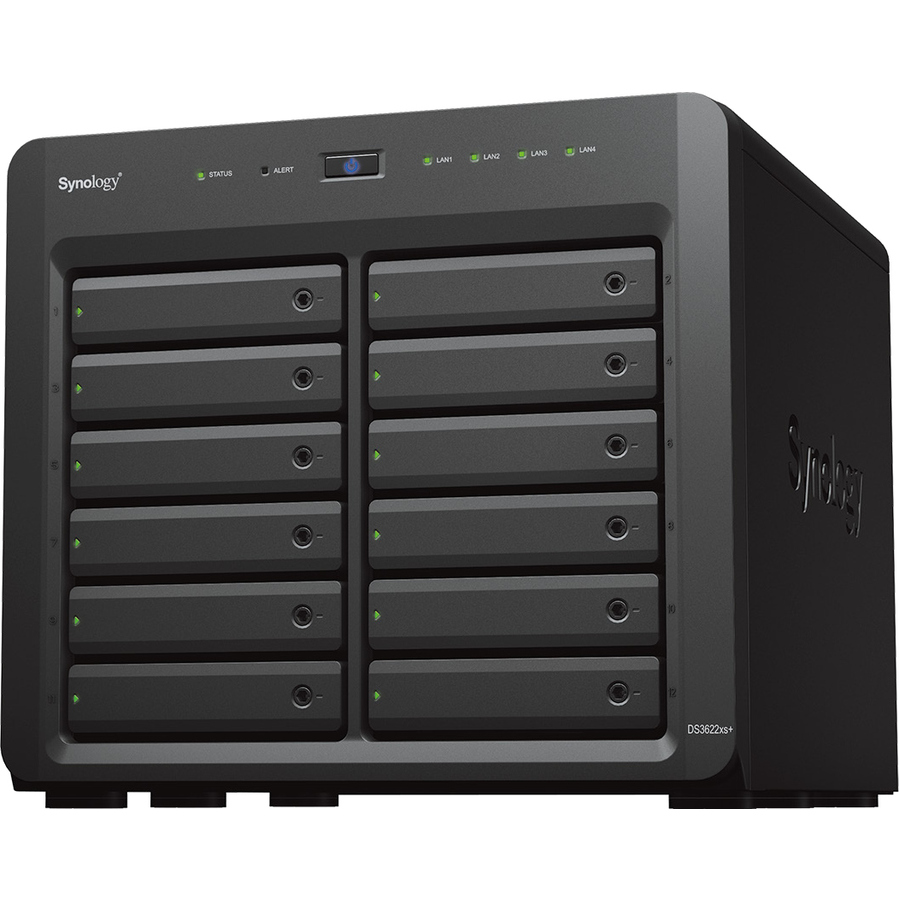

The 12-bay Synology DS3622xs+ is a powerhouse NAS capable of fitting into small and medium business environments with intensive and multi-user workloads. Its high capacity, scalability, and processing power make it ideal for VM and container storage, for lightning-fast file sharing, and as a network video recorder for large surveillance deployments. It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video.
CPU
Six-core Intel® Xeon® processor
Throughput
4,719 MB/s seq. read
260,691 4K random read IOPS1
Memory
16 GB DDR4 ECC, expandable to 48 GB
Scalability
Expand to 36 drives with two DX1222 expansion units
Dependable storage for many scenarios
Synology NAS is a versatile storage platform that fits perfectly in file server, block storage, or application server roles that require high availability, reliability, and leading-edge storage technology.
Multi-purpose NAS storage
Keep digital assets accessible locally or remotely with easy-to-maintain shared file storage, backed by fast SMB file serving, powerful RAID options, efficient backup tools, and granular permission management.
SAN infrastructure for SMBs
Deploy certified block storage with minimal disruption thanks to easy management plugins, and leverage free snapshots paired with built-in high-availability options to maximize service availability.
Versatile business applications
Host business solutions privately and on your own terms, including a powerful backup server to protect all business assets from a centralized platform or a full-fledged surveillance platform to safeguard physical premises with transparent licensing.
- SAN/NAS Storage System is the single answer to all your desired storage needs
- Robust scalability up to 12 drives to let you expand limitlessly
- Through RAID levels (0, 1, 5, 6, 10, basic, jbod, raid f1), RAID provides data reliability, fault tolerance and improves overall performance
- DDR4 SDRAM memory technology for fast, easy, and convenient access and retrieval of data and information
- Experience unmatched performance, built-in security and remote management capabilities with Intel Xeon 2.20 ghz processor
- RAID technology - data reliability, fault tolerance and improved overall performance
- Desktop form factor for added reliability and dependability
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- DiskStation Manager OS with all the creative and productive tools you need
| Brand | |
|---|---|
| Brand | Synology |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | Intel |
| Processor Type | Xeon |
| Processor Model | D-1531 |
| Number of Processors Installed | 1 |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 2.20 GHz |
| Memory / RAM | |
|---|---|
| Standard Memory | 16 GB |
| Memory Technology | DDR4 SDRAM |
| Storage | |
|---|---|
| RAID Levels | 0 , 1 , 5 , 6 , 10 , JBOD , Basic , RAID F1 |
| Number of Solid State Drive I | 0 |
| Number of Hard Drives Install | 0 |
| Number of Hard Drives Support | 12 |
| RAID Supported | Yes |
| Power & Battery | |
|---|---|
| Maximum Power Supply Wattage | 550 W |
| Networking & Connectivity | |
|---|---|
| Protocols | NFSv3 |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| General Features | |
|---|---|
| Controller Type | Serial ATA |
| Manufacturer | Synology, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | PCI Express 3.0 x8 |
| Drive Bays | |
|---|---|
| Number of Solid State Drive S | 12 |
| Number of Total Expansion Bays | 12 |
| Number of 2.5"/3.5" Bays | 12 |
| Miscellaneous | |
|---|---|
| Product Name | DiskStation DS3622xs+ SAN/NAS Storage System |
