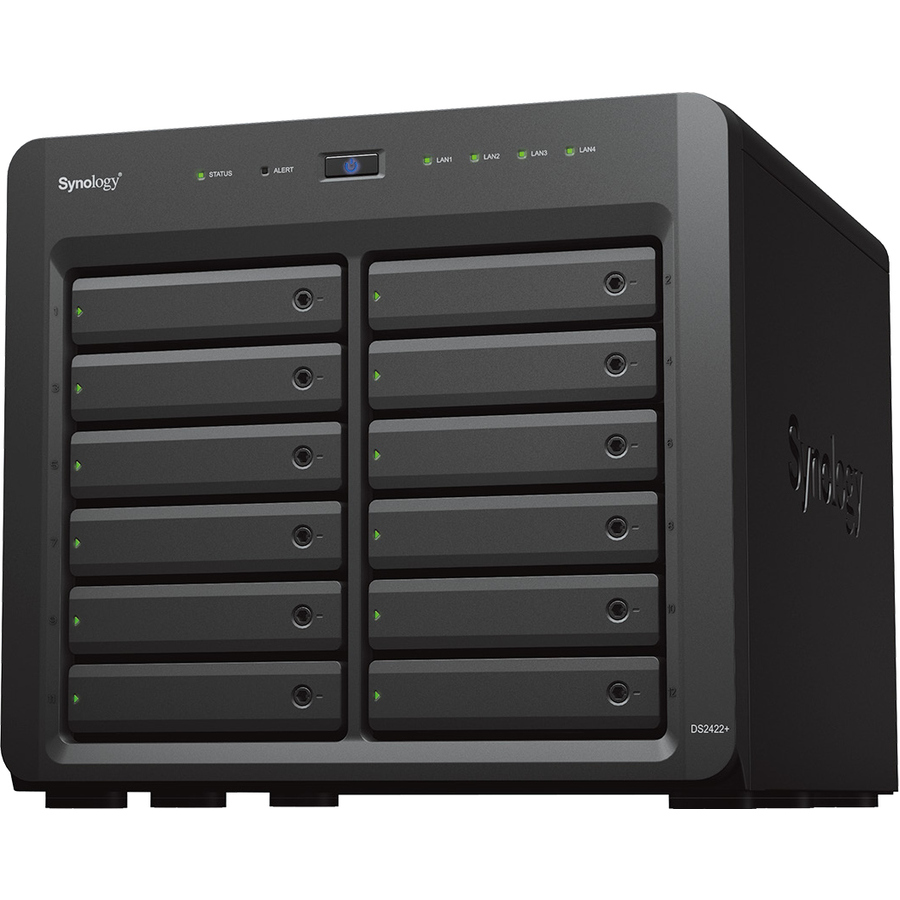

Built for high-performance mass storage
The 12-bay Synology DiskStation DS2422+ is a capable choice for small and medium businesses with large storage, file sharing, and data protection requirements in a multi-user environment. It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video and as VM storage.
CPU
AMD Ryzen™ Quad-core 2.2 GHz
Throughput
2,201/1,383 MB/s sequential read read/write throughput
Expandability
Easily add 10/25GbE and NVMe SSD cache
Scalability
Expand to 24 bays with one DX1222 expansion unit
Rise to the challenge
Prepare your DS2422+ for heavy workloads or upgrade flexibly as your business continues to grow. Use add-in cards to add bandwidth, fast SSD cache, or both.
Maximize bandwidth
Handle heavier input/output and serve more users with dual-port Synology 10 or 25GbE network interface cards.
Boost storage performance
Accelerate HDD arrays with an M.2 NVMe SSD adapter card and SNV3000 series SSDs, or install SAT5200 SATA SSDs in drive bays to increase performance with SSD cache.
Do both with one card
Add both 10GbE connectivity and M.2 NVMe SSD slots for SSD cache with a single combination NIC and adapter card.
Out-of-the-box data protection
Active Backup Suite
Securely back up Windows clients and servers, Microsoft 365 and Google Workspace accounts, file servers, and VMware® and Hyper-V® virtual machines with the Active Backup Suite.
Leverage built-in deduplication technology to reduce backup sizes and multi-versioning to allow flexible restoration. Learn more
Implement a 3-2-1 backup strategy
Combine local and remote backup strategies to achieve fully redundant protection of your IT infrastructure using Synology and third-party solutions.
- SAN/NAS Storage System offers maximum storage productivity with added dependability
- Holds up to 12 HDDs to let you expand limitlessly
- Through RAID levels (0, 1, 5, 6, 10, basic, hybrid raid, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- DDR4 SDRAM memory technology for fast, easy, and convenient access and retrieval of data and information
- Ryzen 2.20 GHz processor for performing computational tasks effectively
- RAID technology - data reliability, fault tolerance and improved overall performance
- Desktop form factor allows hassle-free and easy usage with increased efficiency
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- DiskStation Manager OS makes you more productive and creative
| Brand | |
|---|---|
| Brand | Synology |
| CPU / Processor | |
|---|---|
| Processor Type | Ryzen |
| Processor Model | V1500B |
| Number of Processors Installed | 1 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 2.20 GHz |
| Memory / RAM | |
|---|---|
| Standard Memory | 4 GB |
| Memory Technology | DDR4 SDRAM |
| Storage | |
|---|---|
| RAID Levels | 0 , 1 , 5 , 6 , 10 , JBOD , Hybrid RAID , Basic |
| Number of Solid State Drive I | 0 |
| Number of Hard Drives Install | 0 |
| Number of Hard Drives Support | 12 |
| RAID Supported | Yes |
| Power & Battery | |
|---|---|
| Maximum Power Supply Wattage | 550 W |
| Networking & Connectivity | |
|---|---|
| Protocols | NFSv3 |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| General Features | |
|---|---|
| Controller Type | Serial ATA |
| Manufacturer | Synology, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | PCI Express 3.0 x8 |
| Drive Bays | |
|---|---|
| Number of Solid State Drive S | 12 |
| Number of Total Expansion Bays | 12 |
| Number of 2.5"/3.5" Bays | 12 |
| Miscellaneous | |
|---|---|
| Product Name | DiskStation DS2422+ SAN/NAS Storage System |
