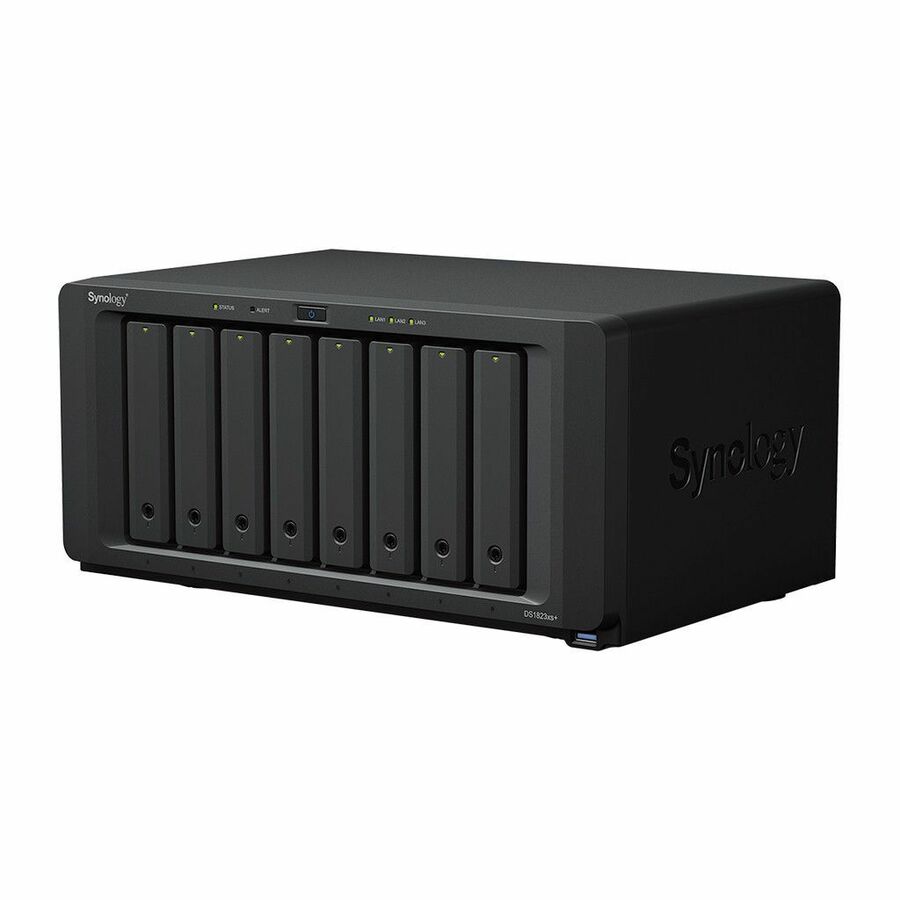

DiskStation® DS1823xs+ | Flexible large-scale storage for small and medium-sized businesses
Private data center on your desk
The DS1823xs+ is a powerful central storage server that can easily be deployed anywhere to provide secure data storage and sharing, endpoint and server backup, VM storage, surveillance management, and other business applications. It is perfect in environments where no dedicated server rack or data center is available.
Desktop-sized powerhouse
Over 3,100/2,600 MB/s seq. read/write, built-in 10GbE, and up to 144 TB raw storage before expansion.
Flexible configuration
Add up to 10 extra drive bays, 25GbE or Fibre Channel, and SSD cache volumes when needed.
Versatile applications
Back up 300 endpoints, manage 75 IP cameras, or safely sync and share files between devices and sites.
Safe, dependable, and scalable
Built-in data integrity protection, remote management options, and easy hardware expansion make the DS1823xs+ dependable, easy to maintain, and cost efficient.
Data integrity protection
The Btrfs file system helps prevent data corruption and loss through metadata mirroring, file self-healing, and efficient point-in-time snapshots. ECC memory provides additional integrity safeguards.
Efficient remote management
Monitor, manage, and replace drives and storage online in Synology DiskStation Manager (DSM). Remotely reboot, reset, or view logs while the system is down thanks to out-of-band management (OOB).
Plug-and-play expansion
The DS1823xs+ can be scaled to up to 18 bays by adding two DX517 expansion units without system downtime, thanks to online storage and volume expansion.
The performance you need
Configure the DS1823xs+ to handle any workload. Easily add 1/10/25GbE or Fibre Channel ports and designate NVMe or SATA SSD volumes as read/write cache to boost HDD performance.
Simply faster
Experience faster file indexing and higher sequential throughput with Synology Drive.
Store, share, and protect
Manage all your documents, photos, and other files, back up applications and devices, and protect your physical assets with professional video surveillance.
Flexible file server
Use the DS1823xs+ as a central file repository and data sharing hub. Provide easy access to business data from PCs, phones, and other devices, and set up powerful cross-site syncing to empower collaboration between offices or branches.
Private Cloud | A private cloud suite for file sharing
Empower your entire organization with streamlined ability to access, share, and sync data from anywhere. Provide employees with access to corporate files through mobile apps, desktop clients, and a browser-based interface. Set granular file and folder access and sharing permissions. Maintain a full overview of file activities and track changes to file share settings with detailed records in the Synology Drive Admin
Dependable and secure network storage
Use shared folders on your Synology device as reliable storage available from anywhere on your local network over all common protocols (SMB/NFS/WebDAV/FTP). Protect your files against accidental changes, removal, or even malware attacks with built-in snapshot technology and other backup options.
- SAN/NAS Storage System offers maximum storage productivity with added dependability
- Holds up to 8 HDDs to let you expand limitlessly
- Through RAID levels (0, 1, 5, 6, 10, basic, hybrid raid, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- DDR4 SDRAM memory technology for dependable data storage with maximum usability
- Perform computational tasks effectively accrediting the amd ryzen 3.35 ghz processor
- RAID technology - data reliability, fault tolerance and improved overall performance
- Desktop form factor for your convenience and simplicity of usage
- Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network
- DiskStation Manager OS makes you more productive and creative
| Brand | |
|---|---|
| Brand | Synology |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | AMD |
| Processor Type | Ryzen |
| Processor Model | V1780B |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 3.35 GHz |
| Memory / RAM | |
|---|---|
| Standard Memory | 8 GB |
| Memory Technology | DDR4 SDRAM |
| Storage | |
|---|---|
| RAID Levels | 0 , 1 , 5 , 6 , 10 , JBOD , Hybrid RAID , Basic |
| Number of Solid State Drive I | 0 |
| Number of Hard Drives Install | 0 |
| Number of Hard Drives Support | 8 |
| RAID Supported | Yes |
| Power & Battery | |
|---|---|
| Number of Power Supplies Inst | 1 |
| Maximum Power Supply Wattage | 250 W |
| Networking & Connectivity | |
|---|---|
| Protocols | CalDAV |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 3 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 3 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| General Features | |
|---|---|
| Controller Type | Serial ATA |
| Manufacturer | Synology, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | PCI Express 3.0 x8 |
| Drive Bays | |
|---|---|
| Number of Solid State Drive S | 8 |
| Number of Total Expansion Bays | 8 |
| Number of 2.5"/3.5" Bays | 8 |
| Misc Ports | |
|---|---|
| eSATA | Yes |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | DiskStation DS1823XS+ SAN/NAS Storage System |
