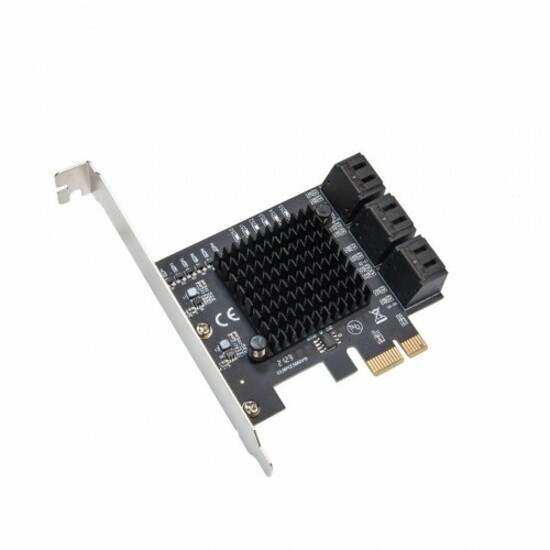

The SY-PEX40166 adds 6 SATA 6G ports through a PCIe 3.0 x1 card to your PC System. It's an ideal solution for surveillance users to install up to 10 SATA drives and/or ODD drives in one low profile PCIe card without driver installation required.
- Supports 6-port 6Gb/s SATA III interface,Supports Port Multiplier,Supports Hot-Plug,Supports drive power control and staggered spin-up.Supports SATA Partial / Slumber power management state.
- Compliant with Serial ATA AHCI (advanced host controller interface) Specification Rev 1. 0, supports SATA 3. 0 transfer rate up to 6Gbps. Maximum sequencing read/ write speed 850 MB/s.
- Micron JMB582 Chipset, Port Multiplier FIS-based and Command-based switching supported. Hot plug and Hot swap SATA ports. Support Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
- Compatible with Windows XP/7/8/10/Mac/NAS/Linux OS. No driver installation is required. Support install Windows OS from Win10 PE.
| Brand | |
|---|---|
| Brand | SYBA Multimedia |
| Storage | |
|---|---|
| Number of SATA Ports (Interna | 6 |
| RAID Supported | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Controller Type | Serial ATA/600 |
| Manufacturer | SYBA Multimedia, Inc |
| Misc Ports | |
|---|---|
| Total Number of SATA Ports | 6 |
| Host Interface | PCI Express 3.0 x1 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
