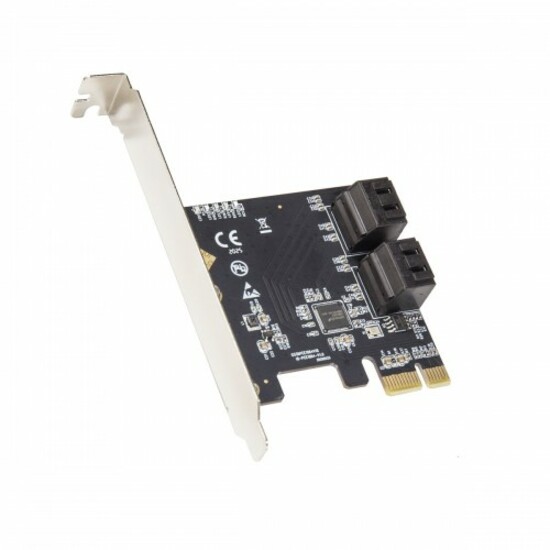

The SI-PEX40156 4 port SATA III PCI-e 3.0 x1 controller card ASMedia 1064 chipset adds four SATA III ports to a computer through a PCI-e 3.0 x1 slot, delivering multiple internal 6Gbps connections for SATA III hard drives and SSDs. With full support for SATA 3.0 hard drives and data transfer speeds of up to 6 Gaps, the controller card features a native PCI Express single chipset that provides enhanced compatibility, reliability and performance for SATA 600 MB/s storage needs.
- Chipset: ASMedia 1064
- 4 Internal SATA 6Gb/s Ports. SATA ports are bootable
- Compliant with Serial ATA Specification 3.0. Hot Plug and Hot Swap
- Compliant with PCI-Express Specification v1.0
- Supports Native Command Queue (NCQ). Supports Port Multiplier FIS Based Switching or Command Based Switching
- Supports UEFI(Unified Extensible Firmware Interface)
| Brand | |
|---|---|
| Brand | SYBA Multimedia |
| Storage | |
|---|---|
| Number of SATA Ports (Interna | 4 |
| RAID Supported | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| General Features | |
|---|---|
| Controller Type | Serial ATA/600 |
| Manufacturer | SYBA Multimedia, Inc |
| Misc Ports | |
|---|---|
| Total Number of SATA Ports | 4 |
| Host Interface | PCI Express 3.0 x1 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
