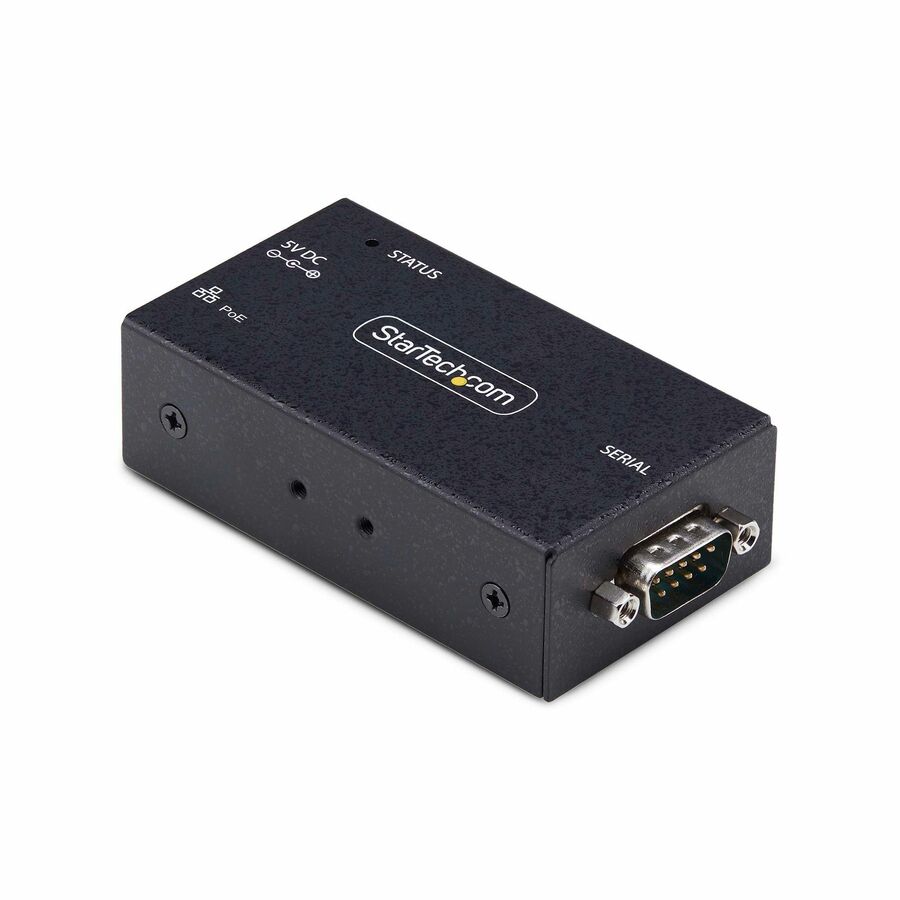

This PoE serial-to-IP converter is an efficient solution for remotely connecting and controlling a variety of RS232 serial devices over an IP-based network. Compliant with the 802.3af PoE standard, the RJ45 LAN to DB9 adapter facilitates a seamless integration of data and power supply to the unit through a single Cat5/5e/6/6a copper cable
Configuration and Management
The DB9 to Ethernet Adapter family shares the same Windows Virtual COM Port software and Web User Interface (WebUI) for a unified experience. Users can employ the Windows software to view and manage all device servers within a network and to set up virtual COM ports. Alternatively, the WebUI provides a platform-independent method, allowing users to access and configure these device servers from any operating system. This flexibility ensures that administrators can manage their network of device servers efficiently, regardless of the operating system they are using.
The product family includes the following options:
- 1-Port Serial to Ethernet Adapter with PoE (I13P-SERIAL-ETHERNET)
- 1-Port Serial to Ethernet Adapter (I13-SERIAL-ETHERNET)
- 2-Port Serial to Ethernet Adapter (I23-SERIAL-ETHERNET)
- 4-Port Serial to Ethernet Adapter (I43-SERIAL-ETHERNET)
PoE and Ethernet options
Choose between dual power options, M-size barrel connector and Power over Ethernet (PoE), that provide maximum installation flexibility for a variety of scenarios. The TAA-compliant IP-to-serial converter features a single RJ45 10/100 Mbps Ethernet port and supports Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols for versatile network connectivity. Supports Level-4 ESD protection (15kV air/8kV contact) and can supply 5VDC over pin 9 if required.
Flexible Installation and Rugged Chassis
The converter is housed in a full metal enclosure for durability in harsh environments. The DB9 over IP converter includes all necessary wall and DIN rail mounting hardware. Multiple mounting holes along the chassis allow it to be installed in the most useful orientation for any application. The compact design of 1.8x1x3.2in (46.1x 25x 81.9mm) is ideal for environments where space is at a premium.
- SINGLE PORT SERIAL TO IP CONVERTER: Connect different RS232 serial devices remotely over an IP-based network; Use for POS systems, barcode readers, sensors, weighing systems, CNC controllers & PLCs; DB9 serial port supports up to 921.6Kbps; TAA Compliant
- UNIFIED ECOSYSTEM EXPERIENCE: All our device servers share the same management software and Web UI; View/manage individual devices with a common UI on any OS; Windows software to set up virtual com ports and view/manage all device servers on the network
- VERSATILE CONFIGURATIONS: PoE powered converter support TCP client/server mode to enable serial tunneling between two device servers over a LAN; Export/import settings, custom naming / location, admin password protection, and upgradeable firmware
- ETHERNET AND POWER OPTIONS: Single 10/100Mbps RJ45 port w/auto-negotiation; Serial device server operates over Telnet (RFC2217)/UDP/TCP; Serial to LAN converter
- RUGGED AND MOUNTABLE ENCLOSURE: All-metal housing ensures durability in harsh conditions; Supports Level-4
| Brand | |
|---|---|
| Brand | StarTech.com |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Total Number of Network Ports | 1 |
| PoE (RJ-45) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| General Features | |
|---|---|
| Manufacturer | StarTech.com |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Number of Serial Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| TAA Compliant | Yes |
