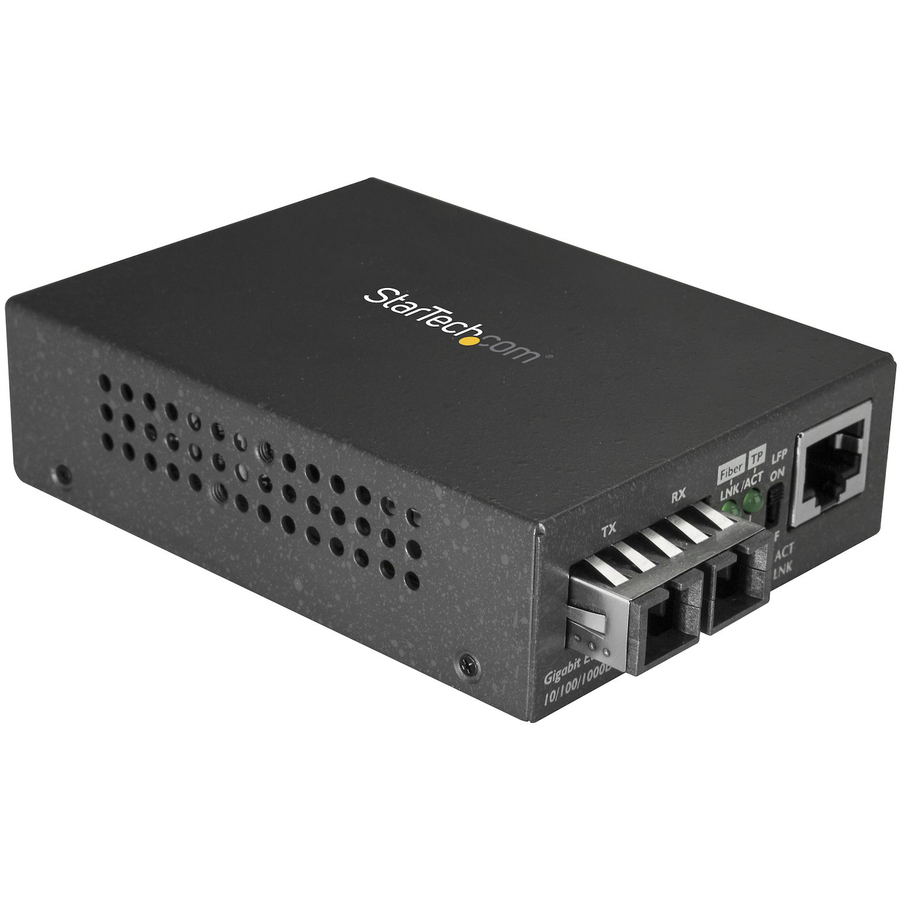

StarTech Singlemode SC Fiber Ethernet Media Converter, 1000BASE-LX Gigabit Fiber Optic to Copper Bridge, 10/100/1000 Network 10km, TAA

109.99 109.99
109.99

109.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • End of Life Manual Availabili
  • REACH free of SVHC
  • WEEE Statement
  • REACH Declaration URL
  • EU RoHS Declaration URL
  • Network Technology
  • Network (RJ-45)
  • Fiber Mode Supported
  • Plug/Connector Type
  • Total Number of Ports
  • Fiber Optic Cable Wavelength
  • SC Port Type
  • Number of SC Ports
  • Form Factor
  • Ethernet Technology
  • Media Type Supported
  • Maximum Distance Supported
  • TAA Compliant
  • Environmentally Friendly
  • Environmental Certification
  • Environmental Compliance
  • Packaged Quantity
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

This fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks. Extend your GbE network cost-effectively The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernetnetwork infrastructures.The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation. Reliable and scalable network connectivity Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network. The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer

More from the Manufacturer

  • Supports IEEE 802.1q Tag VLAN pass through
  • 1310 nm wavelength
  • LED Indicators for simple Ethernet/fiber network link monitoring
  • Non-blocking full wire-speed forwarding rate
  • Provides DIP switch supporting Link Fault Pass-through function
  • Compact design and wall mountable
  • Supports a maximum distance of 10 km over single mode duplex fiber optic cable (SC connection)
  • Provides a cost-effective Ethernet to fiber/copper to fiber link
  • Converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks
Brand
Brand StarTech.com
Power & Battery
Plug/Connector Type Type N
Power Source AC Adapter
Power Consumption 10 W
Networking & Connectivity
Network Technology 100Base-LX
Ethernet Port
Number of Network (RJ-45) Por 1
Network (RJ-45) Yes
Size / Dimensions
Form Factor Wall Mountable
General Features
Maximum Distance Supported 10 km
Manufacturer StarTech.com
Misc Ports
Total Number of Ports 2
SC Port Type Duplex
Number of SC Ports 1
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Cables
Fiber Mode Supported Single-mode
Fiber Optic Cable Wavelength 1310 nm
Compliance & Certification
REACH free of SVHC Yes
TAA Compliant Yes
Environmentally Friendly Yes
Environmental Certification EU RoHS
Miscellaneous
Product Name Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km
