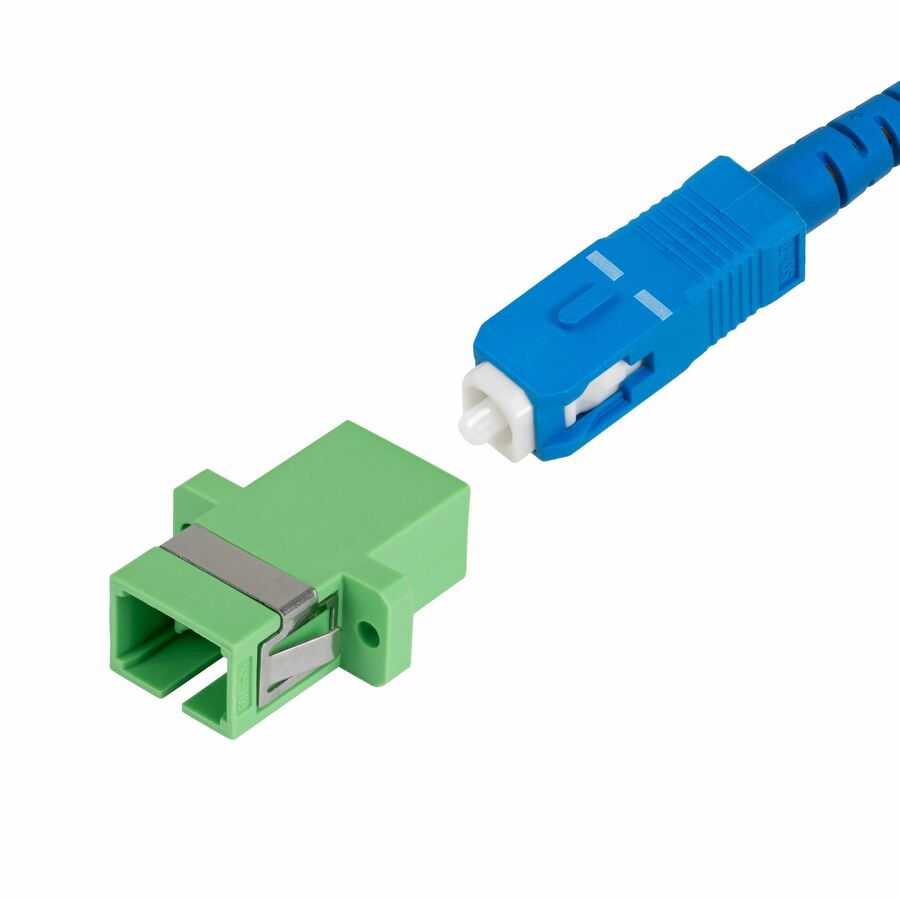

This 10-Pack of Single Mode SC fiber couplers is a practical solution for supporting multiple installations. Join two SC simplex connections in a fiber distribution panel or enclosure.
Flanged Design for Secure Mounting
The SC Fiber Coupler features a flanged body for secure placement in fixed installations, ensuring a stable connection point within fiber enclosures and mounting panels. It supports Single Mode SC simplex fiber cables and is compatible with OS1/OS2 (9/125µm) fiber core/cladding. This 10 Pack is ideal for fast deployment in enterprise networks and fiber infrastructure.
Built for Reliable Performance
The Single Mode SC/SC Fiber Coupler features a durable ABS housing and ceramic-lined inner sleeves for precise fiber alignment, minimizing signal loss for long-lasting reliability and performance.
- EXTEND MULTIPLE SC CONNECTIONS: Deploy faster and more organized with a 10-pack of flanged SC/APC simplex fiber couplers, ideal for fiber distribution panels and enclosures in large-scale installations
- RELIABLE, HIGH-SPEED PERFORMANCE: Engineered for 1/10/40/100Gbps transmission with low 0.2dB insertion loss and precision mating, this coupler maintains peak signal integrity and exceeds TIA-568 B.3 standards; Optimized for Single Mode laser sources
- FLANGED DESIGN FOR SECURE MOUNTING: Secure the SC coupler into fixed panel mounts with the screw-in flanged body to eliminate port movement and ensure a stable physical connection point in high-density or permanent installations
- SINGLE MODE COMPATIBILITY: Pair with SC simplex fiber cables with APC polished ends for optimal signal clarity and minimal return loss; Supports OS2/OS1 single mode connections over 9/125µm cores at standard 1260-1625nm wavelengths
- THE IT PRO'S CHOICE: Operations managers and network technicians rely on our network accessories for high
| Brand | |
|---|---|
| Brand | StarTech.com |
| Appearance | |
|---|---|
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Sleeve Material | Ceramic |
| General Features | |
|---|---|
| Manufacturer | StarTech.com |
| Cables | |
|---|---|
| Connector Type on First End | SC/APC Network |
| Connector on First End Details | 1x SC/APC Network - Female |
| Connector Gender on First End | Female |
| Connector Type on Second End | SC/APC Network |
| Connector Gender on Second End | Female |
| Compliance & Certification | |
|---|---|
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 185°F (85°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Miscellaneous | |
|---|---|
| Adapter Type | Fiber Optic |
