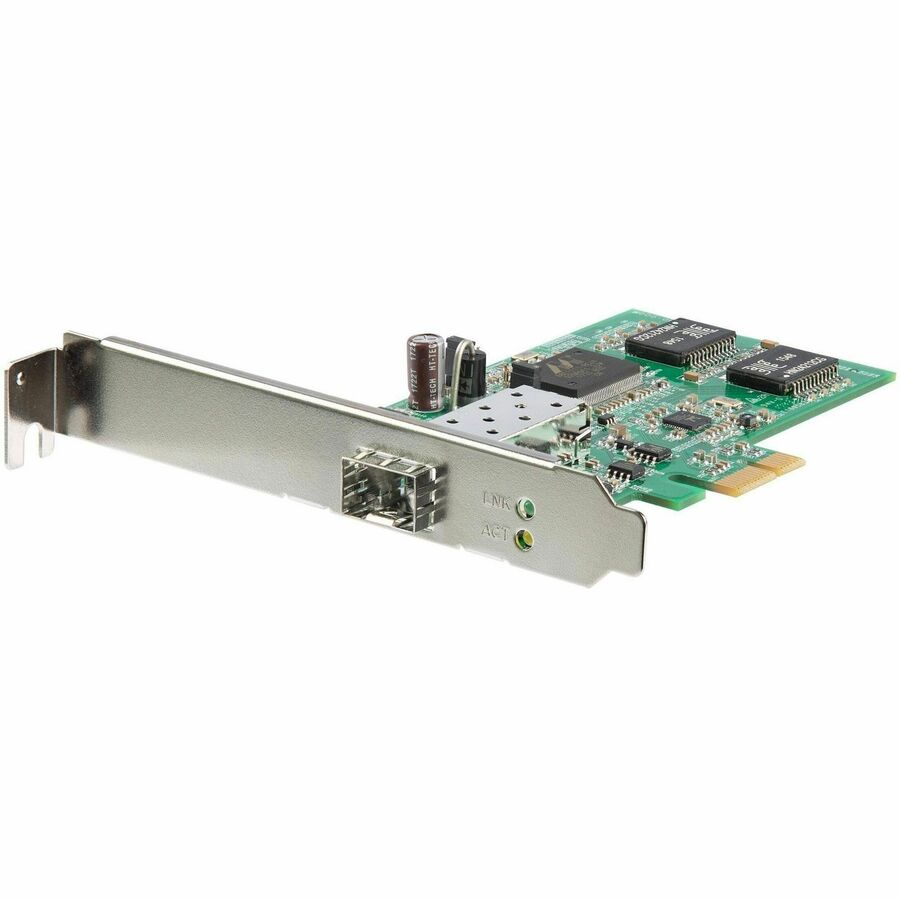

The PEX1000SFP2 PCI Express Gigabit Fiber Network Card lets you connect a PCI Express-based computer directly to a fiber optic network using the Gigabit SFP of your choice.This Gigabit fiber card adapts to your network fiber connection and distance requirements to offer flexible configuration via an open SFP slot, and is compatible with most Gigabit SFP transceivers. With broad SFP compatibility the fiber network card lets you use your preferred SFP, giving you more options to connect your computer directly to a fiber network.With fiber connectivity, your network is not susceptible to electronic interference, often problematic with standard RJ45 copper networks, making this versatile fiber card ideal for secure network setups.Plus, the card is equipped with a standard profile bracket and includes a low-profile/half-height bracket, perfect for installation in small form-factor computers or 1U server and rackmount applications.Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer
- Preboot Execution Environment (PXE) 2.1
- Supports PCI Message Signaled Interrupt (MSI)
- Jumbo Frame Support
- Compliant with IEEE802.3z 1000Base-SX/LX, IEEE 802.1Q VLAN Tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1
- Includes low-profile/half-height installation bracket
- Supports Full/Half-duplex Auto-Negotiation, Auto-MDI/MDIX
- Compatible with most Gigabit SFP modules
| Brand | |
|---|---|
| Brand | StarTech.com |
| Networking & Connectivity | |
|---|---|
| XJACK | No |
| Network Technology | 1000Base-X |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Ethernet AUI | No |
| Network (RJ-45) | No |
| PoE (RJ-45) Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 2 Gbit/s |
| Manufacturer | StarTech.com |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slo | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Host Interface | PCI Express x1 |
| Serial Port | No |
| Compliance & Certification | |
|---|---|
| REACH free of SVHC | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Miscellaneous | |
|---|---|
| Product Name | 1 Port PCI Express Gigabit SFP Network Card |
