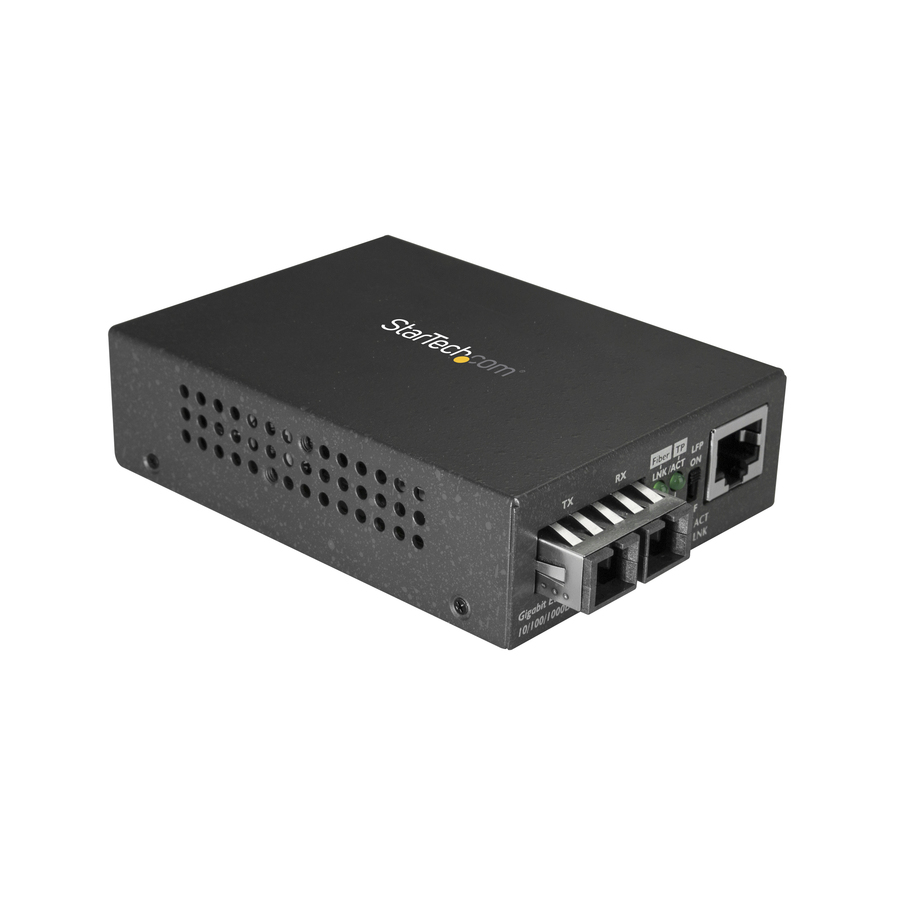

StarTech Multimode SC Fiber Ethernet Media Converter, 1000BASE-SX Gigabit Fiber Optic to Copper Bridge, 10/100/1000 Network, 550m, TAA

87.49 87.49
87.49

87.49 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • End of Life Manual Availabili
  • REACH free of SVHC
  • WEEE Statement
  • REACH Declaration URL
  • EU RoHS Declaration URL
  • Network Technology
  • Network (RJ-45)
  • Fiber Mode Supported
  • Plug/Connector Type
  • Total Number of Ports
  • Fiber Optic Cable Wavelength
  • SC Port Type
  • Number of SC Ports
  • Form Factor
  • Ethernet Technology
  • Media Type Supported
  • Maximum Distance Supported
  • TAA Compliant
  • Environmentally Friendly
  • Environmental Certification
  • Environmental Compliance
  • Packaged Quantity
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 mover multimode fiber, on 1000BASE-SXnetworks. Extend your GbE network cost-effectively The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernetnetwork infrastructures.The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation. Reliable and scalable network connectivity Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network. The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer

More from the Manufacturer

  • 850 nm wavelength
  • Supports IEEE 802.1q Tag VLAN pass-through
  • LED Indicators for simple Ethernet/fiber network link monitoring
  • Provides DIP switch supporting Link Fault Pass-through function
  • Non-blocking full wire-speed forwarding rate
  • Compact design and wall mountable
  • Supports a maximum distance of 550 m over multimode fiber-optic cable (SC connection)
  • Provides a cost-effective Ethernet to fiber/copper to fiber link
  • Converts and extends a Gigabit Ethernet fiber (1000Mbps) network over multimode fiber on 1000BASE-SX networks
Brand
Brand StarTech.com
Power & Battery
Plug/Connector Type Type N
Power Source AC Adapter
Power Consumption 10 W
Networking & Connectivity
Network Technology 10Base-T
Ethernet Port
Number of Network (RJ-45) Por 1
Network (RJ-45) Yes
Size / Dimensions
Form Factor Wall Mountable
General Features
Maximum Distance Supported 0.55 km
Manufacturer StarTech.com
Misc Ports
Total Number of Ports 2
SC Port Type Duplex
Number of SC Ports 1
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Cables
Fiber Mode Supported Multi-mode
Fiber Optic Cable Wavelength 850 nm
Compliance & Certification
REACH free of SVHC Yes
TAA Compliant Yes
Environmentally Friendly Yes
Environmental Certification EU RoHS

Ratings
