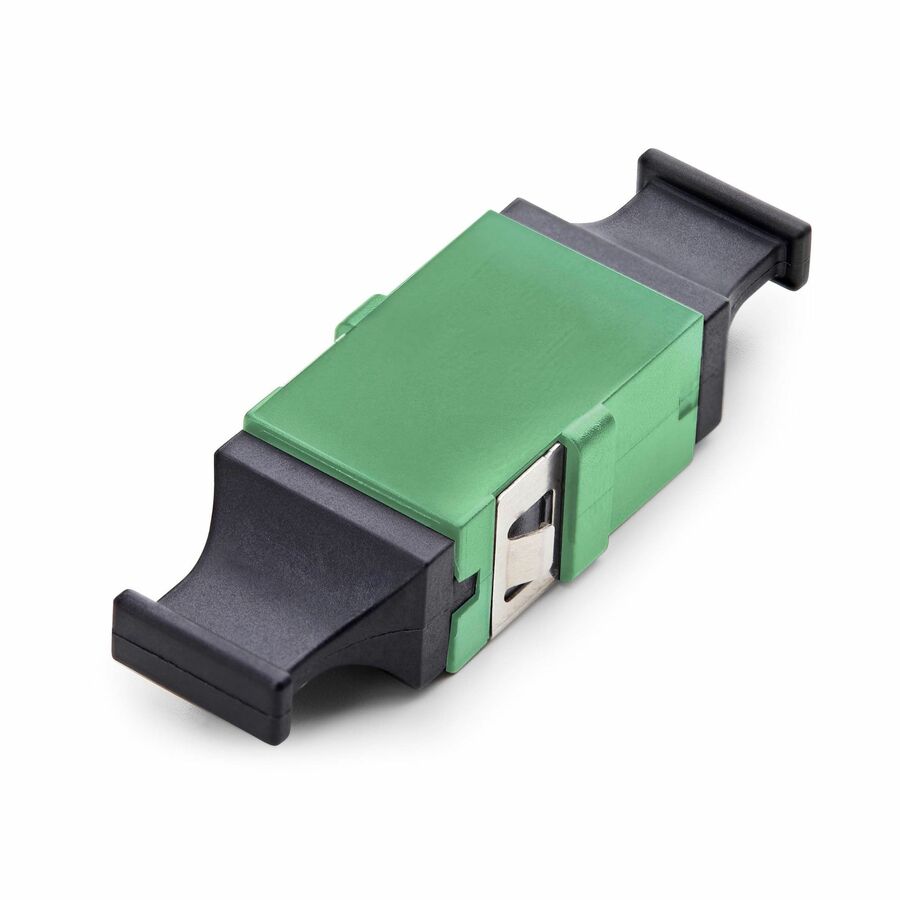

Extend a Single Mode fiber connection by connecting two MPO/MTP trunk cables with this MPO/MTP to MPO/MTP Coupler. The female-to-female fiber coupler supports both male and female MPO/MTP connections, maintaining optimal signal integrity while achieving low insertion loss that exceeds industry standards.
Toolless Installation for Quick Setup
The MPO/MTP Fiber Coupler supports Single Mode OS1/OS2 (9/125 µm) fiber cables. The coupler features toolless setup to simplify installation into fiber patch panels and rackmount/wall enclosures. Ideal for fast deployment in data centers, enterprise networks, and telecom applications.
Built to Last
The MPO Coupler features a durable ABS housing and precision alignment structure for accurate multi-fiber mating, minimizing signal loss for long-lasting reliability and performance.
- EXTEND MPO/MTP CONNECTIONS: Seamlessly join two Single Mode MPO/MTP fiber cables to extend multi-fiber runs in rackmount PATCH panels, wall enclosures or distribution frames; Ideal for scalable data center and telecom builds
- RELIABLE, HIGH-SPEED PERFORMANCE: Engineered for 1/10/40/100Gbps transmission with low 0.2dB insertion loss and precision mating, this coupler ensures signal integrity and exceeds TIA-568.3-D standards; Optimized for Single Mode laser sources
- QUICK INSTALLATION: Plug-and-play design with metal mounting tabs offers quick, secure installation in standard panels with no tools required, no extra steps
- SINGLE MODE COMPATIBILITY: Supports OS1/OS2 Single Mode MPO/MTP cables with 9/125um cores, operating at standard 1310nm/1550nm wavelengths; Best paired with MPO/MTP trunk cables with APC polished ends
- THE IT PRO'S CHOICE: Our network jacks, connectors, and couplers are tested for peak performance in structured cabling environments; Designed for reliability with consistent fit and finish; Backed
| Brand | |
|---|---|
| Brand | StarTech.com |
| Appearance | |
|---|---|
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| General Features | |
|---|---|
| Manufacturer | StarTech.com |
| Cables | |
|---|---|
| Connector Type on First End | MTP/MPO Network - Female |
| Connector on First End Details | 1 x MTP/MPO Network - Female |
| Connector Gender on First End | Female |
| Connector Type on Second End | MTP/MPO Network - Female |
| Connector Gender on Second End | Female |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Miscellaneous | |
|---|---|
| Product Name | MTP/MPO Fiber Coupler - Green |
| Adapter Type | Fiber Optic |
