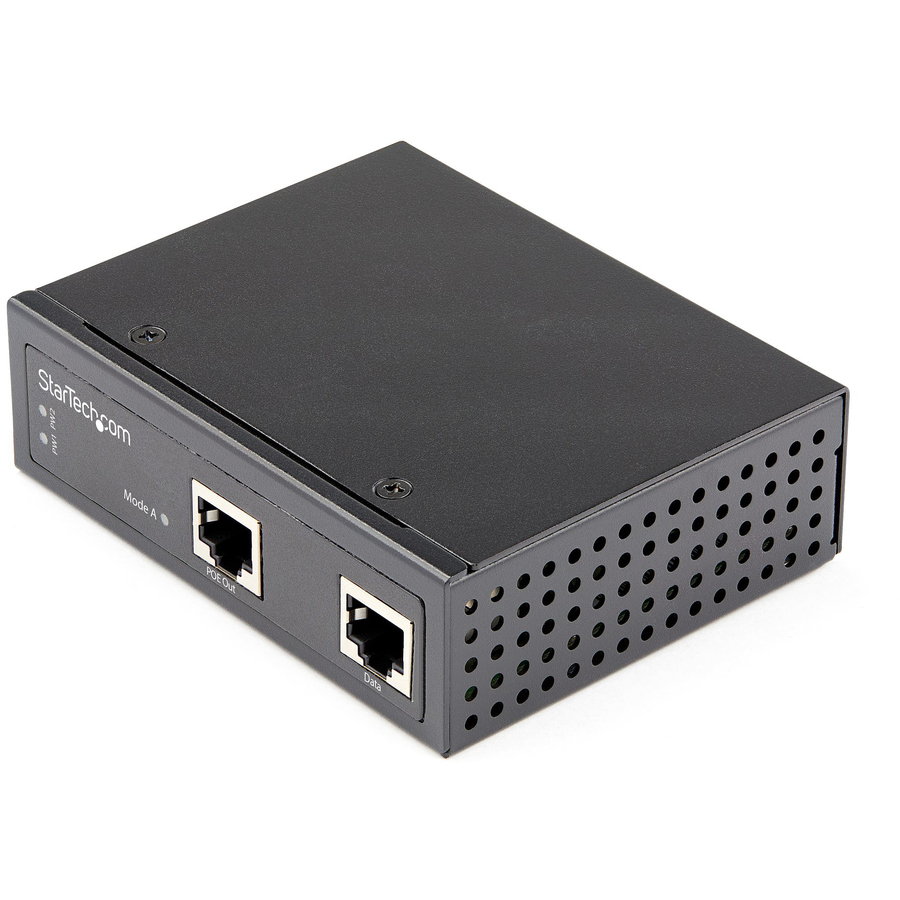

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.
30 Watt Power BudgetProvides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:
- Cameras
- Sensors
- Wi-fi access points
Uses Cat 5e (or higher rated) Ethernet cabling.
Designed for Harsh EnvironmentsIndustrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
- Vibration: EN 60068-2-6
- Shock: EN 60068-2-27
- Free-fall: EN 60068-2-32
600,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.
Dual Power InputsDual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The POEINJ30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- 30 WATT GIGABIT ETHERNET PoE INJECTOR: Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like cameras, sensors, and wi-fi access points
- TECH SPECS: 1 Gbps
- 48V-56VDC input
- IEEE 802.3af / IEEE 802.3at (30W)
- 10/100/1000 Mbps auto negotiation
- Link fault passthrough (LFP)
| Brand | |
|---|---|
| Brand | StarTech.com |
| Power & Battery | |
|---|---|
| Input Voltage | 56 V DC |
| Size / Dimensions | |
|---|---|
| Form Factor | DIN Rail/Wall Mountable |
| General Features | |
|---|---|
| Protection Type | Overload Protection |
| Manufacturer | StarTech.com |
| Misc Ports | |
|---|---|
| Output Ports | 1 x PoE+ |
| Input Ports | 1 x Fast Ethernet |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
