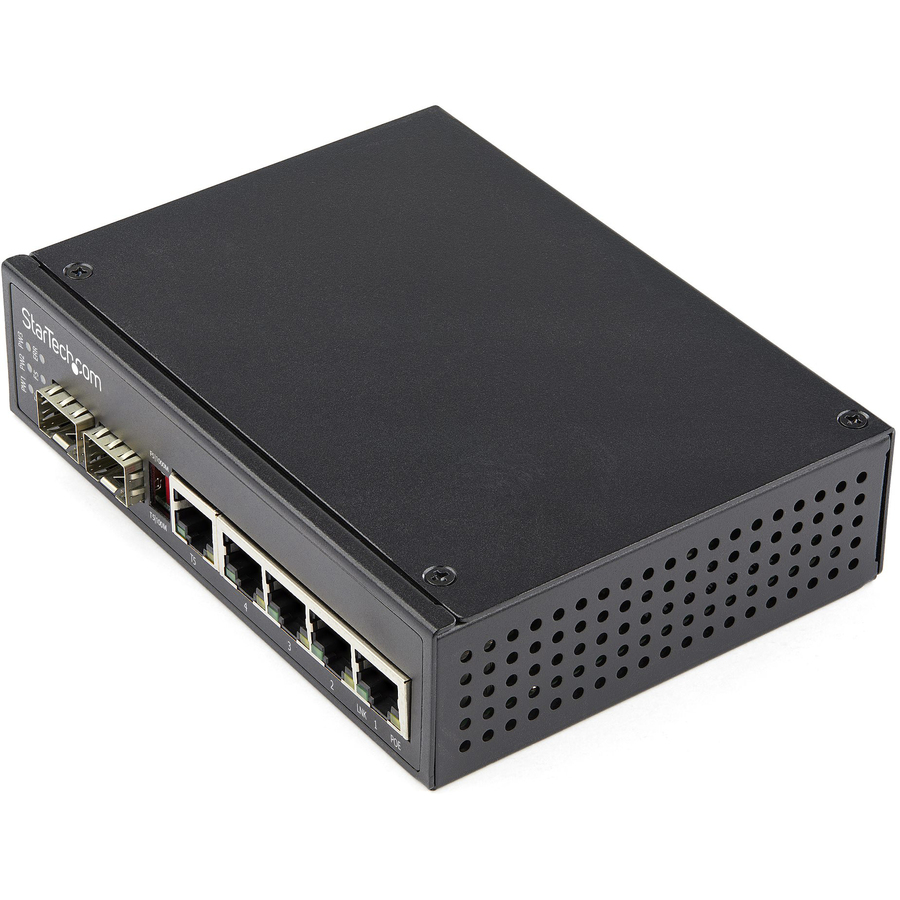

Easily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable.
Power Over Ethernet & 48V VoltageWith a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:
- Cameras
- Sensors
- Wi-Fi access points
Uses Cat 5e (or higher rated) Ethernet cabling.
Designed for Harsh EnvironmentsIndustrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
- Vibration: EN 60068-2-6
- Shock: EN 60068-2-27
- Free-Fall: EN 60068-2-32
500,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.
Dual Power InputsDual power inputs provide redundancy. Accepts terminal block power or DIN power connectors for additional power supply flexibility, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The IES1G52UPDIN is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- FIBER & PoE: Industrial 6 Port Gigabit Ethernet Switch IEEE 802.3af (PoE) or 802.3at (PoE+) 30W max per 4 x PoE ports PSE + 2 x open SFP slots
- Use with devices like cameras, sensors, wi-fi APs
- FLEXIBLE POWER INPUT: Use a DIN power connector or hardwire using terminal block power, or use dual power sources for redundancy
- Input voltage range is 48-56V DC
- ROBUST DESIGN: Industrial Network Switch w/MTBF 500,000+hrs @ 50C
- Vibration, shock & free fall rated
- Rugged industrial IP-30 aluminum housing
- -40C to 75C hardened operating temp
- DIN/Wall Mount
- TECH SPECS: 10/100/1000 Mbps Auto-Negotiation
- Unmanaged
- 6 Total Mixed Fiber/Copper Connections: 4 PoE ports + 1 SFP + 1 Flexible Copper or SFP port (MSA Compliant)
- Total power budget: 120W
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years
- This Gigabit PoE switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
| Brand | |
|---|---|
| Brand | StarTech.com |
| Power & Battery | |
|---|---|
| Redundant Power Supply Suppor | Yes |
| Plug/Connector Type | Terminal Block |
| PoE Budget | 120 W |
| Power Source | Power Supply |
| Power Consumption | 126 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 5 |
| PoE (RJ-45) Port | Yes |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | DIN Rail Mountable |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Manageable | No |
| Manufacturer | StarTech.com |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slo | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Shared SFP Slot | Yes |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| REACH free of SVHC | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Miscellaneous | |
|---|---|
| Product Name | Ethernet Switch |
