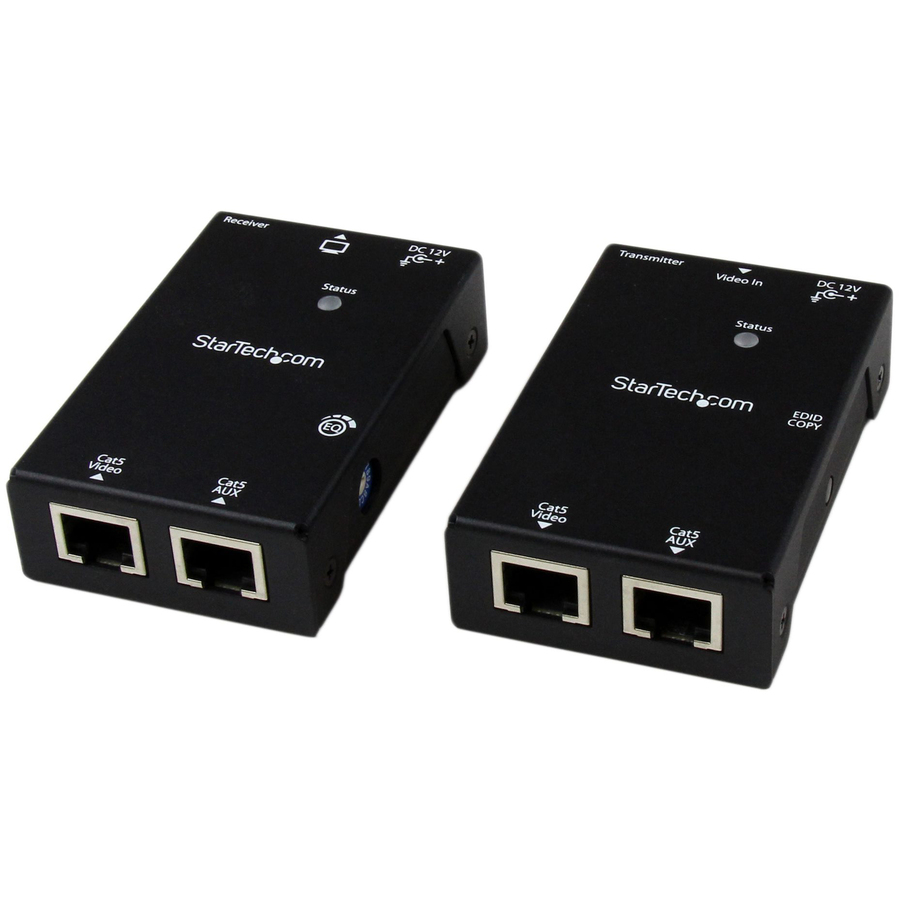

The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables.For added versatility the kit features Power Over Cable andonly requires asingle power adapter that can be connected to either the Transmitter or Receiver. With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector. For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances. The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed.Plus, withPowerOverCable, you can easily extend anHDMI signal inareas where access to power outlets is limited. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support. More from the Manufacturer
- Includes transmitter (local) and receiver (remote) units
- No software/drivers required
- Supports HD resolutions up to 1080p (1920x1080)
- Supports Cat5e or Cat6 Ethernet cabling (50m)
- Power Over Cable allows a single power source to operate the Transmitter and Receiver
| Brand | |
|---|---|
| Brand | StarTech.com |
| GPU / Graphics | |
|---|---|
| Graphics Modes | Full HD |
| Power & Battery | |
|---|---|
| Input Voltage | 220 V AC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1080 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 11.08 oz |
| Form Factor | Rack-mountable |
| Receiver Width | 2" |
| Receiver Weight (Approximate) | 11.08 oz |
| Receiver Height | 0.80" |
| Receiver Depth | 3.10" |
| Transmitter Depth | 3.10" |
| Transmitter Weight (Approximate) | 11.08 oz |
| Transmitter Height | 0.80" |
| Transmitter Width | 2" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 164.04 ft |
| Manufacturer | StarTech.com |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Misc Ports | |
|---|---|
| Daisy Chain | No |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
| Compliance & Certification | |
|---|---|
| REACH free of SVHC | Yes |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
