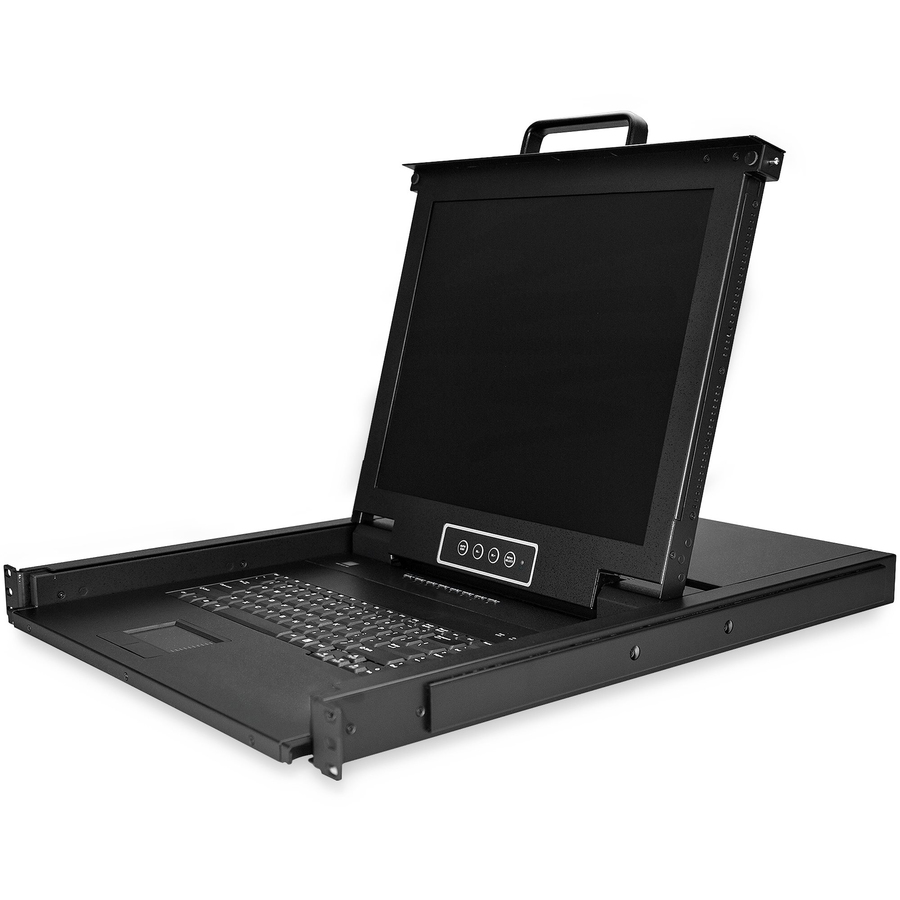

Providing centralized control of up to eight servers, this 8-port rackmount KVM console gives you easy access to your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space. An All-Inclusive Solution The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024. This 8-port KVM console comes with everything you need to set up right out of the box: 8 VGA KVM Cables Mounting Rails M5 Cage Nuts and Screws Simple System Integration With direct access to eight systems or servers, the 8-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure. StarTech.com Rack Consoles Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1708K is backed by a StarTech.com 2-year warranty and free lifetime technical support More from the Manufacturer
- TESTED & PROVEN: This OS independent rack console is universally compatible w/ leading servers and backed by a StarTech.com 2-year warranty and free lifetime 24/5 multilingual technical support
- HEAVY DUTY: LCD KVM drawer has durable steel construction and heavy duty rail design that supports frequent use in operating environments from 0C to 40C (32F to 104F) with an MTBF of 50,000 hours
- INTEGRATED DESIGN: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 22" [56 cm] to 35" [90 cm] (incl. mounting hardware)
- PROFESSIONAL & SECURE: Customizable hot-keys, on-screen display (OSD), multi-level user security, user access levels / port permissions, & auto scan
- TECH SPECIFICATIONS: Rackmount KVM Console, 17" Active Matrix TFT LCD Monitor, 1280 x 1024, 8 port VGA KVM switch w/ 6 ft. cables, 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0
| Brand | |
|---|---|
| Brand | StarTech.com |
| Screen / Display | |
|---|---|
| Screen Size | 17" |
| Screen Resolution | 1280 x 1024 |
| Display Screen Type | LCD |
| Screen Mode | SXGA |
| Power & Battery | |
|---|---|
| Input Voltage Range | 100V AC to 240V AC |
| Input Voltage | 230 V AC |
| Input Current | 1.50 A |
| Power Consumption | 13 W |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 2 |
| Input Devices | |
|---|---|
| Keyboard | Yes |
| Pointing Device Type | TouchPad |
| Size / Dimensions | |
|---|---|
| Rack Height | 1U |
| General Features | |
|---|---|
| KVM Switch | Yes |
| Manufacturer | StarTech.com |
| Device Type | LCD Rack Console |
| Number of Computers Supported | 8 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Number of VGA Ports | 1 |
| Misc Ports | |
|---|---|
| Proprietary Interface | Yes |
| Number of PS/2 Ports | 2 |
| PS/2 Port | Yes |
| Number of Proprietary Ports | 8 |
| Compliance & Certification | |
|---|---|
| REACH free of SVHC | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Miscellaneous | |
|---|---|
| Product Name | 8-Port Rackmount KVM Console with 17" Display |
