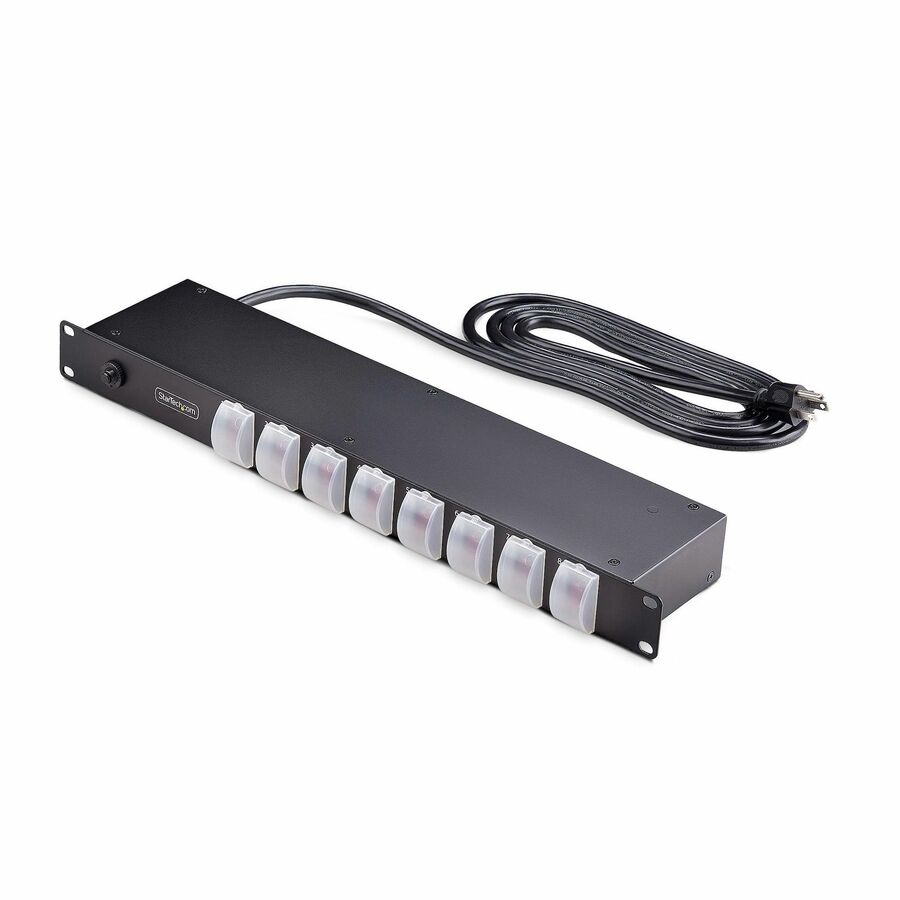

This 1U 8-Outlet Rack Mount Horizontal PDU features a built-in 8ft. (2.4m) NEMA 5-15P power cord and 8x NEMA 5-15R outlets, delivering 125V maximum input/output. With a 15A circuit breaker, this unit ensures the protection and stable operation of your critical equipment.
Individual On/Off Outlet Switches
Each outlet on the PDU is equipped with an independent/individual illuminated rocker switch, allowing for precise power management and control. The clearly enumerated switch labels make it easy to identify the switch to manage each connected device. Safety covers on the switches prevent accidental power cycling, adding an extra layer of security to the setup. This feature is particularly valuable in environments where uptime and equipment protection are paramount.
15A circuit Breaker
The 1U 8-Outlet Rack Mount PDU features a robust 15 amp circuit breaker, designed to provide unparalleled protection for your connected equipment. This self-tripping and resettable breaker ensures that in the event of an overload or electrical fault, power is immediately cut off to prevent damage to your valuable devices. The 15A trip-point is precisely calibrated to handle the power demands of server rooms, data centers, and other professional IT environments, offering peace of mind and reliable operation. By swiftly interrupting the power supply in adverse conditions, this circuit breaker not only safeguards your equipment but also minimizes downtime and maintenance efforts, making it an essential component for any high-performance power distribution setup.
1U Rack Mount Design
Engineered for compatibility, the 1U rack design easily installs into any 19-inch server rack that is four inches or deeper, utilizing just 1U of rack space. Adhering to ANSI/EIA RS-310-D standards, this horizontal-mount PDU is a perfect fit for any network rack, ensuring a streamlined and organized power distribution system.
The PDU features an optimized design with heavy-duty steel housing and rear-facing outlets, maximizing space efficiency and durability, making it a reliable addition to any professional IT environment. Additionally, the attached 8 ft. (2.4m) power cord provides the flexibility and reach needed to accommodate various rack configurations, simplifying the setup process.
- PDU provides power control as remote controlled relay & load monitoring
- With a built-in digital current meter avoid potential overloads via switched PDUs
- NEMA 5-15R receptacle type to ensure maximum dependability and optimal performance
- NEMA 5-15P plug/connector type for better, dependable connectivity and desired power output
- 120 V AC input voltage for better reliance and maximum dependability
- 125 V AC output voltage for better reliance and maximum usability
| Brand | |
|---|---|
| Brand | StarTech.com |
| Power & Battery | |
|---|---|
| PDU Type | Switched |
| Remote Outlet Switching | Yes |
| Circuit Breaker | Yes |
| Receptacle Detail | 8 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Detail | 1 x NEMA 5-15P |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 15 A |
| Load Capacity (VA) | 1800 W |
| Power Rating (VA) | 1800 VA |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Horizontal |
| Rack Height | 1U |
| General Features | |
|---|---|
| Protection Type | Circuit Breaker |
| Manufacturer | StarTech.com |
| Cables | |
|---|---|
| Cord Length | 8 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 23°F (-5°C) |
| Maximum Storage Temperature | 122°F (50°C) |
| Minimum Storage Temperature | 14°F (-10°C) |
| Maximum Operating Humidity | 95% |
| Minimum Operating Humidity | 5% |
| TAA Compliant | Yes |
