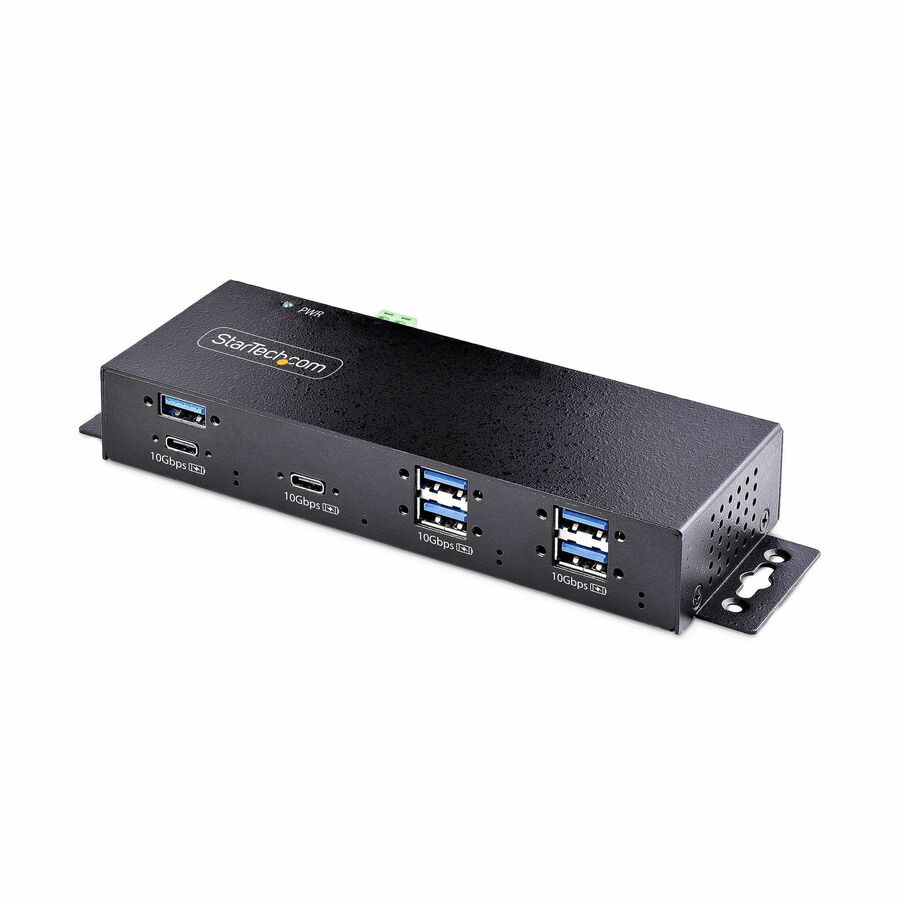

The 7-Port Industrial USB 10Gbps Hub with Power Adapter features 5x USB-A and 2x USB-C device ports. Built with a durable all-metal enclosure, it withstands harsh and industrial environments while offering Level-4 Electrostatic Discharge (ESD) protection (15kV Air / 8kV Contact) to safeguard connected devices. For secure connections, this hub includes two 3.3ft (1m) USB cables (USB-C to C & USB-C to A) with side screw locking to prevent accidental disconnection. The hub can be surface-mounted (on or under a desk, wall-mounted) or DIN rail-mounted, ensuring a secure and space-efficient installation.
Power & Charging
This versatile hub can be powered via the included universal power adapter or the 7-24V DC terminal block, making it ideal for industrial settings or where standard power outlets may be limited.
When not connected to a host, the hub functions as a dedicated charging station, supporting BC1.2 charging / Dedicated Charging Port (DCP) across all ports. Each port delivers up to 2.4A, with a total power budget of 40W (8A) when all ports are in use, ensuring efficient charging for multiple high-powered peripherals.
High-Speed Data Transfer
With speeds of up to 10Gbps on all downstream ports, this hub is ideal for data storage banks, SSDs, NVMe enclosures, RAID drive enclosures, and 3D printers/scanners. It is fully backwards compatible with USB 3.2 Gen 1 (5Gbps), USB 2.0, and USB 1.x devices.
OS-Independent
This TAA Compliant hub is compatible with all operating systems and host devices and has been tested for compatibility with Windows, macOS, Linux, and ChromeOS.
- 7-PORT INDUSTRIAL USB HUB: Plug-and-play USB 3.2 Gen 2 hub with durable metal housing, ideal for harsh environments; Features 5x USB-A plus 2x USB-C ports with 10Gbps shared bandwidth, ESD Protection (15kV air/8kV contact) and 350W surge protection
- VERSATILE MOUNTING: Securely install on or under a desk, wall, or DIN rail with built-in mounting ears and included DIN clips; Includes two 3.3ft (1m) USB-C to C/USB-C to A cables with screw lock USB-C host connector to prevent unwanted disconnections
- HIGH-SPEED DATA TRANSFER: Achieve speeds up to 10Gbps on all downstream ports, ideal for data storage banks, SSDs, NVMe enclosures, RAID enclosures, 3D printers/scanners, and more; Backwards compatible with USB 3.0 (5Gbps), 2.0 and 1.x
- POWER AND CHARGE: Functions as a charging station when not connected to a host; Provides 12W (2.4A) on all ports up to a total 40W draw; Powered via universal adapter (included) or 7-24V DC terminal block
- COMPATIBILITY: OS independent and tested for compatibility with Windows/macOS/Linu
| Brand | |
|---|---|
| Brand | StarTech.com |
| Storage | |
|---|---|
| RAID Supported | Yes |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 7 |
| USB Version | 3.2 Gen 2 |
| USB Connector Type | Type-A |
| Size / Dimensions | |
|---|---|
| Form Factor | Surface/DIN Rail Mountable |
| General Features | |
|---|---|
| Data Transfer Rate | 640 MB/s |
| Manufacturer | StarTech.com |
| Misc Ports | |
|---|---|
| Host Interface | USB 3.2 Gen 2 |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
