The DPEXT6L 6-foot, DisplayPort Video Extension Cable supports 21.6 Gbps bandwidth, giving a full 4K x 2K (3840 x 2400 at 60Hz) resolution and 3D Stereo display (2560 x 1600 at 120Hz). This DP1.2 cable also provides additional features such as High Bit Rate 2 (HBR2), 8 Audio Channels, Multi-Stream Transport (MST) for connecting multiple displays and Global Time Code (GTC) for sub-micro video/audio sync.

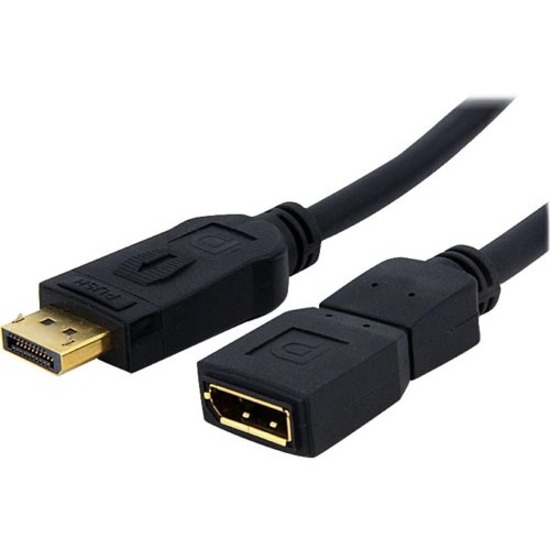

This DisplayPort v1.2 Video Extension Cable adds an extra 6ft to any DisplayPort cable. The extension cable features latching connectors with gold-plated pins for superior conductivity and is backed by our Lifetime Warranty.
More from the Manufacturer
- SPECS: 6 feet (1.8 m)
- Black
- DP v1.2
- DisplayPort Male to Female extension cable
- 30 AWG
- PVC cable jacket, ABS connector shell
- Shield: Double sided copper foil
- HBR2, MST, GTC
- Backward compatible w/ DP1.1
- Lifetime Warranty
- APPLICATIONS: Add extra 6ft to your DP cables; Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100 graphic cards; Use with 1080p/UHD/4K monitors/projector/display
- QUALITY CONSTRUCTION: DP extension cable has 30AWG wire with gold-plated pins for improved signal integrity and reliability; DisplayPort extender cable has superior EMI shielding with double sided copper foil to provide higher quality video and audio
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief and jacket prevent fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching connector prevents accidental disconnection
- DISPLAYPORT EXTENSION CABLE: 6 ft (1.8 m) DP v1.2 male to DP female cable / cord; 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
| Brand | |
|---|---|
| Brand | StarTech.com |
| Screen / Display | |
|---|---|
| Supported Resolution | 3840 x 2400 |
| Size / Dimensions | |
|---|---|
| Shipping Height | 6.97" |
| Shipping Width | 0.79" |
| Shipping Weight (Approximate) | 5.76 oz |
| General Features | |
|---|---|
| Data Transfer Rate | 21.6 Gbit/s |
| Manufacturer | StarTech.com |
| Cables | |
|---|---|
| Conductor | Copper |
| Cable Length | 6 ft |
| Cable Type | DisplayPort |
| Cable Characteristic | Extension Cable |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Female |
| Connector Gender on Second End | Female |
| Contact Plating | Gold |
| Connector Plating | Nickel |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Type | CMG |
| Shielding | Yes |
| American Wire Gauge | 28 AWG |
| Compliance & Certification | |
|---|---|
| REACH free of SVHC | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Miscellaneous | |
|---|---|
| Product Name | DisplayPort Video Extension Cable - M/F - 6 ft |
