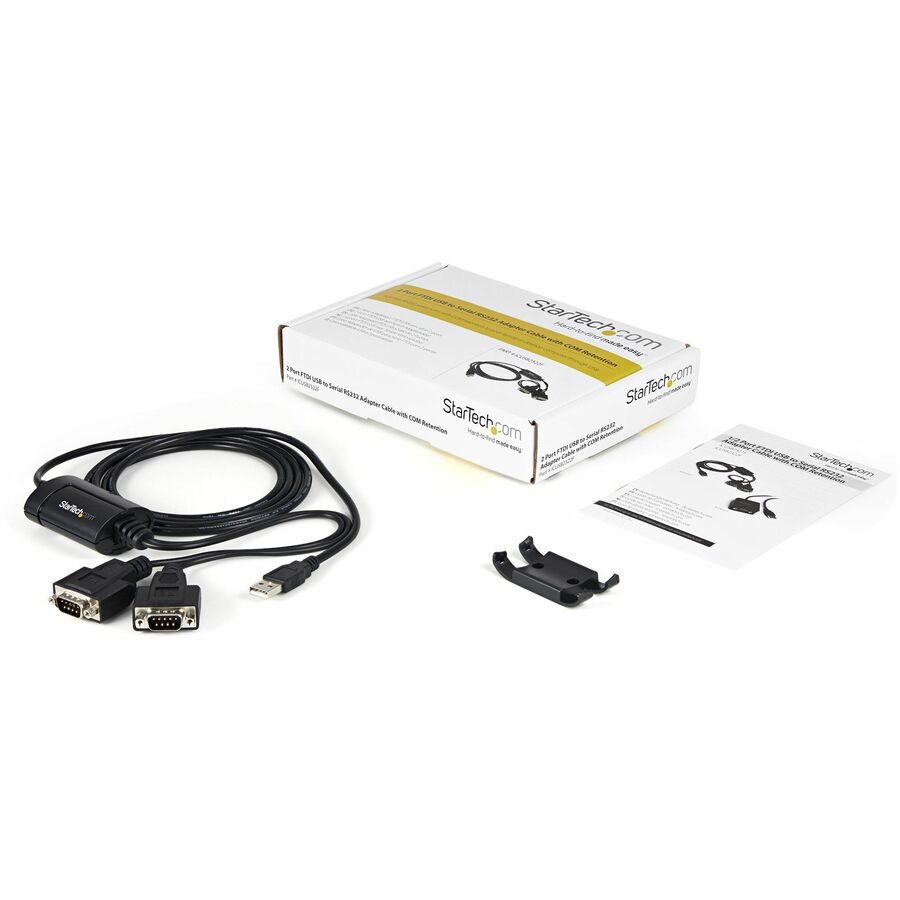

The ICUSB2322F 2-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into 2 RS232 serial DB9 ports to connect, monitor and control your serial devices.
This compact adapter features COM retention, allowing the same COM port values to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. Unlike most USB-serial adapters, this one uses the FTDI chipset, which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.
This USB-serial adapter is compatible with a broad list of Operating Systems, including Windows®, Windows CE, Mac OS and Linux, making this product the perfect solution for integrating into mixed environments.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
- TECH SPECS: 6 feet (1.8 meters); FTDI FT2232D Chipset; Max Baud Rate: 921.6 Kbps; 128 Bytes FIFO; None/Odd/Even/Mark/Space Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits; TAA Compliant
- EASY INSTALLATION: This serial adapter ensures easy installation and operation with COM port retention that provides robust serial connectivity for legacy devices
- COMPACT DESIGN: Designed with a small form factor, this serial RS232 converter is USB powered and requires no bulky power adapters or an outlet; Wall mountable design
- MULTI-USE FUNCTIONALITY: This versatile USB to serial RS232 adapter is perfect for a range of applications, from digital signage to connecting point-of-sale systems and barcode scanners
- CUSTOMIZABLE SOLUTION: This USB serial hub features an FTDI chipset, making it highly customizable and compatible, and the ideal solution for any setup; Integrated 2500Vrms Optical Isolation Circuits
| Brand | |
|---|---|
| Brand | StarTech.com |
| General Features | |
|---|---|
| Number of Ways | 2-way |
| Manufacturer | StarTech.com |
| Cables | |
|---|---|
| Cable Length | 6 ft |
| Connector Type on First End | USB 2.0 Type A - Male |
| Connector on First End Details | 1 x 4-pin USB 2.0 Type A - Male |
| Connector Gender on First End | Male |
| Connector Type on Second End | DB-9 RS-232 Serial - Male |
| Connector on Second End Details | 2 x 9-pin DB-9 RS-232 Serial - Male |
| Connector Gender on Second End | Male |
| Compliance & Certification | |
|---|---|
| REACH free of SVHC | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
