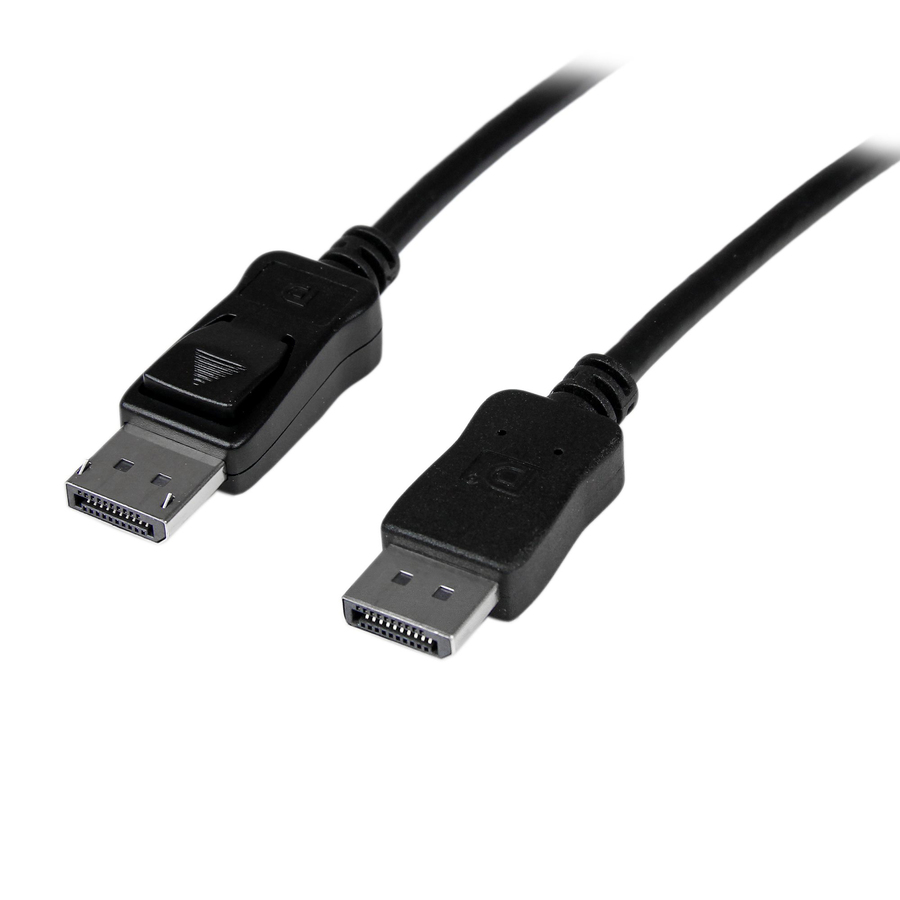

Connect DisplayPort®-equipped devices up to 15m away with no signal loss. The DISPL15MA 15m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 50 feet (15m) between your DisplayPort-enabled devices - more than double the DisplayPort connection distance limitation of 16ft, with no signal loss. This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed. The 15m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560?-1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly. This 15-meter Active DisplayPort cable is backed by StarTech.com''s 2-year Warranty. Please Note: This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the "source" and "display" labels on the DisplayPort connectors, in order to ensure that the display device (monitor, projector etc.) and the DisplayPort source are connected properly. More from the Manufacturer
- SPECS: 15 m (49.2 ft)
- Black
- DisplayPort v1.1 Latching Male to Male
- 32 AWG
- PVC cable jacket
- Shield: Al-Mylar foil with Braid
- Protocols: HBR, MST, GTC
- 2-Year Warranty
- Note: DP connector labelled "Display" connects to the display side
- APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms, works with your laptop/professional workstations with FirePro™ S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with UHD/4K monitors, projector or large display
- LIGHT AND DURABLE CABLE: Long-lasting light-weight cable; 32AWG wire; Flexible PVC jacket; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
- ACTIVE CIRCUITRY: Active bus powered amplifier boosts video signals over longer distances up to 15 m (49.2 ft) (no external power supply needed), supports additional color spaces
- ACTIVE DISPLAYPORT CABLE: Active 15m (49.2ft) DisplayPort cable supports 4K (3840 x 2160p at 30Hz), 10.8 Gbps bandwidth,
| Brand | |
|---|---|
| Brand | StarTech.com |
| Screen / Display | |
|---|---|
| Supported Resolution | 3840 x 2160 |
| Size / Dimensions | |
|---|---|
| Shipping Height | 1.81" |
| Shipping Width | 10.04" |
| Shipping Weight (Approximate) | 1.45 lb |
| General Features | |
|---|---|
| Data Transfer Rate | 21.6 Gbit/s |
| Manufacturer | StarTech.com |
| Cables | |
|---|---|
| Conductor | Copper |
| Cable Length | 49.21 ft |
| Cable Type | DisplayPort |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Gender on Second End | Male |
| Connector Plating | Nickel |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Type | CMG |
| Shielding | Yes |
| American Wire Gauge | 32 AWG |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
