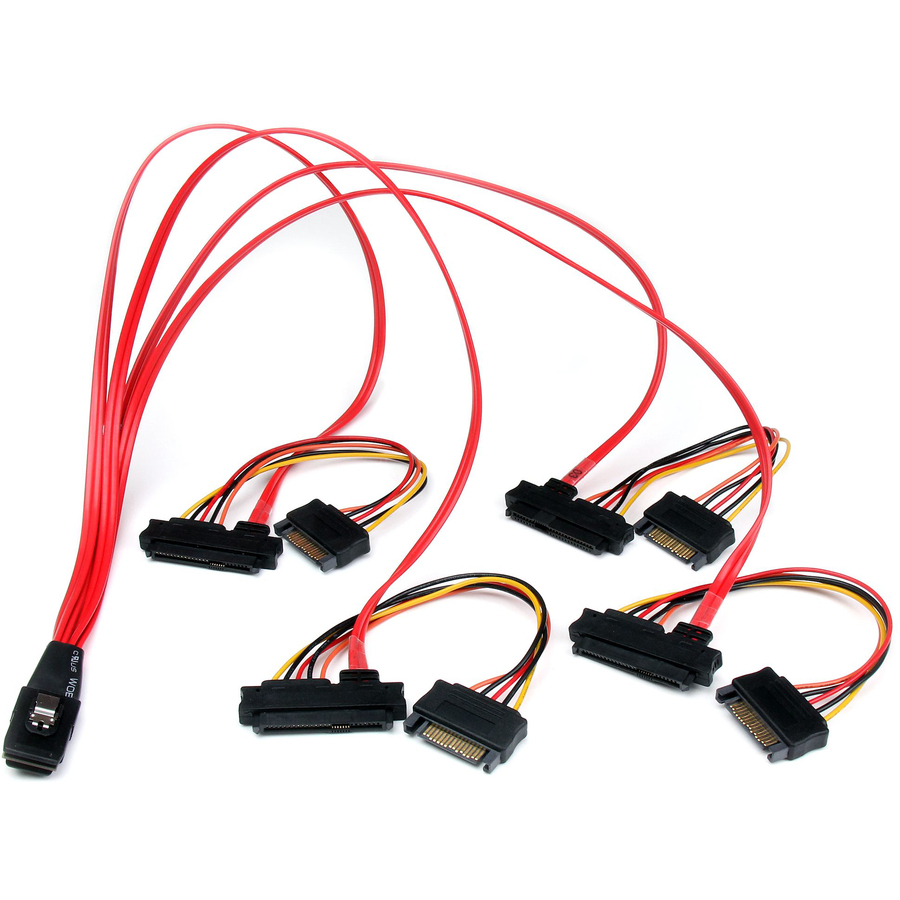

The SAS808782P50 Mini SAS to SAS cable (50cm) features one 36-pin SFF-8087 plug, which fans out to four individual 29-pin SFF-8482 receptacles, providing a reliable solution for connecting multiple SAS HDD drives (with both data and power) to a single mini SAS controller connection.
This high quality internal Mini SAS to SAS cable is designed for long-lasting dependability and reliable performance and is backed by our lifetime warranty.
More from the Manufacturer
- Supports up to 6Gbps throughput per channel
- 4x SFF-8482 connections, each with data and power
- 1x SFF-8087 connector
| Brand | |
|---|---|
| Brand | StarTech.com |
| Size / Dimensions | |
|---|---|
| Shipping Height | 2.36" |
| Shipping Width | 2.36" |
| Shipping Weight (Approximate) | 3.52 oz |
| General Features | |
|---|---|
| Manufacturer | StarTech.com |
| Cables | |
|---|---|
| Connector on Second End Details | 4 x 15-pin SATA - Male , 4 x 29-pin SFF-8482 |
| Conductor | Copper |
| Cable Length | 1.64 ft |
| Cable Type | SAS/SATA |
| Connector Type on First End | SFF-8087 Mini-SAS - Male |
| Connector on First End Details | 1 x 36-pin SFF-8087 Mini-SAS - Male |
| Connector Gender on First End | Male |
| Connector Type on Second End | SFF-8482 |
| Connector Gender on Second End | Male |
| American Wire Gauge | 30 AWG |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
StarTech.com 50cm Internal Serial Attached SCSI Mini SAS Cable - SFF8087 to 4x SFF8482 - Connect a SAS Controller to 4 SAS drives - SFF 8087 to SFF 8482 - sff8087 to sff8482 - internal mini sas cable
