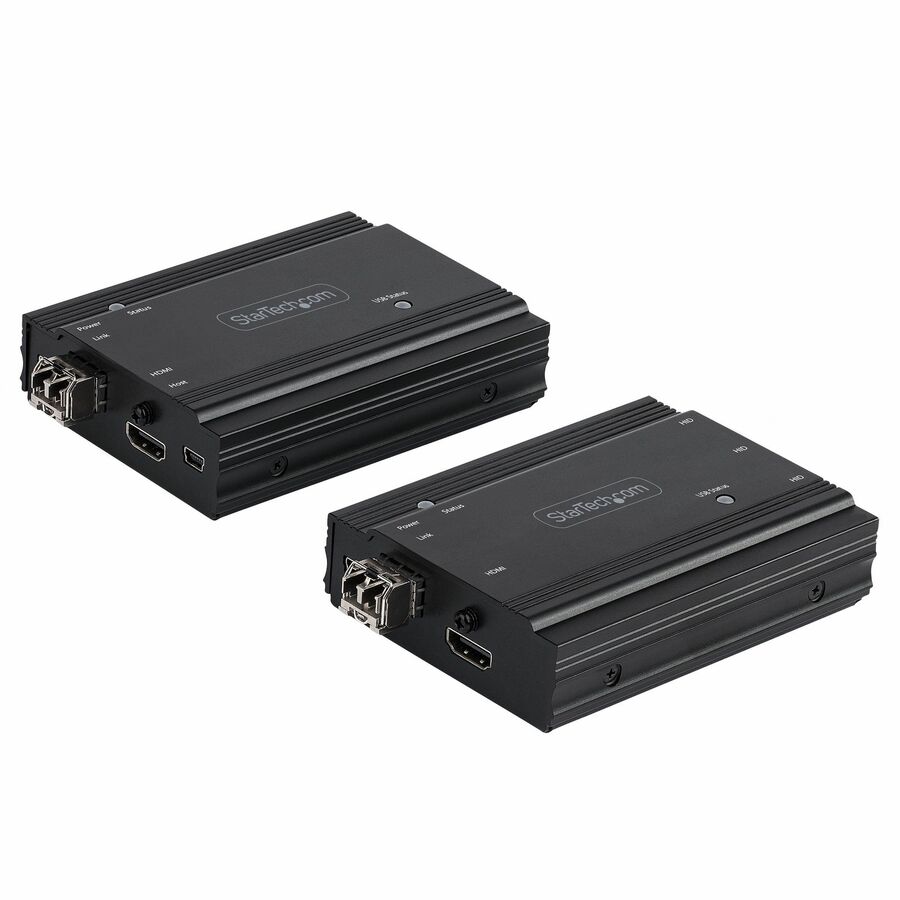

This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over a point-to-point fiber connection. When combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features three USB HID ports that enable you to connect HID devices, like your keyboard and mouse. Supports UHD 4K 60Hz The HDMI KVM extender delivers up to 4K 60Hz UHD picture quality to your remote display with support for 4:4:4 chroma sampling. Hassle-Free Installation The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display using 10G LC multi mode fiber cabling SV565FXHD4KU is backed by a 2-year warranty and free lifetime technical support. More from the Manufacturer
- REMOTE ACCESS: USB & 4K HDMI KVM extender over fiber controls a KVM switch/console or PC using a fiber optic cable at distances up to 984'/300m (multimode cable) or 1,640'/500m (single mode cable); open SFP+ slots for use w/ MSA compliant 10G SFP+ modules
- 4K 60Hz VIDEO: HDMI transmitter and receiver extender kit achieves UHD resolutions up to 3840 x 2160 @ 60Hz, supporting 4:4:4 image sampling for accurate color & image for applications requiring high resolution video like digital signage & security
- DIGITAL AUDIO & HDMI 2.0 VIDEO: Keyboard Video Mouse Extender with EDID passthrough transfers display capabilities to the video source, maximizing compatibility between devices; Digital 7.1 surround audio over HDMI for high quality sound; HDCP 2.2 support
- SPECS: HDMI 2.0 Fiber Optic KVM Extender
- 3x USB 1.1 HID
- OS Independent
- EDID Passthrough
- Supports MM or SM SFP+
- 2x 10G Multimode SFP+ modules inc.
- LC Connectors
- 300m/984 ft (MM) or 500m/1,640 ft (SM) max extension range
- 2 year Warranty
- EASY
| Brand | |
|---|---|
| Brand | StarTech.com |
| GPU / Graphics | |
|---|---|
| Graphic Mode | 4K |
| Power & Battery | |
|---|---|
| Input Voltage Range | 100V AC to 240V AC |
| Input Voltage | 240 V AC |
| Power Consumption | 10 W |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 6 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Ports | 6 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 x 2160 |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 15.87 oz |
| Receiver Length | 3.90" |
| Transmitter Length | 3.94" |
| Receiver Width | 2.95" |
| Receiver Weight (Approximate) | 15.87 oz |
| Receiver Height | 1.10" |
| Transmitter Height | 1.10" |
| Transmitter Width | 2.95" |
| General Features | |
|---|---|
| Maximum Operating Distance | 984 ft |
| Manufacturer | StarTech.com |
| Device Type | KVM Extender |
| Number of Computers Supported | 1 |
