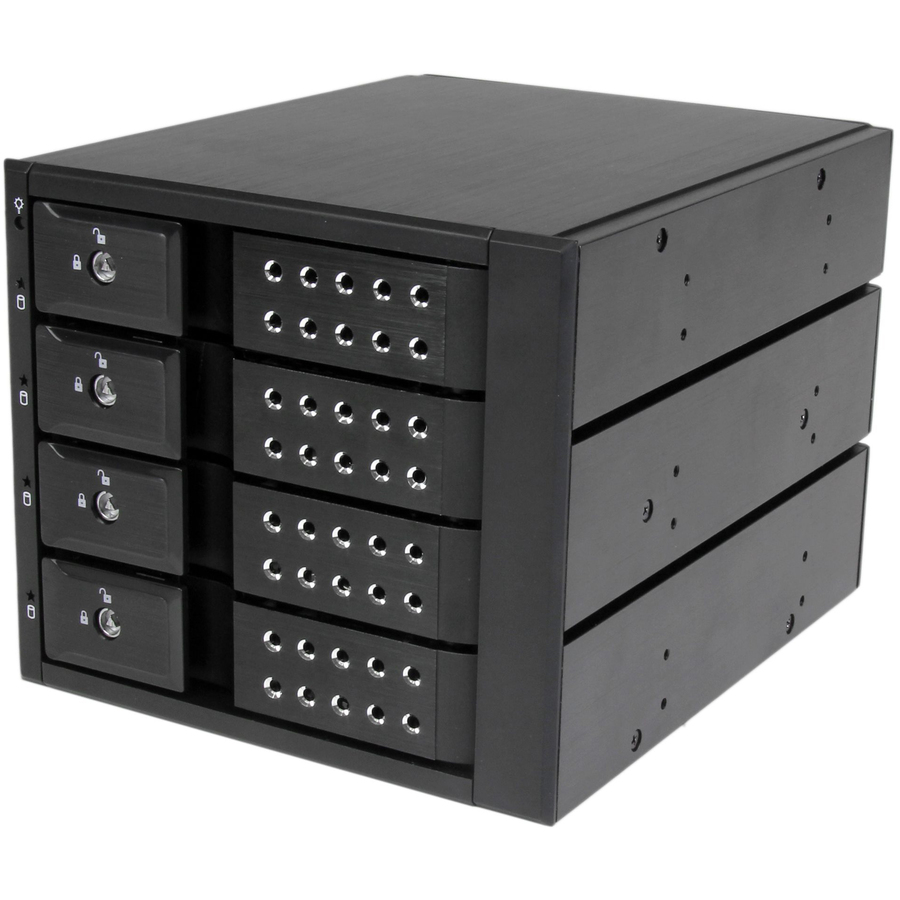

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5" SATA or SAS hard drives (HDD).
For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.
The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- UL94 - V0 flammability rating
- Power and Activity LEDs for each drive
- Support for SAS revision I/II (3.0/6.0 Gbps)
- Trayless design for easier hot swapping
- Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
- Installs in three 5.25" drive bays
- Built-in fan
- 4 drive bay design
- Solid aluminum construction
- Key lock design
| Brand | |
|---|---|
| Brand | StarTech.com |
| Storage | |
|---|---|
| Number of Hard Drives Install | No |
| Number of Hard Drives Support | 4 |
| Number of Hard Drives Installed | No |
| Drive Interface | Serial Attached SCSI (SAS) |
| Number of Hard Drives Supported | 4 |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Internal |
| Compatible Drive Bay Width | 5.25" |
| General Features | |
|---|---|
| Cooling Fan | Yes |
| Manufacturer | StarTech.com |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Misc Ports | |
|---|---|
| Host Interface | Serial ATA/600 |
| Compliance & Certification | |
|---|---|
| REACH free of SVHC | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
