Connect an 8K/4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 2.1 DP80 Cable. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 8K workstations, high performance GPUs, and dedicated AV applications including media production and content creation.
Seamless Compatibility
For seamless operation between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is VESA Certified for guaranteed DP 2.1 and backward compatibility (DP 2.0/1.4/1.2). It supports G-Sync and FreeSync, enhancing Variable Refresh Rate (VRR) performance for optimal picture quality between high-capacity GPUs and supported displays.
Durable Design
This DisplayPort cable features a flexible TPE outer jacket that is tested to withstand 600 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection. The connectors are rated to operate beyond 10,000 insertions.
Supported DisplayPort 2.1 Features:
This DP80 DisplayPort cable supports the following DP 2.1 features:
- UHBR20 supports high refresh rates including uncompressed 5K 144Hz and 4K 240Hz
- DSC-compressed video up to 16K 60Hz / 10K 144Hz / 8K 240Hz 4:4:4 8-bit
- Uncompressed video resolutions up to 10K 60Hz / 8K 60Hz / 4K 240Hz 4:4:4 8-bit
- High-Bandwidth Digital Content Protection (HDCP) 2.3 for a secure connection between source and display
- High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality
- Display Stream Compression (DSC) 1.2a for maximum resolution output
- Multi-Stream Transport (MST) for daisy-chaining multiple monitors
- 32 Uncompressed Digital Audio Channels
- Backward compatible with previous DP versions
This DP 2.1 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.
- DELIVER UNCOMPRESSED 10K 60HZ VIDEO: Connect this DP 2.1 (DP80) Cable to an ultra-high resolution display for vivid, uncompressed 10K/8K 60Hz/4K 240Hz video with HDR support and HDCP 2.3; Enable immersive sound quality with 32-channel and 7.1 surround audio
- CERTIFIED FOR GUARANTEED PERFORMANCE: Trust this VESA-Certified DP 2.1 cable for guaranteed DP80 (80Gbps) bandwidth with UHBR20 link rate support, ensuring full 10K 60Hz performance and up to 16K 60Hz / 8K 240Hz with Display Stream Compression (DSC 1.2a)

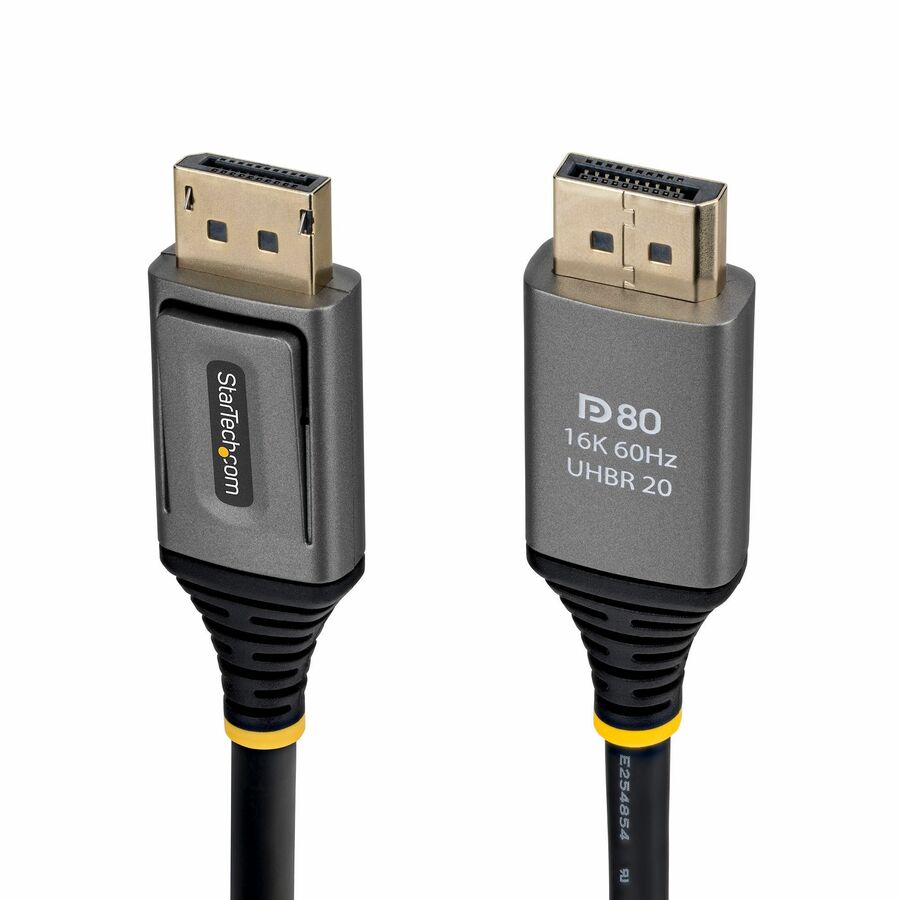

- IDENTIFY SPECS INSTANTLY: DP2.1 (DP80) specs printed on each Quick ID connector remove guesswork and confirm feature support at-a-glance; The eco-friendly TPE jacket is flexible and durable, designed to withstand tight bends and is RoHS-compliant
- FOR HIGH-RESOLUTION WORKFLOWS: Optimize high performance GPUs and AV workstations at UHD resolutions beyond 4K; Achieve sharp 10K/8K picture at 10-bit and 8-bit 4:4:4 chroma; Works with USB-C to DP adapters for laptops such as Apple M-series Pro/Max MacBooks
- THE I
| Brand | |
|---|---|
| Brand | StarTech.com |
| Screen / Display | |
|---|---|
| Supported Resolution | 10240 x 4320 |
| Size / Dimensions | |
|---|---|
| Outer Diameter | 0.20" |
| General Features | |
|---|---|
| Data Transfer Rate | 80 Gbit/s |
| Manufacturer | StarTech.com |
| Brand Compatibility | Apple |
| Cables | |
|---|---|
| Cable Length | 3 ft |
| Cable Type | DisplayPort |
| Connector Type on First End | DisplayPort 2.1 Digital Audio/Video - Male |
| Connector on First End Details | 1 x DisplayPort 2.1 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector Type on Second End | DisplayPort 2.1 Digital Audio/Video - Male |
| Connector Gender on Second End | Male |
| Connector Plating | Nickel |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Jacket Type | VW-1 |
| Shielding | Yes |
| Shielding Material | Aluminum Mylar Foil |
