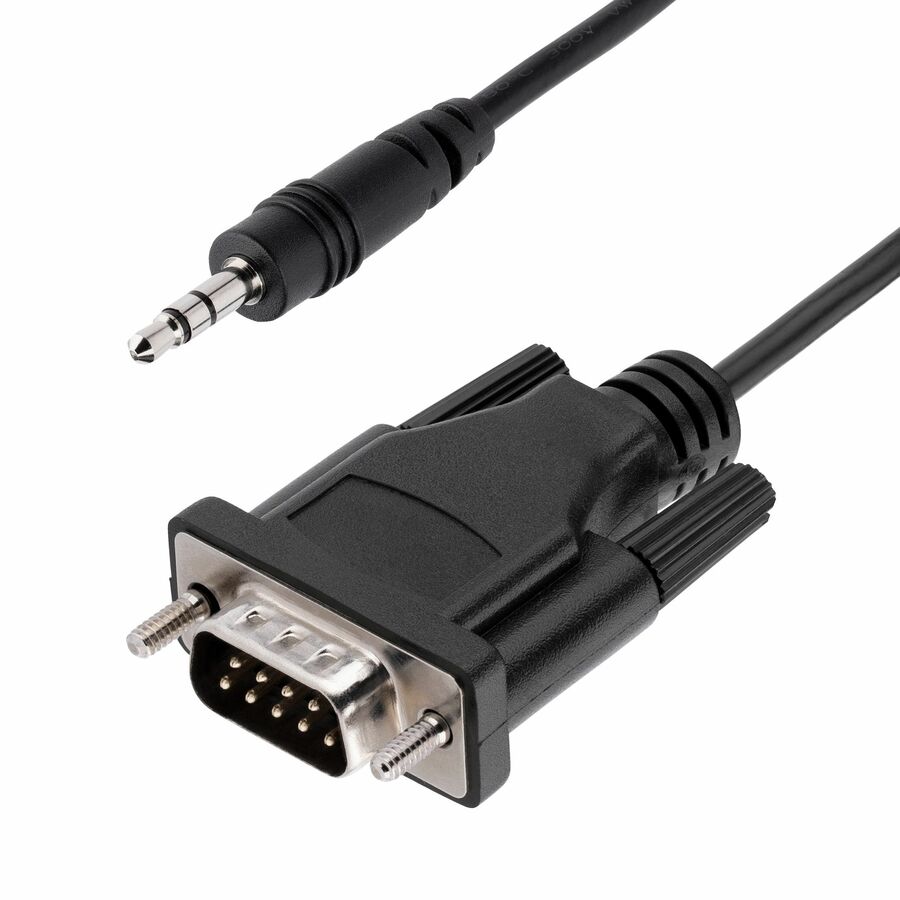

This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.
High Quality Construction
The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.
Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption
DB9 Serial to 3.5mm Pinout
DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
More from the Manufacturer
- Makes transferring data effortless and secure, providing dependable speed and consistent functionality for all supported devices
- EMI Protection feature ensures dependable operation and improved usability, delivering consistent performance for everyday connectivity needs
- Features DB-9 RS-232 Serial - Male connector to simplify connection with a projector, ensuring quick setup and dependable operation
| Brand | |
|---|---|
| Brand | StarTech.com |
| Size / Dimensions | |
|---|---|
| Shipping Height | 0.40" |
| Shipping Width | 5" |
| Shipping Weight (Approximate) | 0.80 oz |
| General Features | |
|---|---|
| Manufacturer | StarTech.com |
| Cables | |
|---|---|
| Cable Length | 3.28 ft |
| Connector Type on First End | Mini-phone Stereo Audio - Male |
| Connector on First End Details | 1 x Mini-phone Stereo Audio - Male |
| Connector Type on Second End | DB-9 RS-232 Serial - Male |
| Connector Gender on Second End | Male |
| Connector Plating | Nickel |
| Connector Material | Polyvinyl Chloride (PVC) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Shielding | Yes |
| Shielding Material | Aluminum Mylar |
| American Wire Gauge | 28 AWG |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | DB9 to 3.5mm RS232 Serial Cable |
