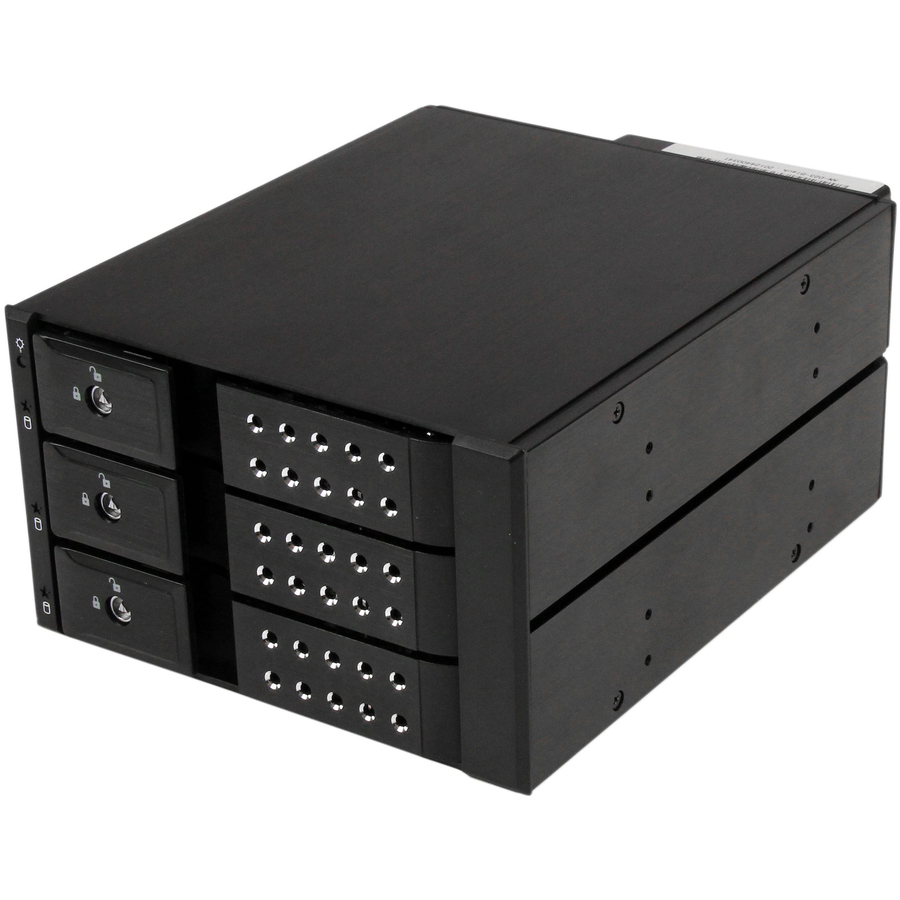

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5" SATA or SAS hard drives (HDD). For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications. For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure. The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer
- Solid aluminum construction
- Key lock design
- Built-in fan
- 3 drive bay design
- Installs in two 5.25" drive bays
- Trayless design for hot swap support
- Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
- Support for SAS revision I/II (3.0/6.0 Gbps)
- UL VO flammability rating
- Power and Activity LEDs for each drive
| Brand | |
|---|---|
| Brand | StarTech.com |
| Storage | |
|---|---|
| Number of Hard Drives Install | No |
| Number of Hard Drives Support | 3 |
| Drive Interface | SATA/600 |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | No |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Internal |
| Compatible Drive Bay Width | 5.25" |
| General Features | |
|---|---|
| Cooling Fan | Yes |
| Manufacturer | StarTech.com |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 3 |
| Number of 3.5" Bays | 3 |
| Misc Ports | |
|---|---|
| Host Interface | Serial ATA/600 |
| Compliance & Certification | |
|---|---|
| REACH free of SVHC | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
