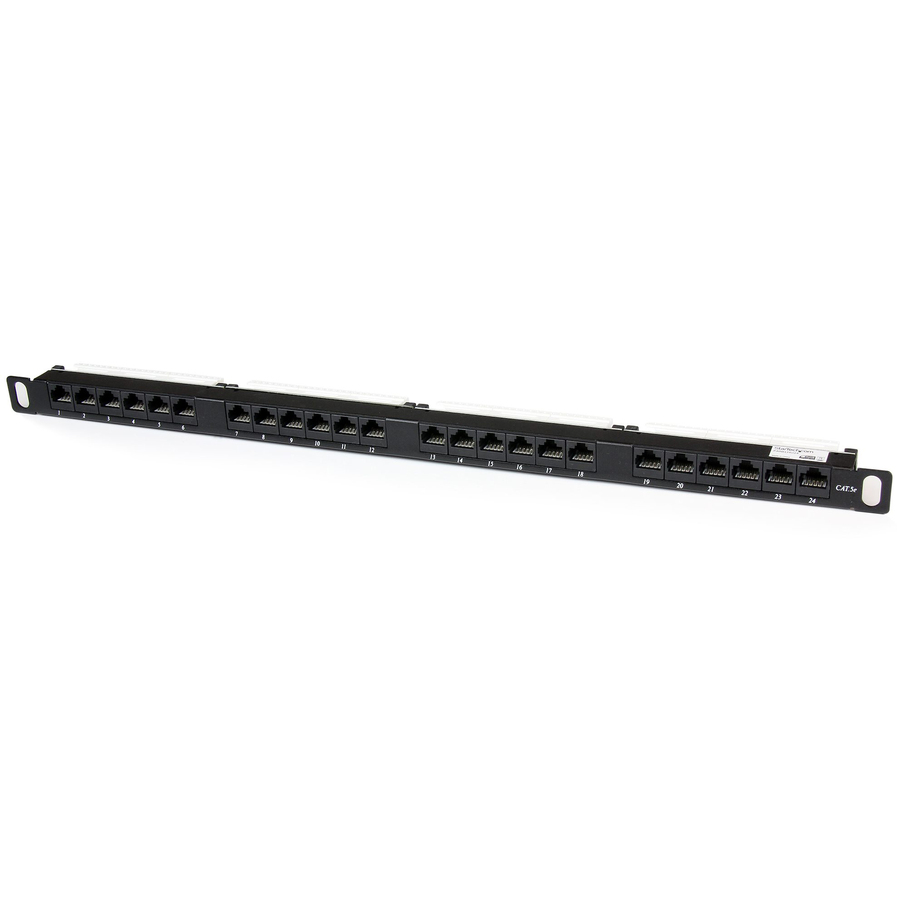

The PANELHU24 Rack Mount Cat5e patch panel condenses 24 ports into a 0.5U panel, making it an ideal solution for smaller installations. Color coded for both T568A and T568B wiring, this network patch panel provides the perfect solution for any voice or LAN application and offers dual type IDC termination. For convenience, the port numbers are clearly marked on the front of each RJ45 port, offering a quick and easy way to identify cable runs. Durably constructed of only top quality materials, this 24-port Ethernet patch panel is backed by StarTech.com's 2 year warranty. More from the Manufacturer
- Color coded for both T568A and T568B installations
- Meets and exceeds ANSI/TIA-568-C.2, ISO/IEC 11801 and EN 50173-1 specifications
- Dual-type IDC headers, situated 180° relative to the RJ45 ports, terminated using 110-type punch tool
- High impact plastic housing, flame retardant UL 94V-0
| Brand | |
|---|---|
| Brand | StarTech.com |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 24 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 0.5U |
| General Features | |
|---|---|
| Manufacturer | StarTech.com |
| Misc Ports | |
|---|---|
| Total Number of Ports | 24 |
| Telephony | |
|---|---|
| Number of RJ-11 Ports | 24 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
StarTech.com 24 Port 0.5U Cat5e Patch Panel - RJ45 Ethernet Rackmount Cat 5e 110 Patch Panel - Organize up to 24 Cat5e patch cables using only 0.5U of rack space - 24 port Cat5e patch panel - 0.5u patch panel - rj45 patch panel - ethernet patch panel - network patch panel
