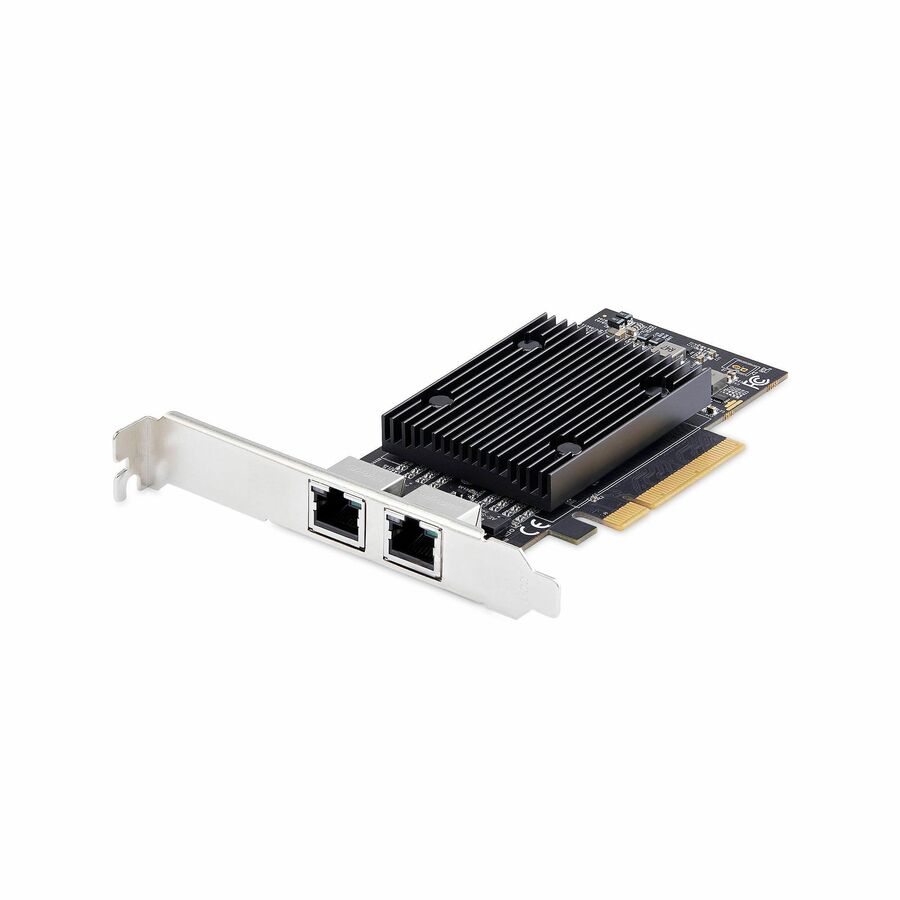

This PCIe network card makes it easy to add two 10GBase-T ports to your server or workstation, providing an affordable solution for high-bandwidth applications. It supports 10GbE over Cat 6 cabling up to 55 meters and Cat 6A cabling up to 100 meters.
Versatile and Cost-Effective
Compatible with a broad range of operating systems, this versatile dual-port NIC reduces network slowdown/degradation when running data-intensive applications/processes such as FTPs and online storage/backup. It's a cost-effective way to enhance your server or computer capabilities by adding two powerful 10-Gigabit Ethernet ports, with support for advanced features such as VLAN tagging, jumbo frames, and Auto-MDIX.
High-Performance Connectivity
This 2-port PCI Express 10GBase-T network card features the Broadcom BCM57416 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer.
Compliant with IEEE 802.1Q standards, this network card offers an efficient way to upgrade or replace your existing network ports with dual 1G/10G-compatible RJ45 ports, delivering up to 10Gbps of throughput per port in each direction (20Gbps total). It connects through a single, four-lane (x8 or higher) PCI Express slot.
Easy Installation
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped for installation in a full-sized chassis and includes a low-profile/half-height installation bracket that you can use as needed.
- TAA-COMPLIANT 10G ETHERNET CARD: Connect a PC to multiple 10GbE networks using an available PCIe x8 (or higher) slot; Broadcom BCM57416 chipset with 20Gbps full-duplex per port and 1G/10GbE auto-negotiation support
- OPTIMIZED FOR SPEED AND EFFICIENCY: Engineered for high-performance networking with support for PXE boot, 802.3ad Link Aggregation, Auto-MDIX, and VLAN tagging; features 9K jumbo frames for enhanced throughput in virtualized and high-traffic environments
- WIDE COMPATIBILITY / FLEXIBLE INSTALLATION: Compatible with Windows 10/11, Linux Ubuntu 20.04/above and WinServer 22/19; Includes full and low-profile brackets for standard / compact systems; Compatible with PCI Express 3.0 and compliant with PCIe Rev 2.0
- MAXIMIZE NETWORK PERFORMANCE: Add two 10GBASE-T ports in a single PCIe NIC to boost connection density / speed; Supports 802.3ad Link Aggregation for higher bandwidth, redundancy, and failover protection; Ideal for cloud computing and fast data transfer
- THE IT PRO'S CHOICE: Designed for reliabilit
| Brand | |
|---|---|
| Brand | StarTech.com |
| Networking & Connectivity | |
|---|---|
| Ethernet Controller Model | BCM57416 |
| Ethernet Controller Manufactu | Broadcom |
| Network Technology | 10GBase-T |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Bracket Height | Low Profile |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 20 Gbit/s |
| Maximum Operating Distance | 328.08 ft |
| Manufacturer | StarTech.com |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| Host Interface | PCI Express 2.0 x8 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| Minimum Operating Humidity (N | 90% |
| Maximum Operating Humidity (N | 5% |
| TAA Compliant | Yes |
