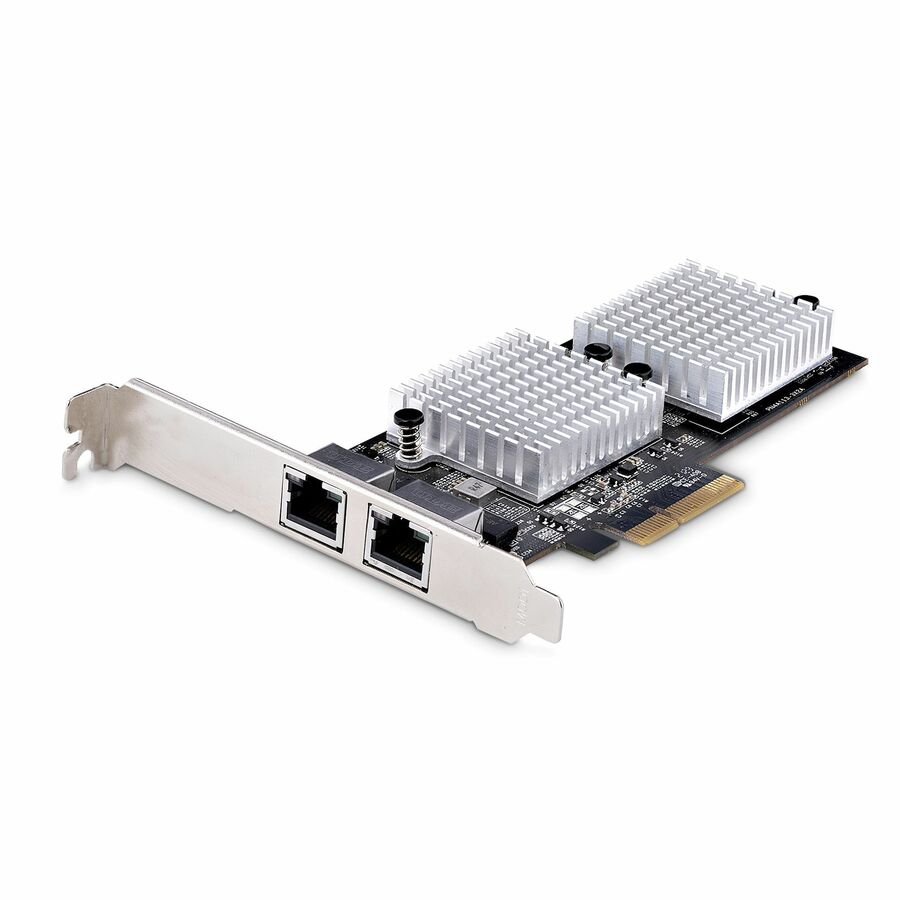

Install this 2-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) with independent controllers into a server or computer to enable fast network speeds and enhanced network functionality by providing failover and redundancy protection to mission-critical servers/applications.
This Card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps with auto-negotiation for instant compatibility with new and legacy hardware. In addition, 10GBASE-T and NBASE-T (2.5GBASE-T/5GBASE-T) capabilities ensure compatibility with the latest network switches and access points manufactured by Cisco®; HPE®; and Aruba Networks®.
10GbE Network Speeds
This PCIe Network Card enables access to two high-bandwidth ethernet connections. As a result, it reduces network degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and streaming online content. The Ethernet Network Card supports 10GBASE-T using existing Cat6 (or better) cable infrastructure.
Enhance Existing Hardware
NBASE-T technology maximizes the capability of Cat5e copper infrastructure over distances of up to 100 meters. The Network Interface Card connects to a PCIe x4 3.0/4.0 (or higher) slot and comes with a full-height bracket preinstalled, and a low-profile bracket is included. This Card is compatible with Windows, Windows Server, and Linux operating systems. Take advantage of advanced features such as load balancing in server or network equipment, bridging two different networks on one system, Audio Video Bridging (AVB), VLAN tagging (802.1Q), 16K-byte Jumbo Frames, full-duplex (FDX), UEFI Secure Boot (SB), and Preboot eXecution Environment (PXE).
More from the Manufacturer
- DUAL PORT 10G ETHERNET CARD: High-performance PCIe 10Gbps dual-port network card with dedicated Marvell chips; Leverage existing Cat5e/Cat6 cabling (or better); NBASE-T compatible (802.3bz); Independent Ethernet controllers for reliable performance
- IT MANAGEABILITY: PXE boot enabled to deployment speeds/updates; 16K jumbo frame for reduced packet overhead; Remotely boot a system using WoL; VLAN support for efficient network management
- MULTI-GIGABIT CONNECTIVITY: Network Interface Card supports auto negotiation; Supports 2.5/5Gbps speeds on Cat5e cabling, 10Gbps on Cat6/6a; NBase-T Ethernet Network Card features IP/TCP/UDP checksum offload, secure boot; PVP & AVB supported in macOS only
- COMPATIBILITY: Network Card for PC is compatible with Windows, Windows Server, and Linux; Six network speeds and included low-profile bracket widen the compatibility of the PCIe Network Card with full-height and small form factor (SFF) systems
- SPECIFICATIONS: 2x RJ45 Ports, Six-Speed NIC 10/5/2.5/1Gbps and 100/10Mbps (Independe
| Brand | |
|---|---|
| Brand | StarTech.com |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-T |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Thickness | 800 mil |
| Bracket Height | Low Profile |
| General Features | |
|---|---|
| Chipset Manufacturer | Marvell |
| Chipset Model | AQC113CS |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Manufacturer | StarTech.com |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| Host Interface | PCI Express 3.0 x4 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Brand | StarTech.com |
| UPC/GTIN | 065030897693 |
| MPN | ST10GSPEXNDP2 |
| Unit Count | 1 Units |
| Warranty | 2 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
| Customer Reviews | 1.0 (1) |
