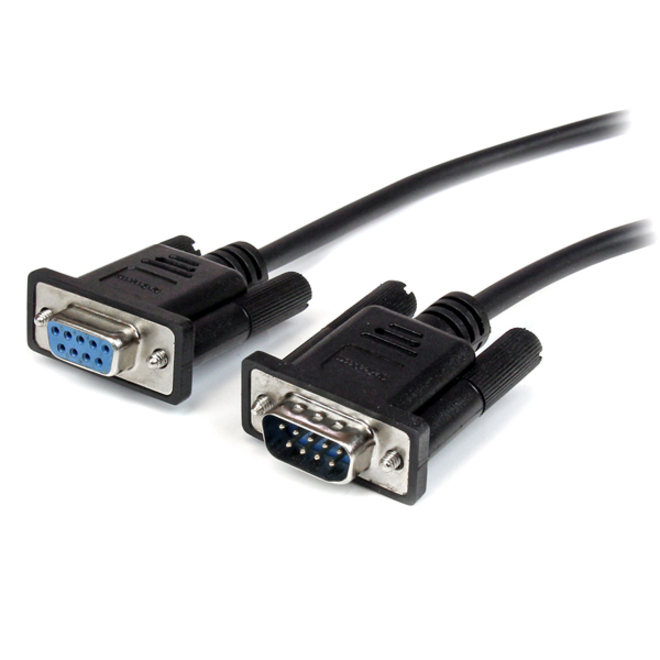

The MXT1001MBK Black Serial Extension Cable (1m) features one DB9 male connector and one DB9 female connector, providing a high quality extension for your RS232 serial devices, which enables you to position your peripheral devices as needed. Note: This is a Straight-through cable, not a null-modem. Expertly designed and constructed of top quality materials to ensure durability, this DB9 extension cable is backed by our Lifetime Warranty. More from the Manufacturer
- SPECIFICATIONS: 1m (3.3ft)
- DB9 serial Male to DB9 female
- Black
- 28AWG, 4.8mm OD
- Al-Mylar cable shield & Metal shell connectors
- Molded PVC strain relief & jacket
- Lifetime Warranty
- Note: This is a Straight-through cable, not a null-modem.
- LIFETIME SUPPORT: Backed by StarTech.com lifetime warranty for dependable performance
- SCREW-ON STRAIGHT THROUGH CABLE: This is Straight-through cable (not a null-modem cable) comes with thumbscrews for reliable tool-less installation and easy removal
- QUALITY CONSTRUCTION: High quality 28 AWG copper wires with Al-Mylar cable shielding and shielded metal shell connectors help prevent EMI interference; Molded PVC connectors with strain relief and PVC jacket prevent damage due to bends or rough usage
- SERIAL EXTENSION CABLE: DB9 Serial male to female cable allows you to extend the reach of your serial devices by up to 1 meter, reducing cable length restrictions and providing flexibility for positioning your serial devices as needed
| Brand | |
|---|---|
| Brand | StarTech.com |
| Size / Dimensions | |
|---|---|
| Shipping Height | 10 mil |
| Shipping Width | 4.92" |
| Shipping Weight (Approximate) | 3.04 oz |
| General Features | |
|---|---|
| Manufacturer | StarTech.com |
| Cables | |
|---|---|
| Cable Configuration | Straight-through |
| Conductor | Copper |
| Cable Length | 3.28 ft |
| Cable Type | Serial |
| Cable Characteristic | Extension Cable |
| Connector Type on First End | DB-9 RS-232 Serial - Male |
| Connector on First End Details | 1 x 9-pin DB-9 RS-232 Serial - Male |
| Connector Gender on First End | Male |
| Connector Type on Second End | DB-9 RS-232 Serial - Female |
| Connector Gender on Second End | Female |
| Connector Plating | Nickel |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Shielding | Yes |
| American Wire Gauge | 28 AWG |
| Compliance & Certification | |
|---|---|
| REACH free of SVHC | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
