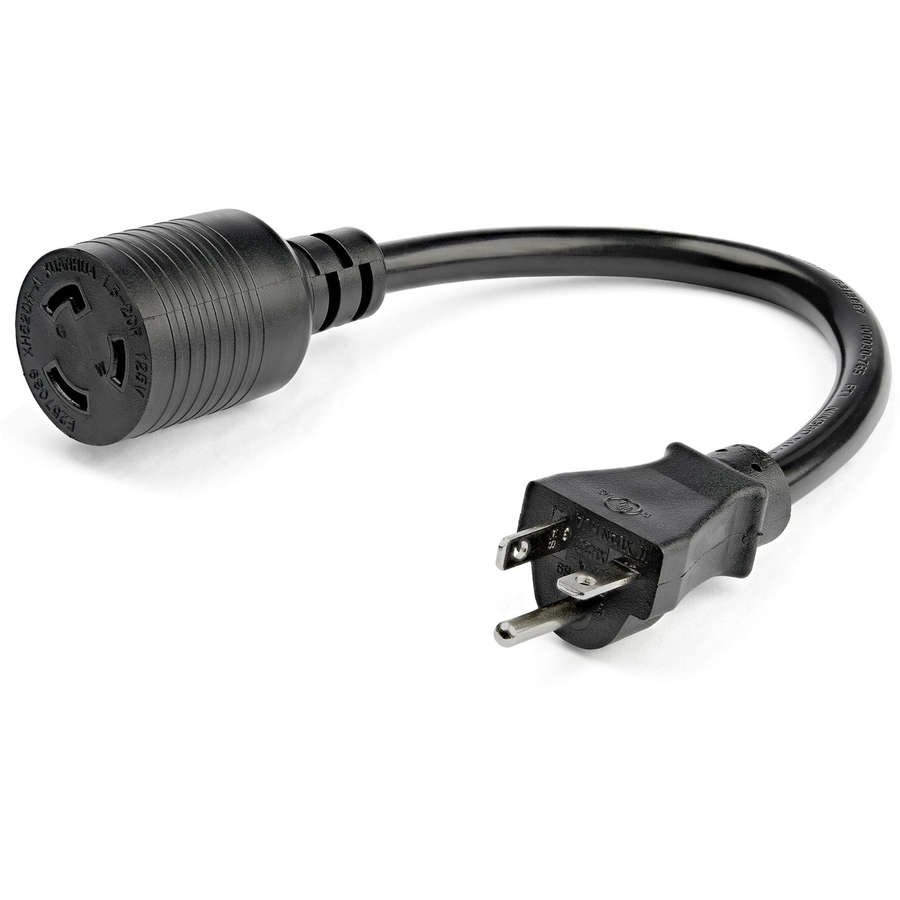

This 1 ft. Power Adapter Cord features NEMA-L5-20R to NEMA-5-20P connectors, creating a high-power 20A connection for your Power Distribution Units. Reliable Connection Featuring a twist locking NEMA-L5-20 receptacle and a NEMA-5-20P plug, this external 12 inch power cable ensures your equipment is securely connected to avoid accidental power loss or downtime. Built with a 12 AWG wire, the heavy-duty adapter provides a high-power connection to support your server room equipment or large server applications. Organize Your Power Cables This one-foot extension cord provides additional length for connecting your powered devices, allowing for cleaner cable management. Durable Design Constructed with high quality materials, the NEMA power cable has fully molded strain relief connectors providing a dependable connection. PAC520PLR1 is backed by a StarTech.com lifetime warranty and free lifetime technical support. More from the Manufacturer
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this power extension cable is backed for life, including free lifetime 24/5 multilingual technical assistance
- COMPATIBILITY: PC Power Cord NEMA 5-20P works with North American outlets
- Extend connections to servers, desktop computers, monitors, printers, and more
- Replacement power extension cable/cord
- SPECS: 1ft (0.3m) AC Power Cord
- NEMA-L5-20R to NEMA-5-20P
- 12AWG
- 125V 20A (Max)
- Jacket Type: SJT
- Jacket Material: PVC
- Black
- Temperature Range: 37°F to 227°F (3°C to 105°C)
- Cable Outer Diameter: 0.36in (9.14mm)
- PERFORMANCE AND SAFETY: UL listed (UL62 & UL817)
- Fully molded strain relief on connectors for durability
- Fire Rating: VW-1
- 3 Conductor Power cable made with 100% copper wire
- Available in other lengths
- HEAVY DUTY EXTENSION CABLE: This 1ft (0.3m) 12AWG universal power cord with NEMA-L5-20R to NEMA-5-20P connectors is suitable for servers or other high-powered equipment
- Indoor use
- Rated to carry 125V at
| Brand | |
|---|---|
| Brand | StarTech.com |
| Power & Battery | |
|---|---|
| Current Rating | 20 A |
| Voltage Rating | 125 V AC |
| General Features | |
|---|---|
| Manufacturer | StarTech.com |
| Cables | |
|---|---|
| Cord Length | 1 ft |
| First End Connector Type | NEMA 5-20R |
| First End Connector Detail | 1 x 3-pin NEMA 5-20R Female |
| Second End Connector Type | NEMA L5-20P |
| Second End Connector Detail | 1 x 3-pin NEMA L5-20P Male |
| Compliance & Certification | |
|---|---|
| REACH free of SVHC | Yes |
| Maximum Operating Temperature | 227°F (108.3°C) |
| Minimum Operating Temperature | 37°F (2.8°C) |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
