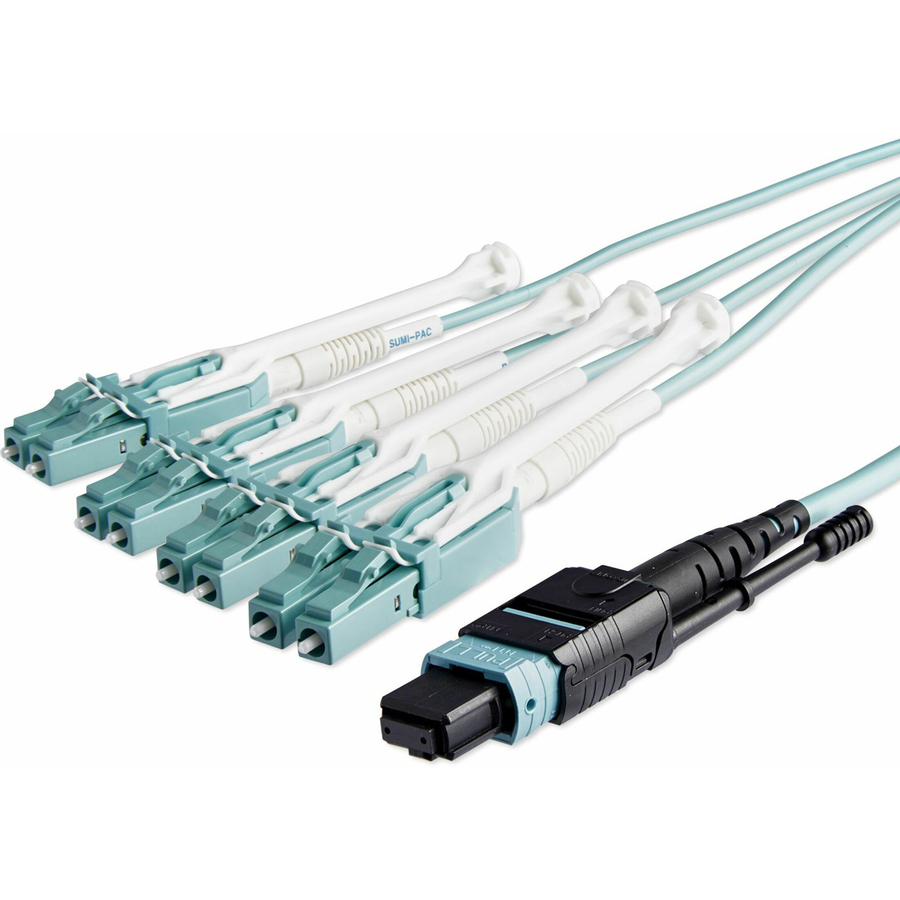

This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.
The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.
The MPO cable is housed in a plenum-rated jacket and is ideal for in-wall installations or anywhere CMP fire rating is required.
Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
The MPO8LCPL10M from StarTech.com is backed by a lifetime warranty.
More from the Manufacturer
- Offers dependable network connectivity for stable performance, supporting uninterrupted operations and consistent data flow across connected systems
- Features fiber optic cable type to deliver high-bandwidth data transmission with minimal signal loss, ensuring optimal performance in network setups
- Uniboot Connector feature enhances usability and operational efficiency, providing reliable performance and simplifying everyday connectivity tasks
- Features LC Network - Male connector, permitting you to establish a secure link with a network device for dependable functionality
| Brand | |
|---|---|
| Brand | StarTech.com |
| Size / Dimensions | |
|---|---|
| Shipping Height | 0.39" |
| Shipping Width | 7.87" |
| Shipping Weight (Approximate) | 4 oz |
| General Features | |
|---|---|
| Data Transfer Rate | 40 Gbit/s |
| Manufacturer | StarTech.com |
| Cables | |
|---|---|
| Fiber Optic Cable Core/Claddi | 50/125 µm |
| Cable Length | 32.81 ft |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Multi-mode |
| Connector Type on First End | MTP/MPO Network - Female |
| Connector on First End Details | 1 x MTP/MPO Network - Female |
| Connector Gender on First End | Female |
| Connector Type on Second End | LC Network - Male |
| Connector Gender on Second End | Male |
| Jacket Type | OFNP |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
StarTech.com 10m (30ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, 40G, Low Insertion Loss, Fiber Jumper Cord - 10m (33ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable; OFNP Plenum; 8F Type-A; 50/125µm Core; Bandwidth: 2000MHz�km at 850nm w/ VCSEL source; Outer Diameter: 3.0mm; Temp Range: -10 to 70°C (14 to 158°F)
