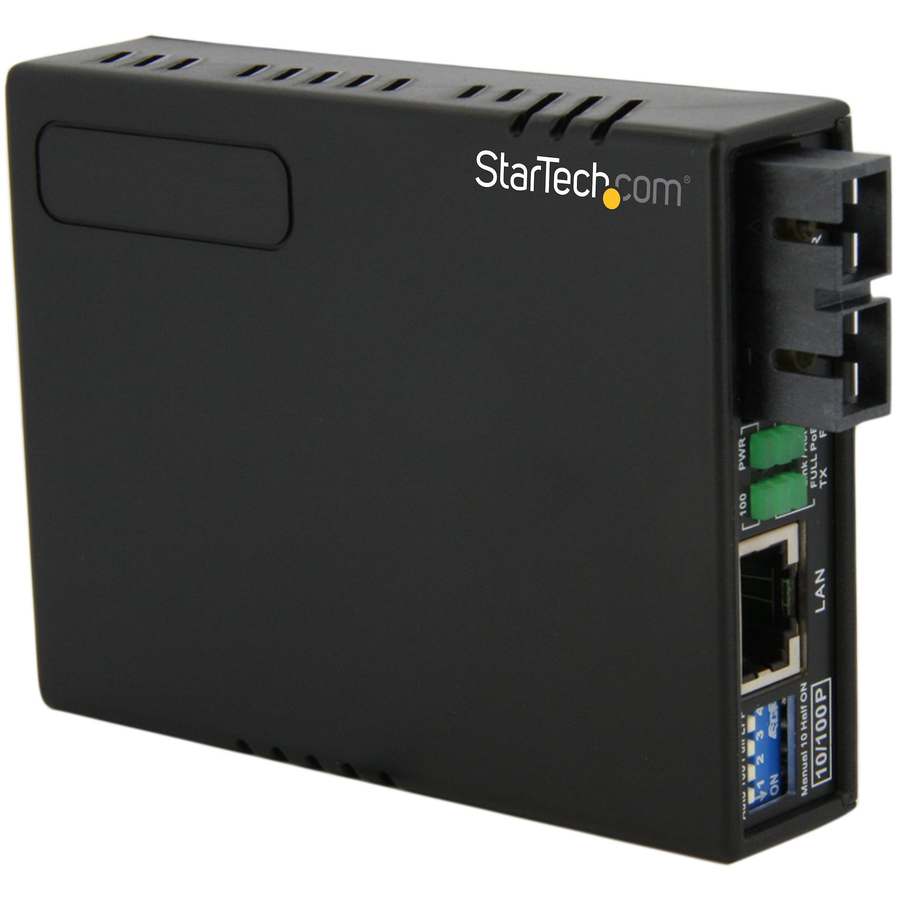

The MCM110SC2P 10/100 Multi Mode Fiber to Ethernet Media Converter supports a maximum fiber cable distance of 2km, ensuring a highly reliable signal for ideal network connectivity and performance.
Featuring Power over Ethernet support, the converter draws power from a PoE network, delivering the freedom to use the converter in environments and scenarios where additional standard power options are unavailable.
Rather than paying for expensive installations of power wire (at drop points that may have them), running PoE requires only standard network cable (e.g. Cat5e cable), eliminating added cost and hassle.
Backed by a StarTech.com 2-year warranty and free lifetime technical support, the 10/100Base to 100Base-FX Multimode Fiber Ethernet Media converter features a durable design to help ensure reliability and long-lasting performance.
More from the Manufacturer
- Auto detects half/full duplex transfer mode on RJ45 port
- Compact and lightweight design for portability
- Supports Q in Q double tagged frame transparent
- Forward 1600 bytes (Max.) packets
- Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode SC fiber
- Supports IEEE 802.1q VLAN tagging pass-through
- Powered via 802.3af Power over Ethernet (PoE PD) or by the included power adapter
- Supports a maximum multimode fiber optic cable distance of 2km
- Supports IEEE 802.3 10Base-T, 802.3u 100Base-TX and 100Base-FX industry standards
- 10/100 Mbps auto-negotiation and auto-crossover on RJ45 port
| Brand | |
|---|---|
| Brand | StarTech.com |
| Power & Battery | |
|---|---|
| Plug/Connector Type | Type M |
| Power Source | AC Adapter |
| Power Consumption | 4.80 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100Base-TX |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of PoE (RJ-45) Ports | 1 |
| PoE Port Type | PD |
| Size / Dimensions | |
|---|---|
| Form Factor | External |
| General Features | |
|---|---|
| Maximum Distance Supported | 2 km |
| Manufacturer | StarTech.com |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Number of SC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm , 62.5/125 µm |
| Fiber Optic Cable Core/Claddi | 50/125 µm |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
