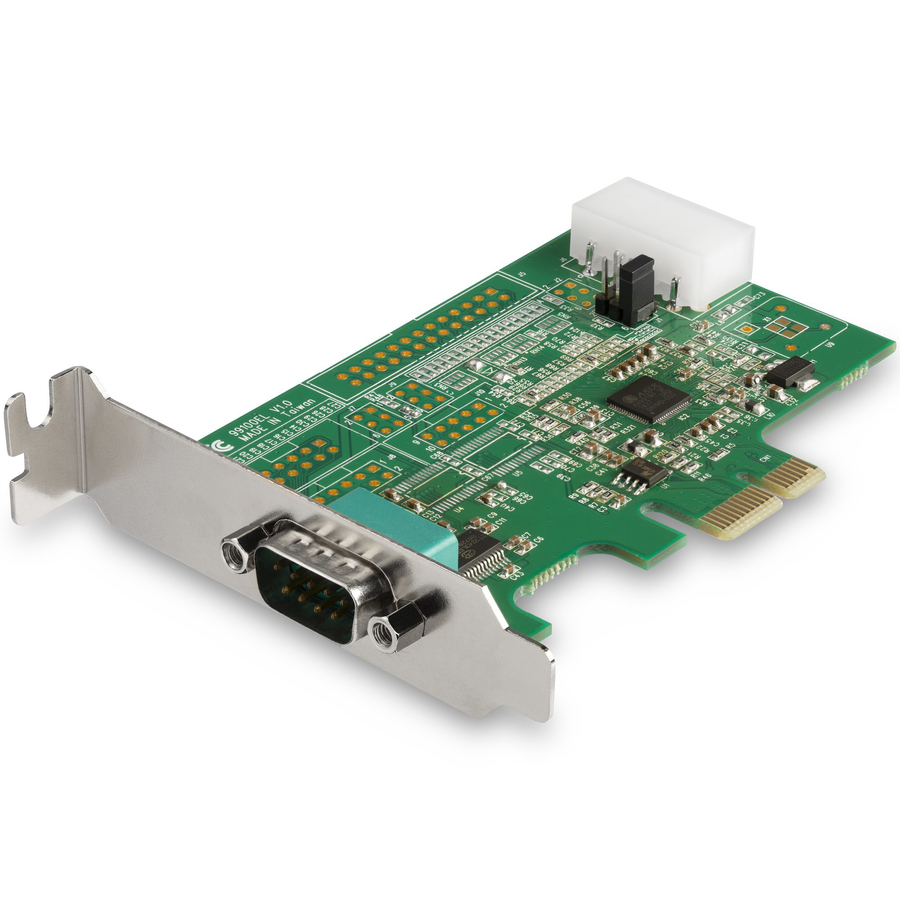

This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps. Maximum Compatibility With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor. Experience Optimal Technology This PCIe to serial adapter supports the following features: Compatible with industry standard 16950 UART Supports max baud rate of up-to 921.4Kbps Provides 5/12V power output on Pin 9 when external power is connected 128-byte depth FIFO per transmitter and receiver Supports 9, 8, 7, 6, 5 data bits Asix AX99100 chipset PCI Express 1.1 compliant PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support. More from the Manufacturer
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCI-e RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support
- VERSATILE APPLICATIONS: For low/standard profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope
- STANDARD PROFILE & LOW PROFILE BRACKET: PCIe serial card comes w/ a low profile bracket pre-installed & 1x full profile bracket is incl for versatile install; Supports Windows XP and up & Linux
- OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total
- 1 PORT SERIAL CARD: Serial controller card w/ 16950 UART based on ASIX AX99100, allows 1x DB9 port w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit; Upgraded version of our popular card PEX1S952LP
| Brand | |
|---|---|
| Brand | StarTech.com |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| General Features | |
|---|---|
| UART Type | 16950 |
| Manufacturer | StarTech.com |
| Misc Ports | |
|---|---|
| Number of Serial Ports (Exter | 1 |
| Host Interface | PCI Express x1 |
| Compliance & Certification | |
|---|---|
| REACH free of SVHC | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
