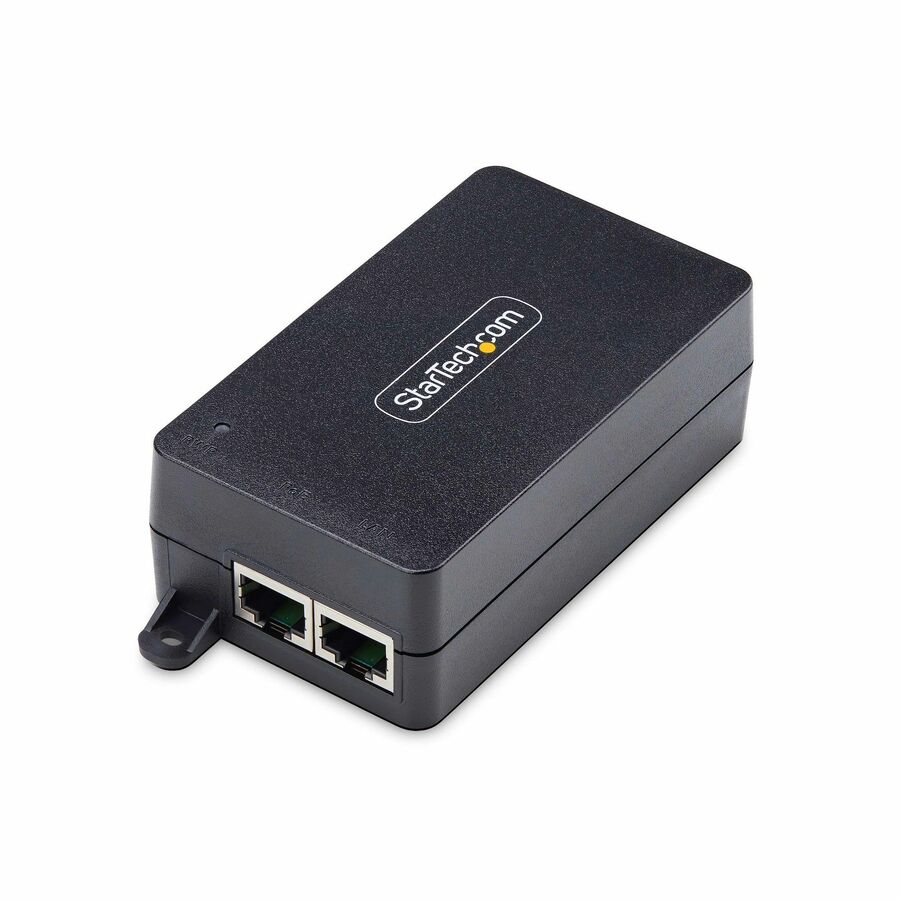

This 1-port 2.5GbE PoE+ Injector serves as a Power Sourcing Equipment (PSE) device and enables Ethernet speeds of 10Mbps, 100Mbps, 1Gbps, and 2.5Gbps. This TAA-compliant midspan inline injector can transmit network data and power up to 328ft (100m) for remote Powered Devices (PD).
Versatile PoE Injector
Multi-Gigabit single port PoE injector supports the IEEE 802.3af and 802.3at PSE standards, and delivers up to 30W output (54V DC, 0.6A). This enables seamless data and power transmission over Cat5/5e/6/6a to remote Powered Devices (PD) such as IP cameras, access control devices, remote kiosks (POSs), wireless access points (APs), PoE lighting, and digital signage. A built-in LAN Transformer reduces EMI to maintain strong, reliable signal strength across different environments.
Streamlined Cable Management
All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (4x2.3x1.3-inch-100x58.4x33.4 mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation. Integrated anchor points allow for surface and wall mounting.
- 2.5GbE POE INJECTOR: Multi-gigabit single port midspan PoE+ injector supports up to 2.5Gbps with auto-negotiation; TAA-compliant Power Sourcing Equipment supports up to 30W PoE/PoE+; Features level-4 ESD protection for reliable performance and durability.
- NETWORK FLEXABILITY: Auto-negotiation between 2.5Gbps & 10/100/1000Mbps Ethernet; Deliver data/power to PoE devices up to 328ft/100m w/Cat5/5e/6/6a cabling; Unmanaged inline injector w/built-in LAN transformer for electrical isolation; 2K surge protection
- HASSLE-FREE INSTALLATION: Integrated anchor points for surface mounting; Streamline deployment without additional software/settings; Connect the PoE injector to the network (e.g., switch or router) & the remote PD via standard Cat5/e or Cat6/6a cabling
- APPLICATIONS: Enable data & power over a single RJ45 connection in high end enterprise access points such as high resolution IP cameras; Maintain existing network infrastructure while adding PoE functionality to support remote devices
- TECH SPECS: x2 RJ45 port
| Brand | |
|---|---|
| Brand | StarTech.com |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Maximum Output Voltage | 54 V DC |
| Maximum Input Current | 800 mA |
| Maximum Output Current | 600 mA |
| Maximum Output Power | 30 W |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall/Surface Mountable |
| Mount Type | Wall/Surface Mountable |
| General Features | |
|---|---|
| Protection Type | Surge Protection |
| Manufacturer | StarTech.com |
| Misc Ports | |
|---|---|
| Output Ports | 1 x RJ-45 |
| Input Ports | 1 x PoE+ |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
