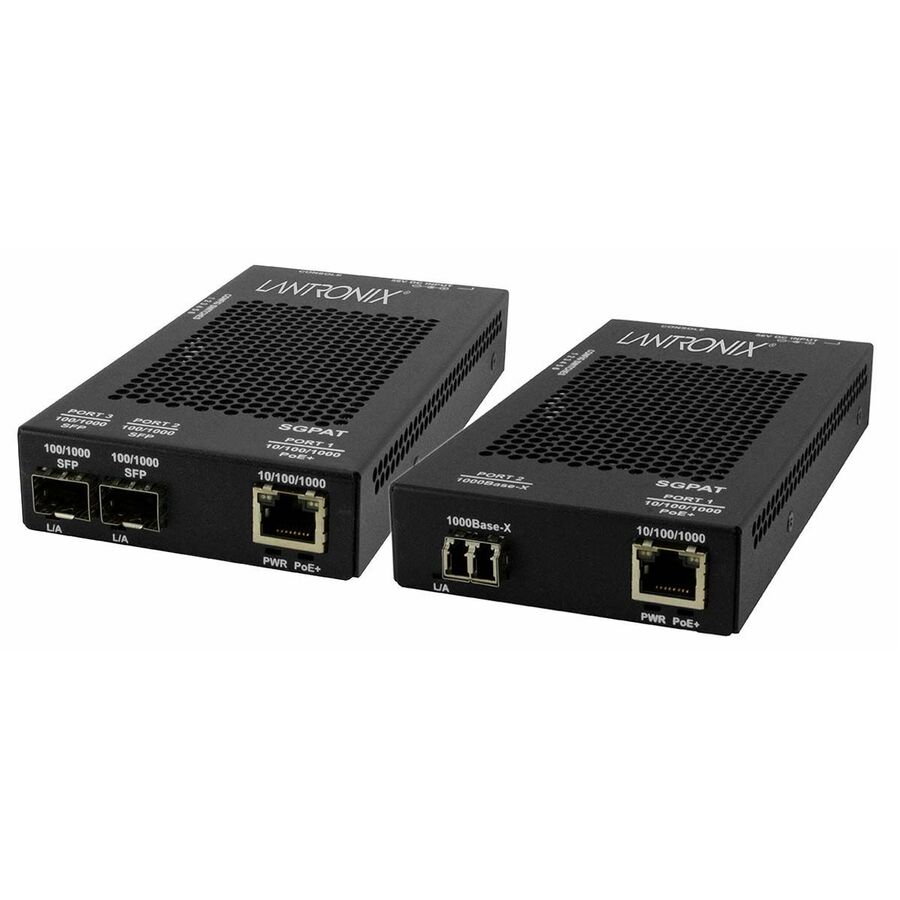

Stand-alone Fast & Gigabit Ethernet PoE / PoE+ Media Converter 10/100/1000Base-T PoE+ PSE to 1000Base-X

$ 529.99 $ 529.99
$ 529.99

$ 529.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Fiber Optic Cable Core/Claddi
  • Network Technology
  • Network (RJ-45)
  • Number of PoE+ (RJ-45) Ports
  • Fiber Mode Supported
  • Total Number of Ports
  • Number of LC Ports
  • LC Port Type
  • Fiber Optic Cable Wavelength
  • Form Factor
  • Ethernet Technology
  • Media Type Supported
  • Maximum Distance Supported
  • TAA Compliant
  • Certifications & Standards
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Manufacturer Website Address
  • Power Source
Add to cart
Buy now
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

The SGPAT Series is a 10/100/1000Base-T to 100/1000Base-SX/LX Gigabit Ethernet Media Converter, that easily and affordably facilitates the connection between different types of network cabling, while also injecting PoE power through the copper RJ-45 port. NDAA Compliant, TAA Compliant

  • Dip switch control of basic feature configuration RJ-45 serial port for Command Line Interface CLI of advanced port configuration 115200 baud
  • Twisted pair ports support IEEE 802.3az Energy Efficient Ethernet for power saving
  • Legacy PoE Detection
  • Jumbo frame support
  • LEDs indicators for power status; per port link, duplex, and activity status; and PoE status
  • Supports Auto-Negotiation, Auto-MDI/MDIX, Active Link Pass Through ALPT, and Remote Fault Detection
  • SFP slots can support 100Base-FX, 1000Base-X, or SGMII based MSA compliant SFP modules
  • 4-port version offers 2 RJ-45 PoE+ ports and 2 open SFP slots, device can be configured as a 4-port switch with or without redundant fiber or as two independent PoE+ media converters in one housing
  • With redundant fiber enabled, supports a 50ms fail-over time
  • 3-port version offers 1 RJ-45 PoE+ port and 2 open SFP slots, device can be configured as a 3-port switch or as a 2-port media converter with redundant fiber links
  • Various fiber versions available supporting fixed SC, LC, and open SFP
  • Supports full 30 Watts of power to each twisted pair port
  • 2-port 10/100/1000 copper to fiber media conversion with IEEE 802.3at PoE+ on the copper port
  • External AC/DC power supply included
  • Wall mount, DIN Rail, or table top
Brand
Brand Lantronix
Power & Battery
Power Source AC/DC
Networking & Connectivity
Network Technology 1000Base-X
Ethernet Port
Network (RJ-45) Yes
Number of PoE+ (RJ-45) Ports 1
Size / Dimensions
Form Factor Desktop
General Features
Maximum Distance Supported 0.55 km
Manufacturer Lantronix, Inc
Misc Ports
Total Number of Ports 2
Number of LC Ports 1
LC Port Type Duplex
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Cables
Fiber Optic Cable Core/Claddi 62.5/125 µm
Fiber Mode Supported Multi-mode
Fiber Optic Cable Wavelength 850 nm
Compliance & Certification
TAA Compliant Yes
Miscellaneous
Product Name SGPAT1039-105 Transceiver/Media Converter
Transition Networks SGPAT1039-105 Transceiver/Media Converter - Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x LC Ports - Multi-mode - 850 nm Fiber - Gigabit Ethernet - 1000Base-SX/LX, 10/100/1000Base-T, 1000Base-X - AC Adapter - Wall Mountable, Rail-mountable, Standalone, Desktop
