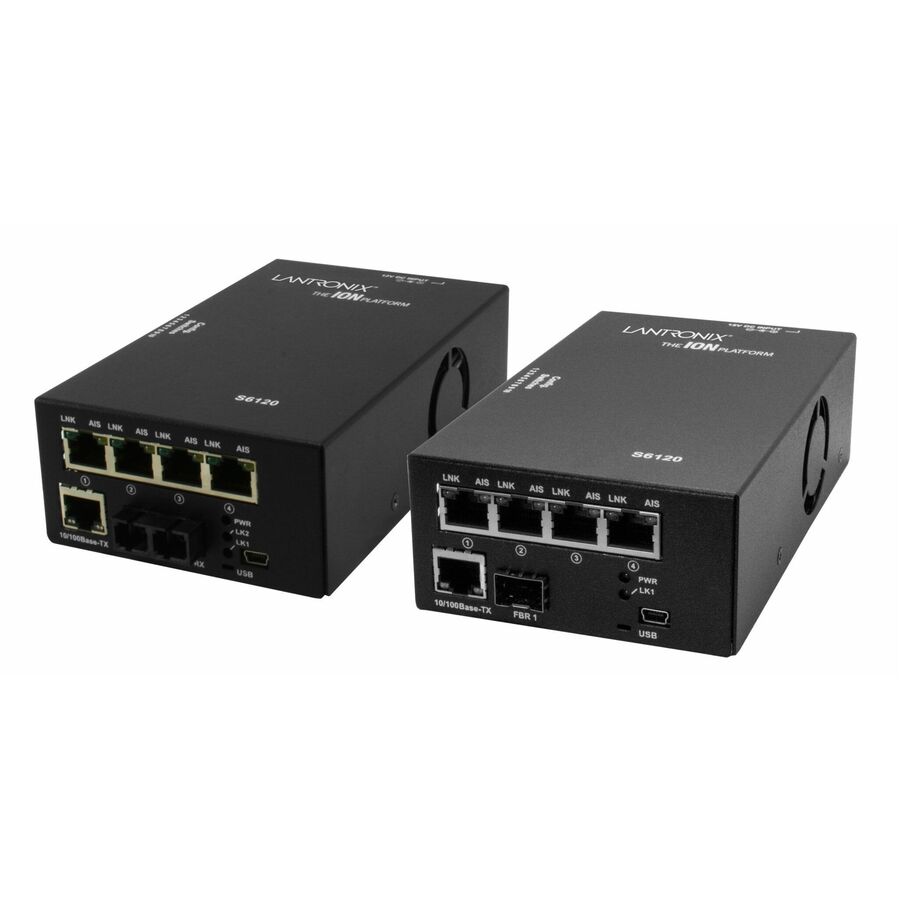

A managed stand-alone DS1 - T1/E1/J1 mux that provides a solution for those users that need to extend multiple DS1 - T1/E1/J1 connections, along with a 10/100 Ethernet connection, all over fiber. NDAA Compliant, TAA Compliant
- Extended operating temperature
- Must be used in pairs
- Remote firmware upgrade
- Remote management
- Access to complete status and configuration on local and remote device
- LEDs for device status and troubleshooting
- Settings for line code, line build out, loopbacks and Alarm Indication Signal AIS
- Loopback via test set
- Local and remote loopbacks
- Auto-MDI/MDIX
- Pause Flow Control on Ethernet port
- 1 fiber interface fixed or SFP
- 1 RJ-45 10/100Mbps Ethernet port
- 4 RJ-48 copper interfaces
| Brand | |
|---|---|
| Brand | Transition Networks |
| Power & Battery | |
|---|---|
| Power Source | Power Supply |
| Power Consumption | 6 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100Base-TX |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| General Features | |
|---|---|
| Maximum Distance Supported | 20 km |
| Manufacturer | Lantronix, Inc |
| Video Ports | |
|---|---|
| DVI | No |
| Misc Ports | |
|---|---|
| Management Port | No |
| Total Number of Ports | 6 |
| SC Port Type | Duplex |
| Number of SC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
