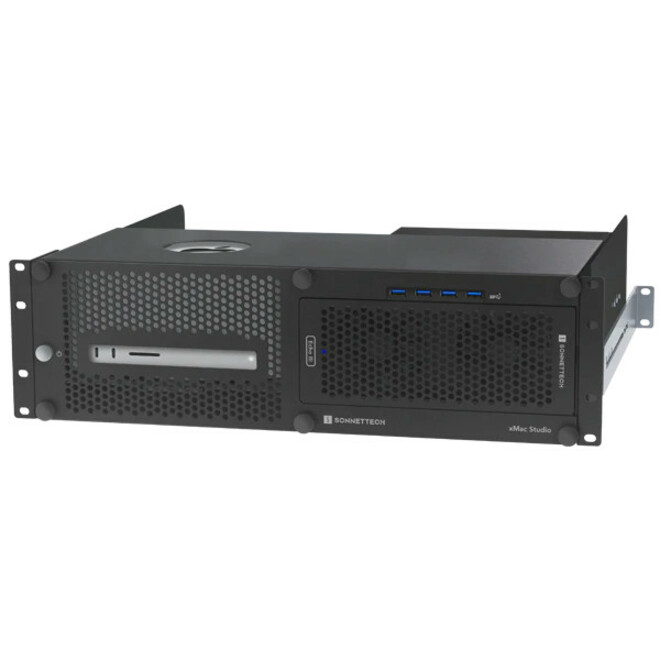

xMac Studio/Echo III
Professional 3U Rackmount Enclosure with Three Slot Thunderbolt to PCIe Card Expansion System for Mac Studio
Designed for Three PCIe Cards Expansion - Connect Speciality Audio and Video Cards
For many creative professionals, PCIe card expansion is not an option - its a necessity for connecting specialty cards to handle audio and video post-production projects. xMac Studio is a rugged steel 3U rackmount enclosure for securing a Mac Studio with optional PCIe card expansion module in a rack, placing the Mac Studio behind a quick and easy to remove front panel. Sonnet designed the xMac Studio/Echo III for pro workflow flexibility; a rugged steel enclosure protects the Mac Studio while a three slot PCIe expansion module provides expansion for up to three PCI cards, including support for up to three Avid Pro Tools | HDX cards.
Echo III Expansion Module Features
Versatile PCIe Card Expansion - From low-profile, half-length to full-height, full-length in size, Echo expansion modules support every Thunderbolt-compatible, non-GPU PCIe card available. View PDF of supported PCIe cards.
400W of Power - Built-in 400W power supply supports power-hungry cards including Avid Pro Tools | HDX, AJA® Kona® 5, Blackmagic Decklink 4K Extreme 12G, and Blufish444's Epoch and KRONOS SDI cards. System powers on and off automatically with the connected Mac Studio.
Quiet Fans - Dual temperature-controlled, variable-speed Noctua fans rated at 17 dbA offer ultra-quiet operation.
40Gbps Thunderbolt Interface - 40Gbps Thunderbolt interface offers 2800 MB/s of PCIe bandwidth to the installed PCIe cards.
Control and Connect - Easy Access to Mac Studio and PCIe Card Expansion Module
Convenient front panel operation allows you turn Mac Studio on with its own dedicated front power button, connect USB devices through a 4-port USB-A hub, and access the computer's front ports and SD card slots. When equipped with an Echo III or Echo I PCIe Card Expansion Module, three rear panel locking thumbscrews allow you to easily pull out and access the module and PCIe cards through the front without removing the front panel. xMac Studio's design enables you to connect and disconnect cables without needing to remove the Mac Studio from the enclosure.
An opening on top of xMac Studio ensures hindrance-free wireless signal access. The xMac Studio is designed to allow normal WiFi and Bluetooth wireless operation in most configurations (depending on rack type and position in rack), so you can use wireless devices and iOS® device control apps.
Mac Studio computer and PCIe cards not included
- Connects PCIe Card Slots to Mac Studio - Connect Up to Three PCIe Cards
- Makes Your Mac Studio Road-ready In a 3U RackMount Enclosure
- Compact and Rugged Steel Enclosure
- Easy Computer Access - Removable Front Panel
- Front Panel Power Switch and 4-port USB Hub
- Space for Storage - Install Up to Three USB or Thunderbolt SSDs (Sold Separately) Beneath the Mac Studio; An Included Adhesive-based Magnet Secures Them In Place
- Open Slot and Port Access to Mac Studio
- Front to Back Airflow Management
- Ideal for Use In Server Rooms, DITs, Portable Racks, and Shallow Molded Rack Cases
- Mac Studio Compatible
- 2-year Product Warranty
- Free Lifetime Customer Technical Support
- Designed and Made In the USA
| Brand | |
|---|---|
| Brand | Sonnet Technologies |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 3U |
| General Features | |
|---|---|
| Manufacturer | Sonnet Technologies, Inc |
