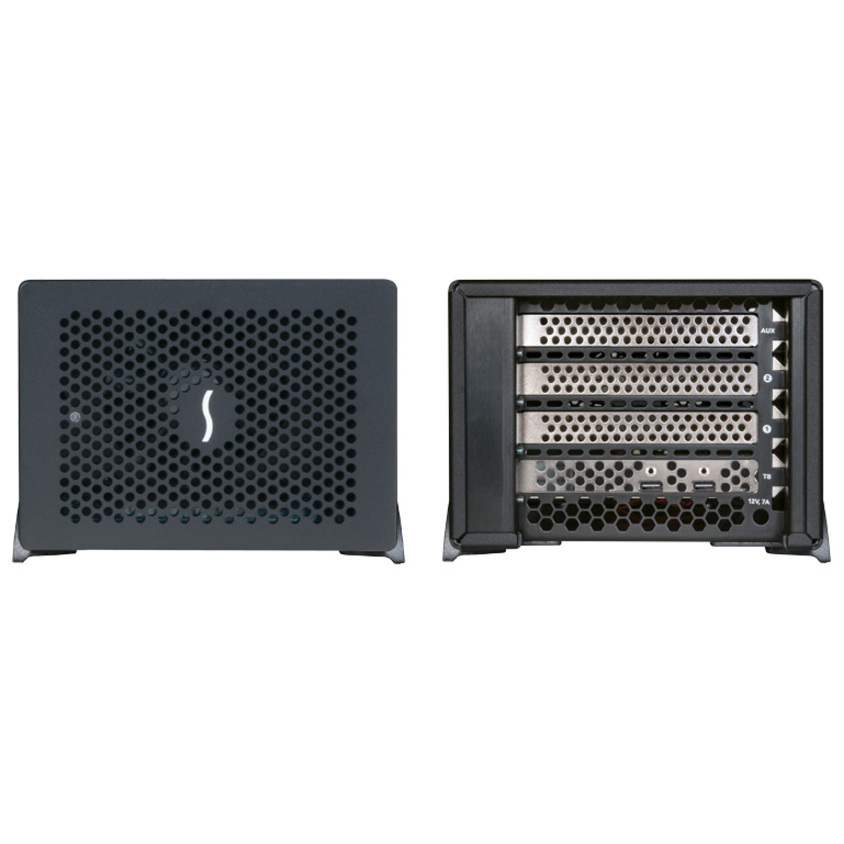

Echo Express SE IIIe
3-slot Thunderbolt 3 desktop expansion system for PCIe cards
Connect Three Full-height, Half-length+ PCIe Cards to Computers with Thunderbolt 3 Ports
Although thin Mac®, Windows®, and Linux® computers with Thunderbolt™ 3 ports offer processing power to spare, for many users (such as pros in the creative fields) onboard processing power alone is not enough. Sonnet's Echo™ Express SE IIIe is a compact, desktop Thunderbolt™ 3 to PCIe card expansion system that enables you to connect three professional PCIe cards at the same time to any computer with Thunderbolt 3 ports.
The Thunderbolt 3 Connection
This compact desktop expansion system supports three professional PCIe cards (video capture; audio DSP; 6Gb or 12Gb SAS or SATA host bus adapter; 10Gb, 25Gb, or40Gb Ethernet; or RAID controller; etc.) and connects them to your computer through a single Thunderbolt 3 cable.
Key Features
Connect PCIe Cards
Use multiple high-performance PCIe cards with any computer with a Thunderbolt 3 port.
Three PCIe 3.0 x8 Slots
Supports three full-height, half-length+ (up to 7.75 inches long), single-width cards, or one double-width card plus one single-width card.
40Gbps Thunderbolt 3 Interface
Offers 2750 MB/s of PCIe bandwidth, doubling the performance capabilities of Thunderbolt 2.
Pro Performance. Compact Design.
Takes up little space on the desktop, but large enough to support nearly every Thunderbolt-compatible non-GPU PCIe card at full performance.
Two Thunderbolt 3 Ports
One port connects to computer; second port supports daisy-chaining of up to five additional Thunderbolt peripheral devices.
Remarkably Quiet
Temperature-controlled,variable-speed fan automatically and quietly cools the cards.
Energy Saver Mode
Powers on/off automatically with the computer.
Rugged Aluminum Housing
Provides robust and secure protection.
Pro Power
NEW - Auxiliary PCIe power connector for a power-hungry card; daisy chain port provides up to 15W of power to connected peripherals.
| Brand | |
|---|---|
| Brand | Sonnet Technologies |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| General Features | |
|---|---|
| Manufacturer | Sonnet Technologies, Inc |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
