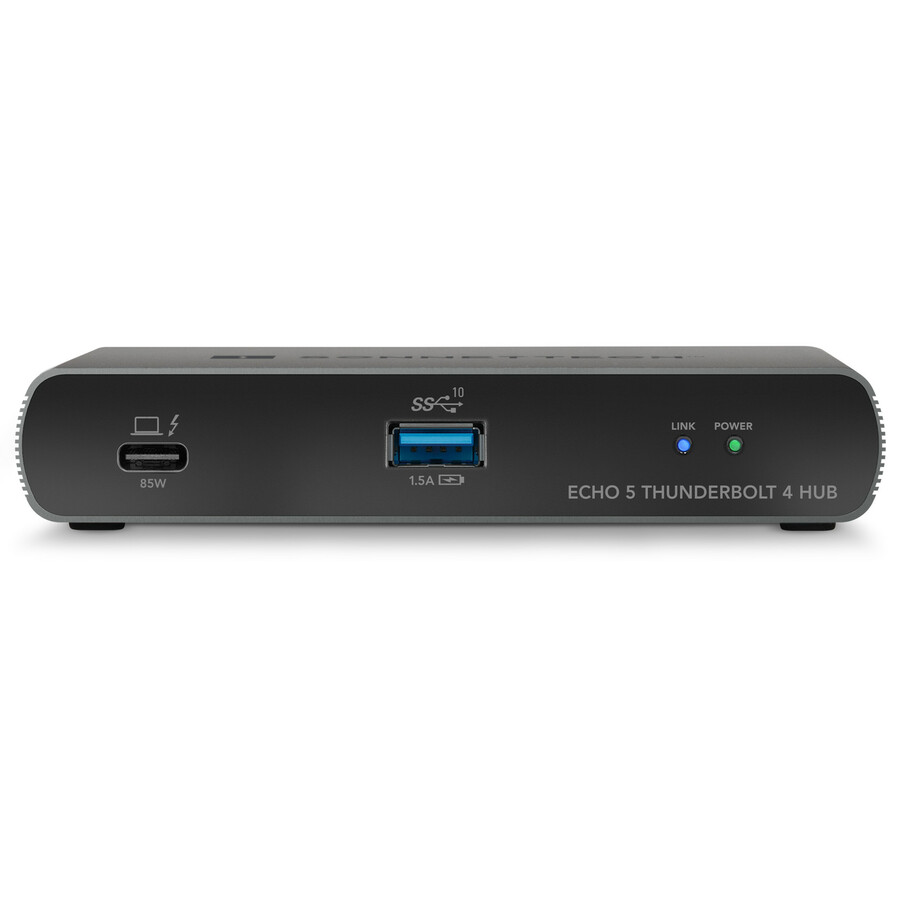

Echo 5 Thunderbolt 4 Hub
Compact Universal Thunderbolt 4 Hub with Four Thunderbolt 4 Ports, Convenient Front Panel USB 3.2 Charging Port, and 8K Display Support
Mac® | Windows® | iPad Pro®
Compatible with Thunderbolt™ 4 computers; Apple® M1, M1 Pro, M1 Max, and M1 Ultra Macs; Thunderbolt 3 Intel® Macs; and M1 iPad Pro with a Thunderbolt port
Thunderbolt 4 | The Highest-Bandwidth, Most Versatile Connection Available
The Thunderbolt hub you've always wanted, without paying for the extra features you don't need. A single cable powers your laptop and connects to multiple Thunderbolt and USB peripheral devices. Sonnet's Echo™ 5 Thunderbolt 4 Hub - the compact universal hub for today and tomorrow.
Directly attach three Thunderbolt peripherals - and daisy chain up to a total of 5 devices
Alternate use-attach three USB devices to Thunderbolt ports (or at the end of Thunderbolt chains)
Attach one USB device with Type A connector
Connect up to two 5K displays; or a single display up to 8K resolution!
Charge your laptop
Charge your phone or tablet
Connect to Your Peripherals and Power Your Computer with One Cable
Plug in your Thunderbolt devices, monitor(s), and USB peripherals, and then connect them all to your computer from the hub with the included Thunderbolt cable. The Echo 5 Thunderbolt 4 Hub will even power your laptop with up to 85W of charging power. When it is time to leave, just unplug the Thunderbolt cable, grab your laptop, and go.
Work. Play. | Port Multiplication- Turn One Thunderbolt Port into Three
Flexible Device Connectivity for Work and Play
Based on the Intel® Goshen Ridge controller, the Echo 5 Thunderbolt Hub features four Thunderbolt 4 ports; one for connection/power to your computer, plus three to directly connect Thunderbolt peripheral devices (and daisy chain up to a total of 5 devices). The Thunderbolt ports also support USB4 and USB 3 peripherals. For bus-powered devices, the Hub's Thunderbolt peripheral ports provide 15W per port, supporting the most demanding bus-powered Thunderbolt and USB peripherals-they can even charge your iPhone® or iPad® twice as fast as using the USB Type A port.
Versatile Thunderbolt Expansion
Perfect for Intel Macs (with Thunderbolt 3 ports), Windows computers (with Thunderbolt 4 ports), Apple® M1, M1 Pro, M1 Max Macs (with dual Thunderbolt/USB4 ports), and M1 iPad Pro® tablets with a Thunderbolt port. Connect the hub and create three separate independent Thunderbolt expansion chains. Add and disconnect devices from one chain without affecting the others.
- Thunderbolt 4 host interface ensures dependable data transfer for maximum efficiency
- Provides 1 USB ports for responsive and expanded device connections
- PC platform support for your convenience and usability
| Brand | |
|---|---|
| Brand | Sonnet Technologies |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 1 |
| Number of USB 3.2 Ports | 1 |
| Thunderbolt Ports | |
|---|---|
| Number of Thunderbolt Ports | 4 |
| Size / Dimensions | |
|---|---|
| Form Factor | Portable |
| General Features | |
|---|---|
| Manufacturer | Sonnet Technologies, Inc |
| Misc Ports | |
|---|---|
| Host Interface | USB 3.2 (Gen 2) Type-A |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
