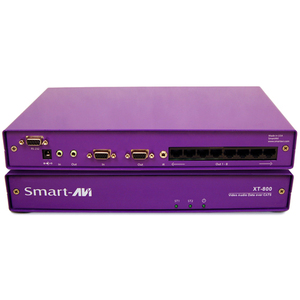

The XT800 range of products allows the extension of a wide range of video and audio formats and RS232 up to 8 locations using Category 5 Unshielded Twisted Pair (UTP) cables.
- Features Supports Dual Screens.
- Uses easy to install, inexpensive CAT-5/5e/6/7/8.
- Each output reaches up to 1,000 feet (300 m).
- Supports high resolution video up to 1920x1200
- HDTV Compatible (720p, 1080i,1080p)
- 300 MHz Bandwidth.
- Sends high-resolution VGA, Stereo Audio signals, RS232 or IR from one source to 8 locations.
- Compatible with VGA, XGA, Sun, MAC and SGI
- Sync Format / Polarity Preservation.
- Compatible with Line Level Stereo Audio Signals.
- High ground loop immunity.
- Built-in power surge and transient protection.
- Designated trimmer in the remote unit to compensate for cable length.
- Compact Metal Case Enclosure.
- External power supply.
- RS-232c Communication support to single or multiple Displays.
- IR command to single or multiple Displays
- Compatible with Line Level Stereo Audio Signals.
- Sync Format / Polarity Preservation.
- Compatible with VGA, XGA, Sun, MAC and SGI.
- HDTV Compatible (720p, 1080i,1080p).
- 300 MHz Bandwidth.
- Sends high-resolution VGA, Stereo Audio signals, RS232 or IR from one source to 8 locations.
- Supports high resolution video up to 1920x1200.
- Each output reaches up to 1,000 feet (300 m).
- Uses easy to install, inexpensive CAT-5/5e/6/7/8.
- Supports Local Screen.
| Brand | |
|---|---|
| Brand | Smart Audio Video Innovation |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 8 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1200 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 3.50 lb |
| General Features | |
|---|---|
| Maximum Operating Distance | 984.25 ft |
| Manufacturer | Smart Audio Video Innovation |
| Video Ports | |
|---|---|
| Number of VGA Inputs | 1 |
| VGA In | Yes |
| VGA Out | Yes |
| Number of VGA Outputs | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 8 |
