SmartAVI HDMI Rack 8 ports Transmitter over STP CAT5e/6

874.99 874.99
874.99

874.99 / Units
  • Brand
  • Transmitter Weight (Approxima
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Number of Input Devices Suppo
  • Connectivity Technology
  • HDMI Out
  • HDMI In
  • Number of HDMI Outputs
  • Number of HDMI Inputs
  • Network (RJ-45)
  • Twisted Pair Cable Standard
  • Form Factor
  • Transmitter Depth
  • Transmitter Height
  • Transmitter Width
  • Maximum Video Resolution
  • Media Type Supported
  • Maximum Operating Distance
  • Country of Origin
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Manufacturer Website Address
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

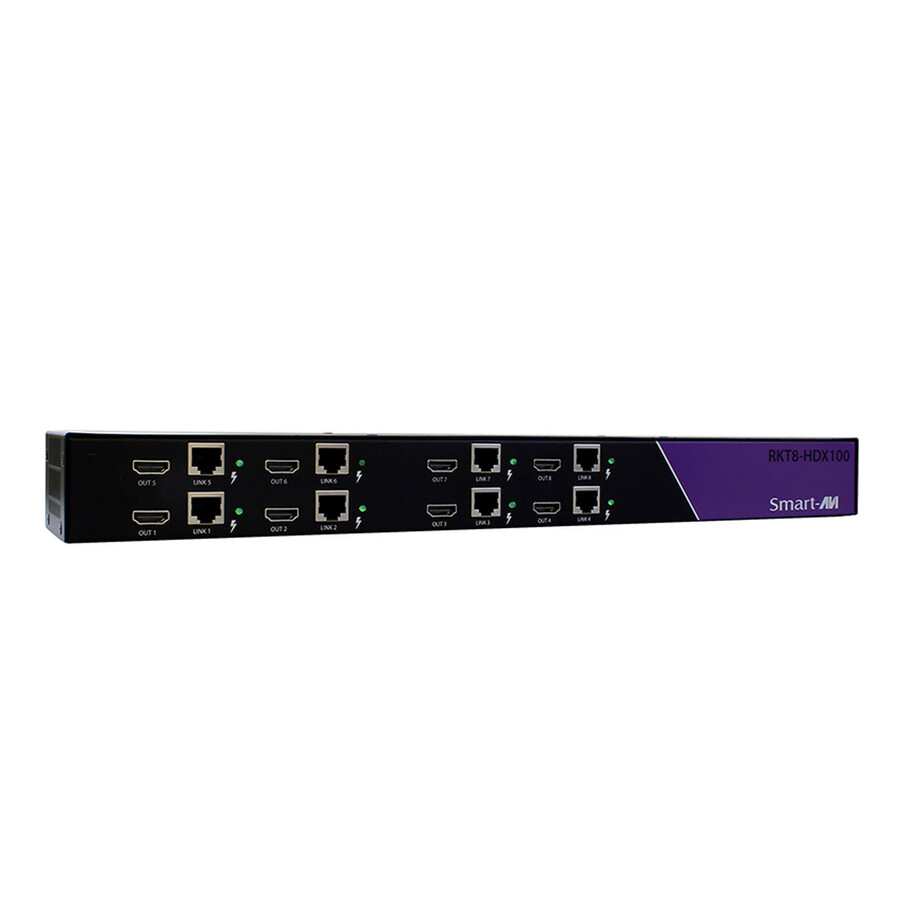

The RKT8-HDX100 is the perfect solution for extending HDMI signals to a remote location up to 150 feet away. It is the ideal way to consolidate up to eight workstation computers into one location. It is fully compatible with MAC, PC and LINUX HDMI standards. Up to eight displays can be extended easily from a rack without the mess or expense of multiple extenders. Rather than buy multiple extenders for rack components, and having to find power strips or numerous power outlets for the adapters, the SmartAVI rack series of extenders allows for up to eight inputs and eight outputs and one power supply.

APPLICATIONS

MEDICAL FIELD - In the medical field where sensitive electronic devices are used, isolating workstation computers can be a matter of safety. The RKT8-HDX100 allows the workstation computers to be housed in a central location, away from sensitive devices.

INDUSTRIAL WORK AREAS - In industrial work areas that may be too harsh for a workstation computer, the RKT8- HDX100 can consolidate the computers into a safe location.

DIGITAL SIGNAGE - When it comes to digital signage, the RKT8-HDX100 is an excellent deployment option. With the RKT8- HDX100, up to eight digital signage devices can be centralized and secured from public access.

INFORMATION KIOSKS/DISPLAYS - As with most information booths and kiosks, there is a risk of damage or theft. The RKT8-HDX100 is the best way to secure computer hardware, by consolidating it to a secure location away from public access

  • Rack Mountable Solution
  • Compatible with all major DVD players
  • Local HDMI output for each port
  • HDMI 1.3 and HDCP compliance
  • DDC from internal table
  • Compatible with all operating systems
  • Zero pixel loss with TMDS signal correction
  • Extends up to 150 feet with Cat5e/6 STP cables
  • Supports up to 8 HDMI sources
  • Supports High Resolution 1920x1200 60Hz WUXGA
Brand
Brand Smart Audio Video Innovation
Networking & Connectivity
Connectivity Technology Wired
HDMI Ports
HDMI Out Yes
HDMI In Yes
Number of HDMI Outputs 8
Number of HDMI Inputs 8
Ethernet Port
Number of Network (RJ-45) Por 8
Network (RJ-45) Yes
Camera / Webcam
Maximum Video Resolution 1920 x 1200
Input Devices
Number of Input Devices Suppo 8
Size / Dimensions
Transmitter Weight (Approxima 5 lb
Form Factor Rack-mountable
Transmitter Depth 3.25"
Transmitter Height 1.60"
Transmitter Width 17"
General Features
Maximum Operating Distance 150 ft
Manufacturer Smart Audio Video Innovation
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
Cables
Twisted Pair Cable Standard Category 6
