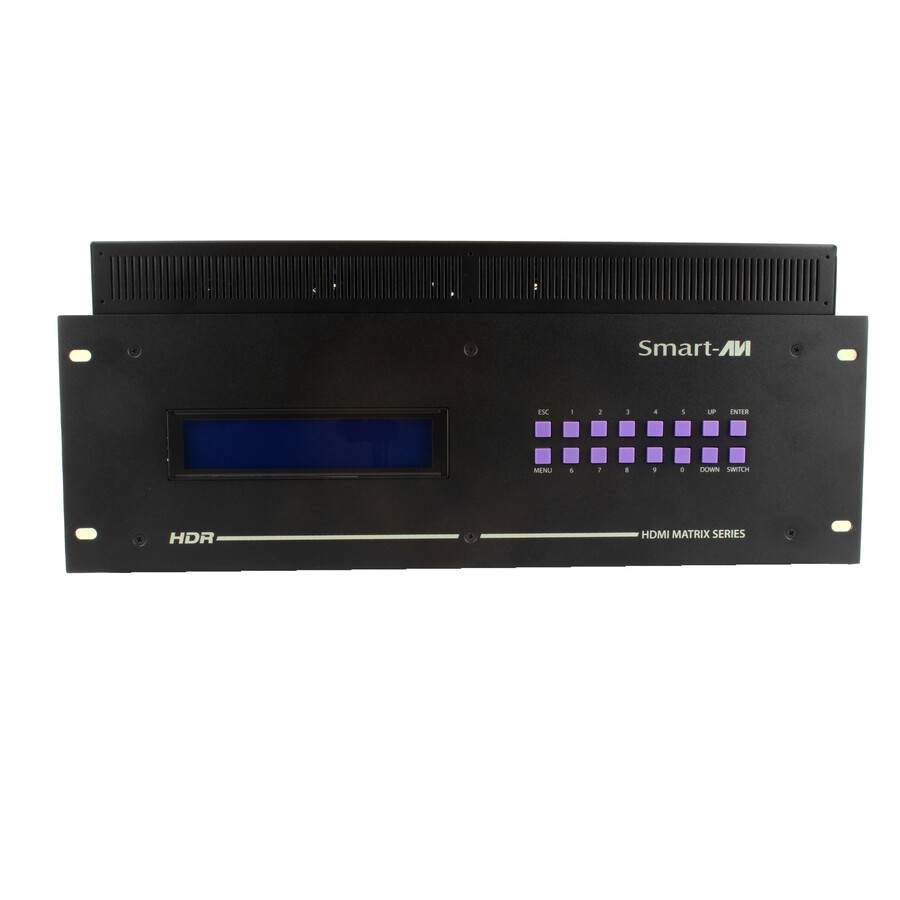

The HDR 16x16 conforms to the HDMI 1.4 standard and provides a connection to view any sixteen HDMI video sources on any combination of sixteen video displays. The matrix configuration provides maximum flexibility, allowing switching between any high-definition source and/or display. The HDR 16x16 provides HDMI output up to 40 feet with HDTV resolutions of 480p, 720p, 1080i and 1080p. The system works with Blu-ray players, TiVo systems, HT PCs and satellite set-top boxes that connect to an HDMI display.
Users can switch to any source locally or remotely via a RS-232, IR, USB or TCP/IP connection. Our HDMI router is controlled by Windows®-based software that is easy to understand and simple to use - a cornerstone of all SmartAVI products.
- Outputs HDMI up to 40 feet
- Rack mountable
- Delivers uncompressed digital video with zero signal loss
- HDCP and HDMI 1.3 compliant
- Supports EDID for total control of compliant displays
- Supports 7.1 Digital Surround Sound Audio
- Supports high definition video resolutions of 480p, 720p, 1080i and 1080p
- Switching controlled via the front panel, RS-232, IR, and TCP/IP
- Switches 16 HDMI inputs with 16 HDMI outputs
- Sources can be routed independently to displays
| Brand | |
|---|---|
| Brand | Smart Audio Video Innovation |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 16 |
| Graphics Modes | Full HD |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Cable |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 16 |
| Number of HDMI Inputs | 16 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1080 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 16 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Maximum Operating Distance | 40 ft |
| Manufacturer | Smart Audio Video Innovation |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
