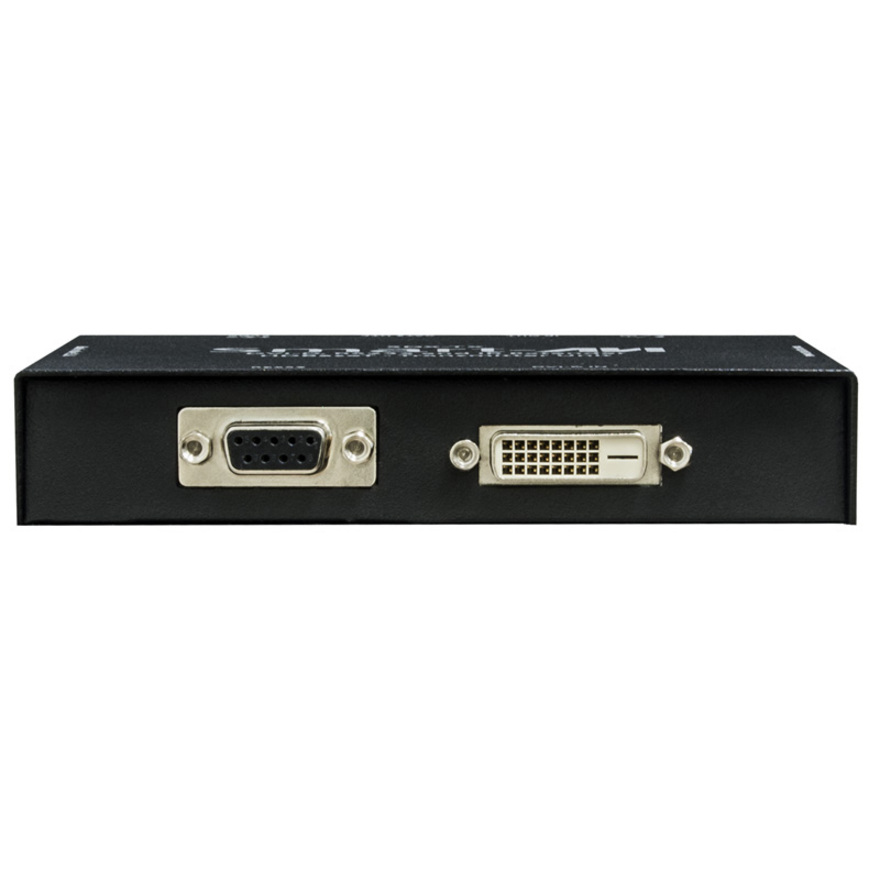

The SDX DVI extender is capable of sending a DVI-D signal up to 400 feet over a single conventional and inexpensive Cat5e/6 cable. The SDX is superior to older DVI extenders that require special Cat6 shielded cable to go a short distance. This unit also has RS-232 extension, giving you the ability to control your displays or devices remotely.
- Extends DVI-D up to 400 feet (120m) from the source
- Data recovery for digital video
- Supports up to 1920x1200 digital video resolution
- Automatic DDC Learning
- Uncompressed Video
- RS-232 extension allows for remote control of displays
- External power adapter for transmitter and receiver unit
- Plug and play
| Brand | |
|---|---|
| Brand | Smart Audio Video Innovation |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1200 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 8 oz |
| Form Factor | Wall Mountable |
| Receiver Width | 5.13" |
| Receiver Weight (Approximate) | 8 oz |
| Receiver Height | 1" |
| Receiver Depth | 3.63" |
| Transmitter Depth | 3.63" |
| Transmitter Height | 1" |
| Transmitter Width | 5.13" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 400 ft |
| Manufacturer | Smart Audio Video Innovation |
| Video Ports | |
|---|---|
| Number of DVI Inputs | 1 |
| DVI In | Yes |
| DVI Out | Yes |
| Number of DVI Outputs | 1 |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
