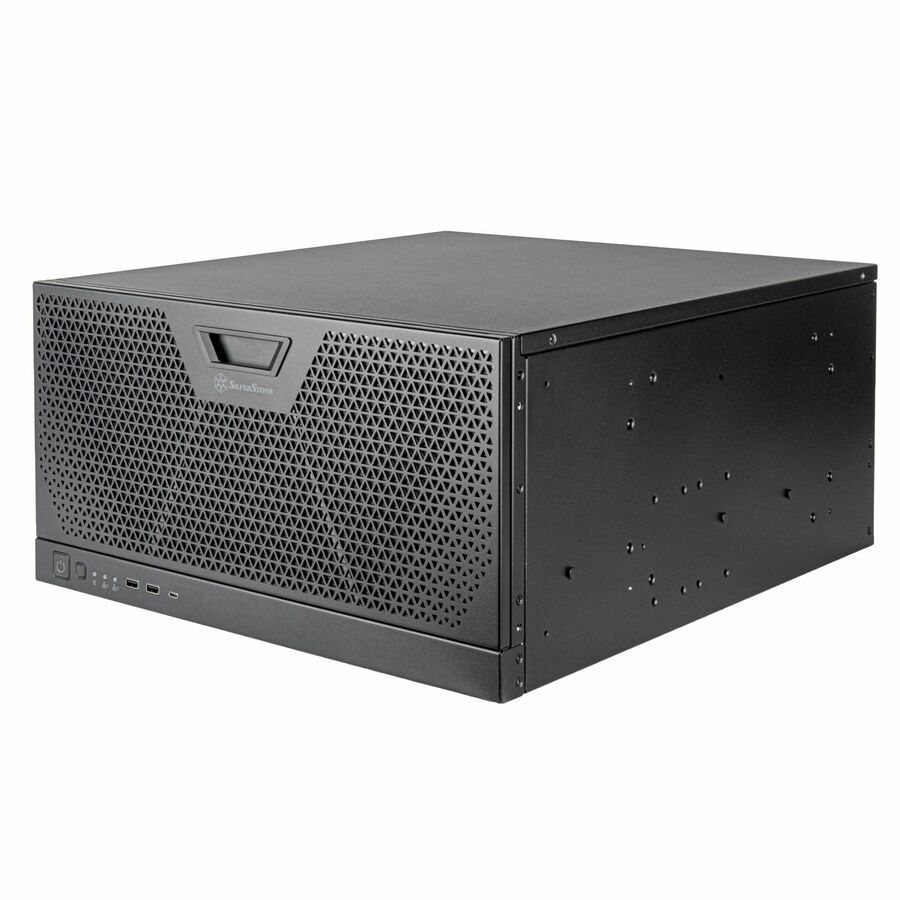

Dual-purpose chassis - Industrial / Home
Designed for industrial rackmount or high-end home system usage, which can be placed in vertical or horizontal orientations.
Unparalleled rackmount cooling performance
2 x Air Penetrator 184i PRO fans pre-installed to provide excellent system cooling.
Downward compatible with 3 x 120mm fans which also allows for triple 120mm or dual 180mm liquid cooling radiator.
Tremendous hardware versatility
An internal 3.5" drive cage allows installation of 2 x 3.5" HDDs. If it's to be left unoccupied, enables the option of installing a secondary PSU in SFX form factor
Excellent space maximization
To avoid any unforeseen damages to either the motherboard or the graphics cards, an expansion card retainer with storage drive mounting holes is included to prevent sagging of graphics cards while maximizing space utilization
Highly versatile internal layout
Server rack sliding rails can be easily fitted onto the chassis with the reserved mounting holes.
*SST-RMS05-22(sold separately)
- Supports EATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
- Conveniently install in a rack and enables operational activities on the go
| Brand | |
|---|---|
| Brand | SilverStone Technology |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 3 |
| Front USB | Yes |
| USB Port Details | 2 x USB 3.0 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 5U |
| General Features | |
|---|---|
| Motherboard Supported | EATX |
| Cooler Type | Liquid Cooler |
| Installed Fan Size | 7.09" |
| Fan Size Supported | 4.72" |
| Maximum CPU Cooler Height | 14.17" |
| Manufacturer | SilverStone Technology, Inc |
| Number of Fans Supported | 3 |
| Number of Fans Installed | 2 |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 8 |
| Drive Bays | |
|---|---|
| Number of Internal 2.5" Bays | 4 |
| Number of Internal 3.5" Bays | 2 |
| Miscellaneous | |
|---|---|
| Product Name | Server Case |
