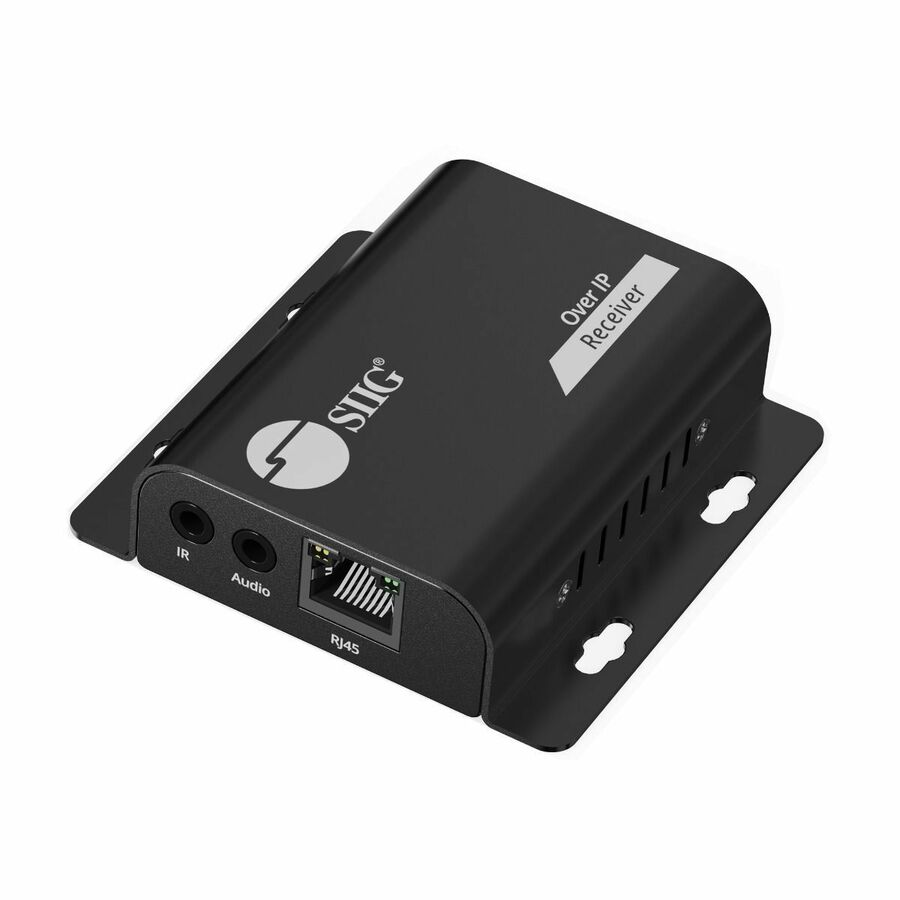

HDMI Over IP Extender with IR- 492ft (150m) - RX, Full HD 1080p Transmission with IR Control, Audio Extraction, and One-to-Many Support; A high-performance HDMI Over IP Extender designed for long-distance signal transmission up to 492ft (150m) via standard Cat5e/6 network cables. Ideal for digital signage, education, broadcasting, and commercial AV systems, the additional receiver for Part# CE-H3IP01-S1 kit
- Long-Distance HDMI Transmission - Up to 492ft (150m) Extend 1080p HDMI video and audio signals up to 492 feet over standard Cat5e/6 network cables with exceptional clarity and stability
- Stunning Full HD 1080p @ 60Hz Delivers crisp, vivid visuals with smooth frame rates - perfect for presentations, signage, and multimedia playback
- Scalable, Flexible One-to-One or One-to-Many Setups Easily expand your video distribution using standard unmanaged Gigabit network switches to create One-to-Many Configuration. One transmitter can connect to up to 253 receivers (the additional receiver for Part# CE-H3IP01-S1 kit), ensuring a flexible and future-ready solution
- Note:
- This additional RX (part# CE-H3IP11-S1) must be used with the Kit (part# CE-H3IP01-S1)
- Stereo Audio + Audio Extraction Support Supports stereo audio through HDMI and features 3.5mm output jacks on both transmitter and receiver for PCM 2CH audio extraction
- IR Remote Control Extension (20-60KHz) Easily control your source device from the receiver location with integrated IR pass-through support
- Scalable Network Protocol (TCP/IP) Designed for flexible IP-based installations. Connect one transmitter to up to 253 receivers across your network
- Secure & Flexible Installation The plug-and-play design requires no drivers or software. Durable and mountable metal housing with ESD protection ensures reliable long-term performance
| Brand | |
|---|---|
| Brand | SIIG |
| GPU / Graphics | |
|---|---|
| Graphics Modes | Full HD |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Data Link Protocols | TCP/IP |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| Number of HDMI Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1080 |
| Size / Dimensions | |
|---|---|
| Receiver Width | 2.96" |
| Receiver Weight (Approximate) | 4.16 oz |
| Receiver Height | 0.87" |
| Receiver Depth | 3.04" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 492.13 ft |
| Supported Video Modes | 1080i |
| Manufacturer | SIIG, Inc |
| Misc Ports | |
|---|---|
| Remote (IR) Input | 1 |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
| Miscellaneous | |
|---|---|
| Product Name | 1080p @ 60Hz , One-to-Many Support , IR Control , Audio Extraction , HDMI Over IP Extender with IR - 492ft (150m) - Receiver only |
